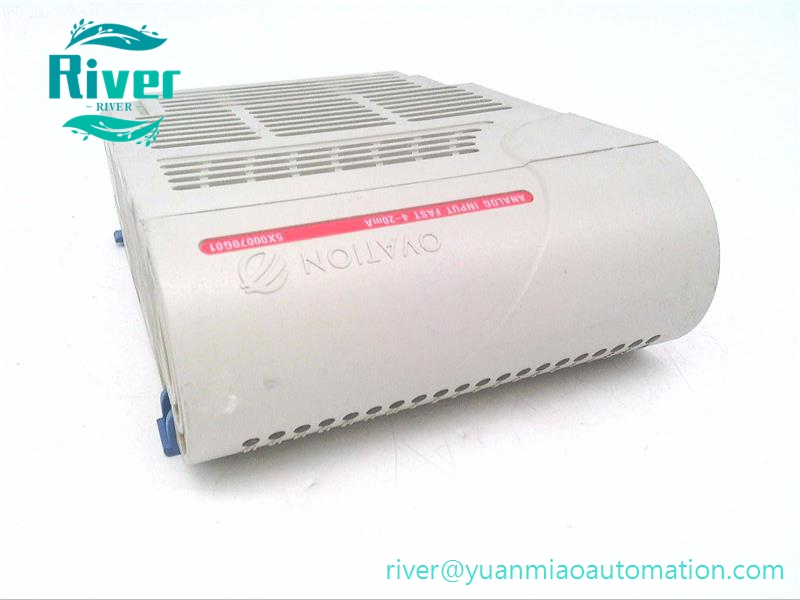

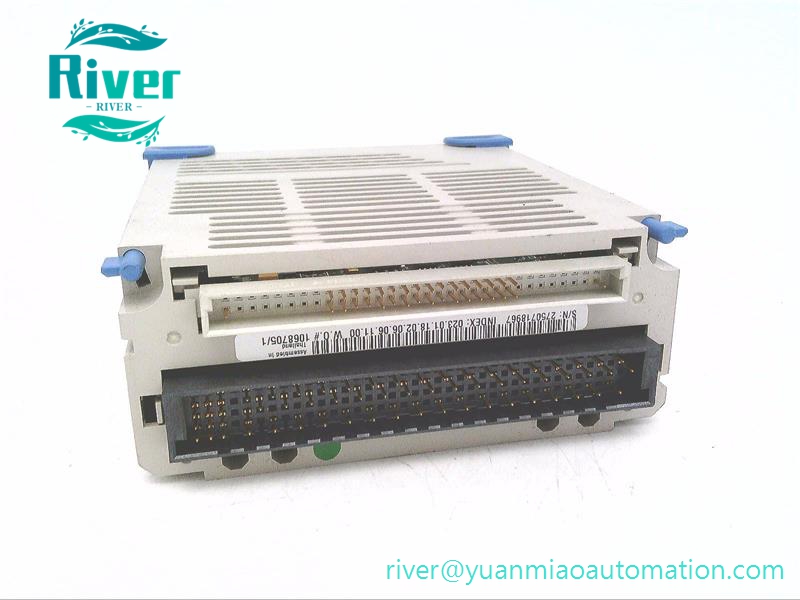

Emerson 5X00070G01 Ovation 8-channel high-speed AI module, supports 4–20mA, independent channel isolation, for fast loop control in power plant DCS.

Product Overview

• Part No: 5X00070G01
• Brand: EMERSON Ovation / Westinghouse

• Category: 8-Channel High Speed Analog Input Module 5X00070G01 is high-speed analog input I/O module for Ovation DCS. It collects 8-channel 4–20mA signals from field transmitters. Each channel adopts independent galvanic isolation, with 14-bit high precision A/D conversion and fast sampling rate. Built-in channel fault detection and digital filtering. Hot-swappable for online maintenance. Suitable for fast response closed-loop control in thermal power plants.

•


Core Features

• 8 isolated analog input channels
• Input signal: standard 4–20mA loop
• 14-bit resolution, high-speed signal sampling
• Per-channel galvanic isolation to suppress interference
• Open circuit detection and module self-diagnostics

• Hot-swappable design

•


Technical Specifications

• Operating Temperature: 0°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C

• Protection Class: IP20 installed inside control cabinet

•


Compatibility & Application

• Compatible with Ovation I/O rack and OCR series controllers
• Used for boiler, turbine fast process variable acquisition and closed-loop regulation
