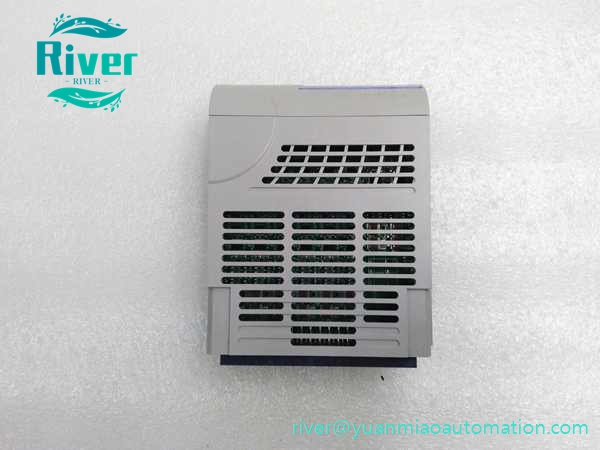

Emerson 5X00594G01 Ovation 16-channel analog input module, supports 4–20mA & voltage signals, high precision acquisition, hot-swappable DCS spare.

Product Overview

• Part No: 5X00594G01
• Brand: EMERSON Ovation / Westinghouse

• Category: 16-Channel Analog Input Module 5X00594G01 is high-density AI module for Ovation DCS. It collects 16-channel 4–20mA and voltage analog signals from field transmitters. Adopts high-precision A/D conversion, built-in channel diagnostics and open-circuit detection. Hot-swap design supports online replacement without rack halt. Widely used for pressure, flow, temperature signal collection in thermal power plants.

•


Core Features

• 16-channel analog input
• Supports 4–20mA, 0–10VDC multi-range signals
• Per-channel fault diagnosis and LED status indication
• Galvanic isolation between field and backplane

• Hot-swappable plug-in installation

•


Technical Specifications

• Resolution: 16 bit
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C

• Protection Class: IP20 inside control cabinet

•


Compatibility & Application

• Compatible with Ovation I/O rack and OCR3000/OCC100 controllers
• Applied for boiler, turbine and auxiliary system process variable monitoring
