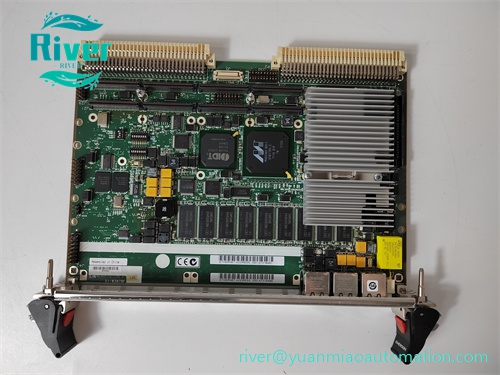

Emerson MVME61006E-0163R rugged 6U VME single-board computer, MPC7457 1.267GHz PowerPC CPU, dual Gigabit Ethernet, extended temperature, for real-time control systems.

Product Overview

• Part No: MVME61006E-0163R
• Brand: Emerson (Former Motorola / Artesyn)

• Category: 6U Single-Width VME64x Single Board Computer (SBC) MVME61006E-0163R belongs to MVME6100 series rugged embedded CPU board. Equipped with MPC7457 PowerPC processor and Tsi148 VME bridge, supporting high-speed 2eSST VME transmission. The "6E" version supports wide temperature and conformal coating, designed for harsh mission-critical real-time control. Widely used in industrial control, test equipment, aerospace and legacy VME system upgrades.

•


Core Features

• Processor: MPC7457 PowerPC @1.267GHz with AltiVec coprocessor
• Memory: 512MB ECC DDR SDRAM, onboard 128MB Flash
• VME Interface: Tsi148 bridge, support VME64 / 2eSST up to 320MB/s
• Communication: Dual front-panel Gigabit Ethernet, RS232 serial port
• Expansion: 2 × PMC mezzanine slots
• Rugged 6E version: extended temperature range, conformal coating

• Onboard watchdog timer, battery-backed NVRAM & RTC

•


Technical Specifications

• Form Factor: 6U single slot VME Eurocard
• Operating Temp: -40℃ ~ +71℃
• Power supply: Powered via VME backplane P1/P2
• Protection Class: IP20 inside cabinet

• Lifecycle: EOL, mainly supplied as spare parts for existing systems

•


Compatibility & Application

• Works with standard VME64x chassis and peripheral modules
• Applications: turbine control, test & measurement, defense embedded system, legacy industrial automation
