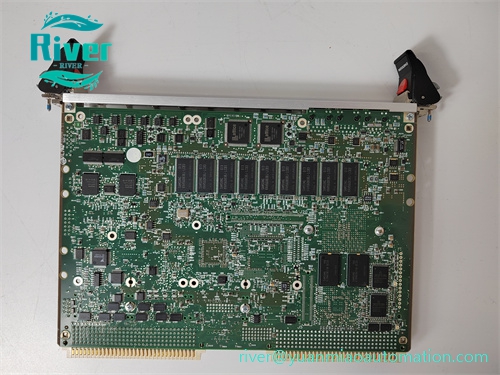

Emerson MVME61006E-0163 rugged 6U VME single-board computer, MPC7457 1.267GHz PowerPC CPU, 512MB ECC DDR, dual Gigabit Ethernet, IEEE ejector handle, extended temperature 6E variant for real-time embedded control.

Product Overview

• Part No: MVME61006E-0163
• Brand: Emerson (Former Motorola Computer Group)

• Category: 6U Single-Width VME64x Single Board Computer (SBC) MVME61006E-0163 belongs to MVME6100 rugged embedded CPU family. Powered by MPC7457 PowerPC processor with AltiVec coprocessor, integrated Tsi148 VME bridge supporting VME64 and 2eSST high-speed transmission. The 6E version supports extended operating temperature range. "-0163" stands for 512MB DDR memory and IEEE ejector handle. Widely deployed in legacy turbine control, test equipment and mission-critical real-time industrial systems. Suffix "R" version is conformal coated; this model has no conformal coating.

•


Core Features

• Processor: MPC7457 PowerPC @1.267 GHz
• Memory: 512MB ECC DDR SDRAM, onboard 128MB Flash
• VME Interface: Tsi148 bridge, VME64 / 2eSST up to 320MB/s

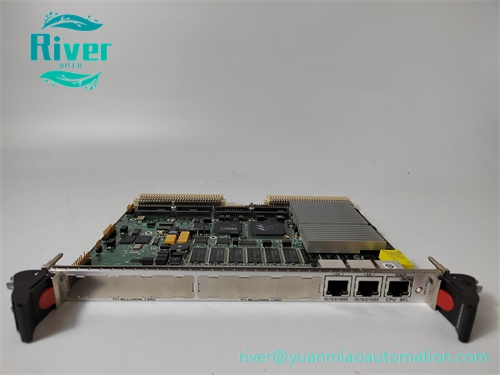

• Front panel I/O: Dual Gigabit Ethernet, RS232 serial port, USB
• Expansion: 2 × PMC mezzanine slots
• IEEE ejector handle, 6E wide-temperature industrial grade

• Onboard watchdog timer, battery-backed NVRAM and RTC

•


Technical Specifications

• Form Factor: 6U single slot VME Eurocard
• Operating Temperature: -40℃ ~ +71℃
• Powered via VME backplane P1/P2 connector
• Protection Class: IP20 inside cabinet

• Lifecycle: EOL, supplied as spare parts for existing installations

•


Compatibility & Application

• Compatible with standard VME64x chassis and peripheral modules
• Applications: turbomachinery control, measurement systems, embedded industrial real-time control platforms
