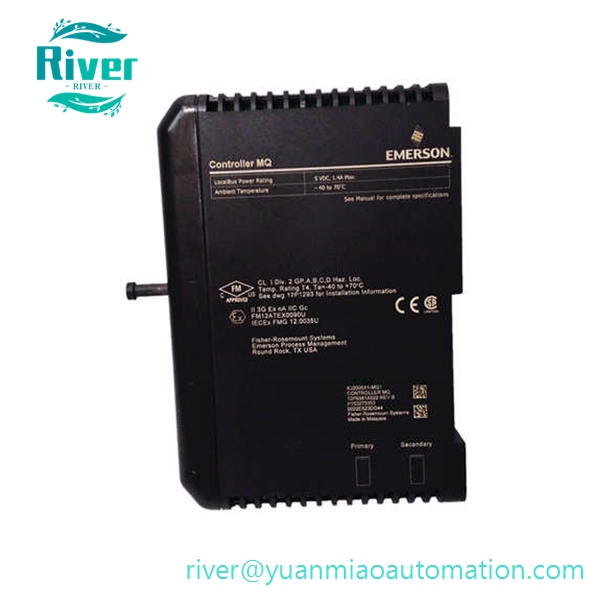

Emerson VE3008 (KJ2005X1-MQ1, 12P6381X022) DeltaV MQ control engine, executes real-time process control logic, supports simplex and 1:1 redundant deployment for DeltaV distributed control system.

Product Overview

• Part No: VE3008, CE3008, KJ2005X1-MQ1, 12P6381X022
• Brand: EMERSON

• Category: DeltaV MQ Controller VE3008 MQ Controller acts as core processing unit of DeltaV DCS. It executes continuous control, sequence logic and interlock algorithms, manages data exchange between LocalBus I/O subsystem and control network. It supports simplex or redundant pairing for bumpless automatic failover. Non-volatile onboard memory retains complete control strategy upon power loss. Compatible with CHARM I/O and traditional DeltaV I/O modules, supports transparent HART tunneling for smart field device management. Hot-swappable for online replacement without system shutdown.Note: 12P6381X022 and 12P6381X042 are different revision variants of KJ2005X1-MQ1 VE3008 MQ Controller.

Core Features

• Supports simplex and 1:1 redundant architecture
• Onboard nonvolatile memory to preserve control configuration
• HART tunneling for remote diagnostics of HART field instruments
• Automatic I/O detection and self-addressing
• Hot-swappable module design
• Supports batch control, advanced process control and model predictive control

• Front panel LED indicators for power, fault, run and redundant status

•


Technical Specifications

• LocalBus Power: +5 VDC, max 1.4 A
• Operating Temperature: -40°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C
• Humidity: 5%–95% non-condensing
• Protection class: IP20 inside control cabinet

• Weight: approx. 0.33 kg

•


Compatibility & Application

• Works with DeltaV I/O carrier, CHARM I/O and standard DeltaV I/O modules
• Widely applied in oil & gas, chemical, power generation and pharmaceutical process plants
