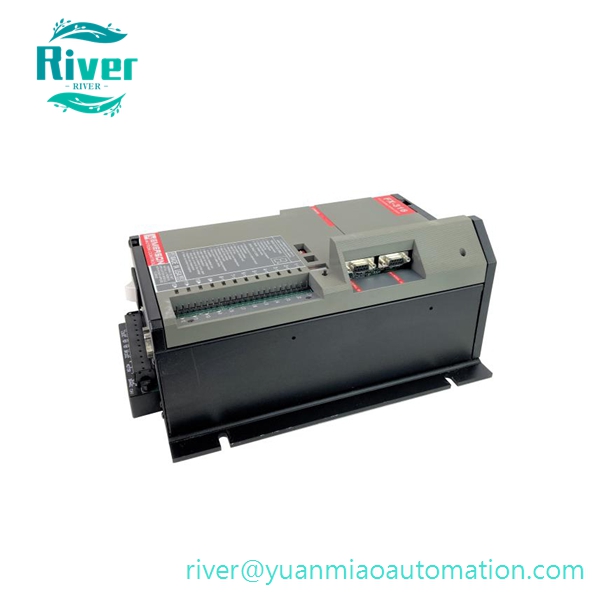

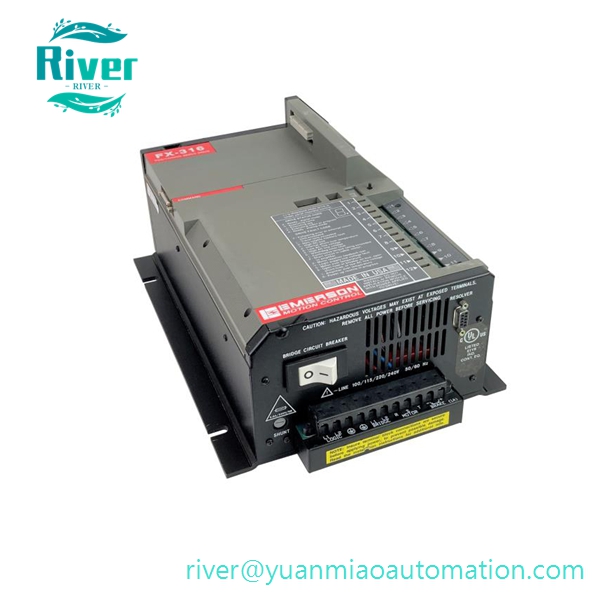

FX‑316 positioning servo drive module for industrial motion control system, high‑precision servo control unit, reliable replacement spare part for automation equipment.

Product Overview

• Part No: FX‑316
• Brand: EMERSON
• Category: Positioning Servo Drive Module

FX‑316 is a dedicated positioning servo drive module for industrial motion control applications. It delivers closed‑loop position control for servo motors, processes position command signals and outputs drive signals to actuate mechanical equipment. Built‑in position monitoring and fault diagnosis functions ensure stable motion performance. Widely used for retrofitting and repairing existing industrial automation machinery.

Core Features

• High‑precision closed‑loop positioning control
• Support servo motor position and speed regulation
• Built‑in fault diagnosis and alarm output
• Multi‑mode position command configuration
• LED indicators for power, run and fault status

• Rugged structure for harsh industrial operating environment

•


Technical Specifications

• Operating temperature: -40°C ~ +70°C
• Storage temperature: -40°C ~ +85°C
• Humidity: 5%–95% non‑condensing
• Protection class: IP20 inside control cabinet

• Weight: approx. 0.42 kg

•


Compatibility & Application

• Compatible with matched servo motor and control system
• Widely applied in machinery manufacturing, material handling and process‑related motion control equipment
