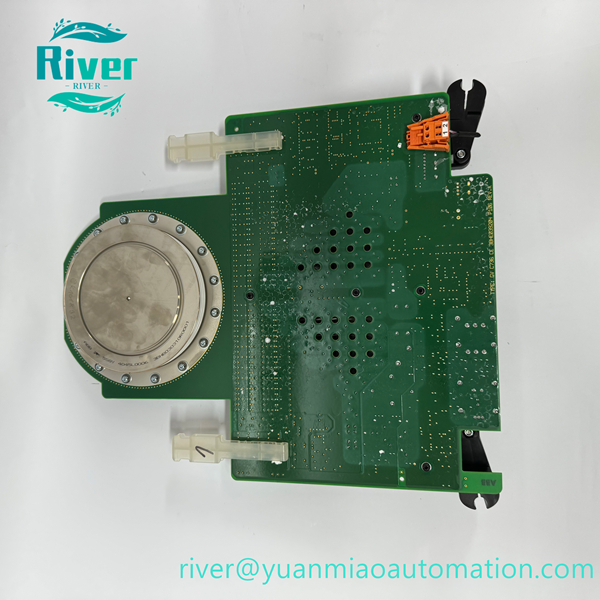

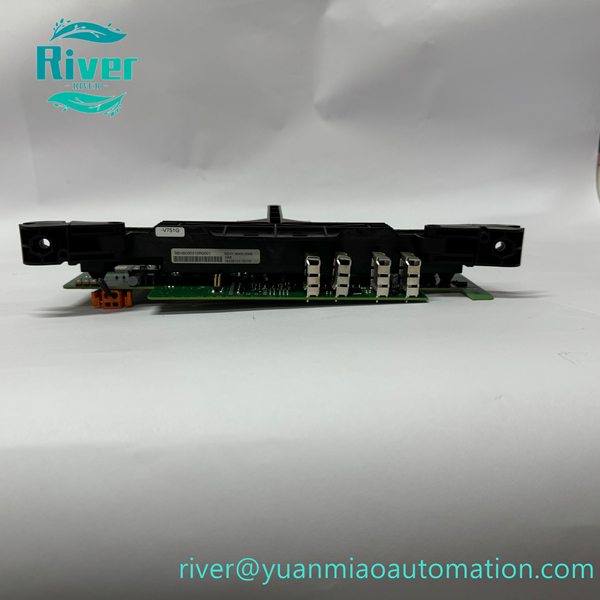

ABB GVC736CE101 gate control unit, part numbers 3BHE039203R0101,3BHB030310R0001,5SHY4045L0006, used for high‑power IGCT converter drive system.

Product Overview

• Part No: GVC736CE101, 3BHE039203R0101, 3BHB030310R0001, 5SHY4045L0006
• Brand: ABB
• Category: IGCT Gate Control Unit

• GVC736CE101 is an IGCT gate control unit designed for high‑power medium‑voltage converter systems. It works with 5SHY4045L0006 IGCT thyristor to realize precise gate trigger, protection and status feedback for power semiconductor devices. Widely used in industrial drives, static frequency converters and power quality equipment.

•


Core Features

• • Accurate trigger and protection control for IGCT power device
• • Built‑in device fault detection and status monitoring function
• • High anti‑interference performance for heavy industrial environment
• • Fast fault response to protect power semiconductors

• • Standard rack‑mount installation, easy replacement and maintenance

•


Technical Specifications

• • Compatible Device: 5SHY4045L0006 IGCT
• • Application: Medium‑voltage high‑power converter
• • Mounting: Cabinet rack installation
• • Industrial operating temperature range

• • Complete signal feedback for system diagnosis

•


Compatibility

• Matched with ABB medium voltage drive converter assemblies
• Suitable for industrial power conversion, energy conversion and traction related systems
