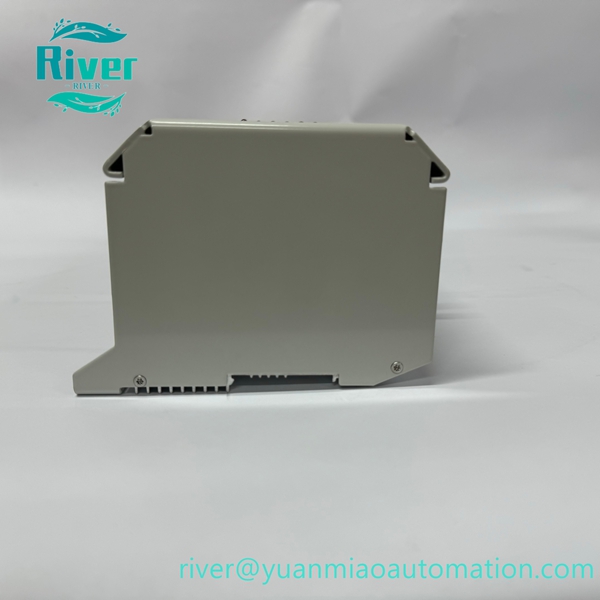

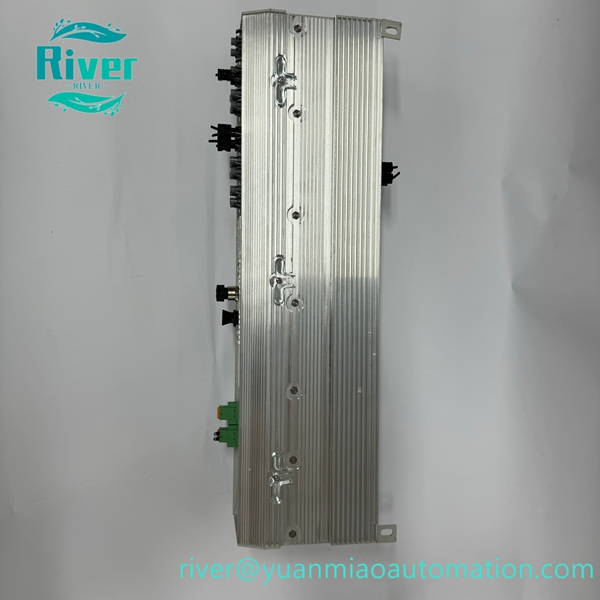

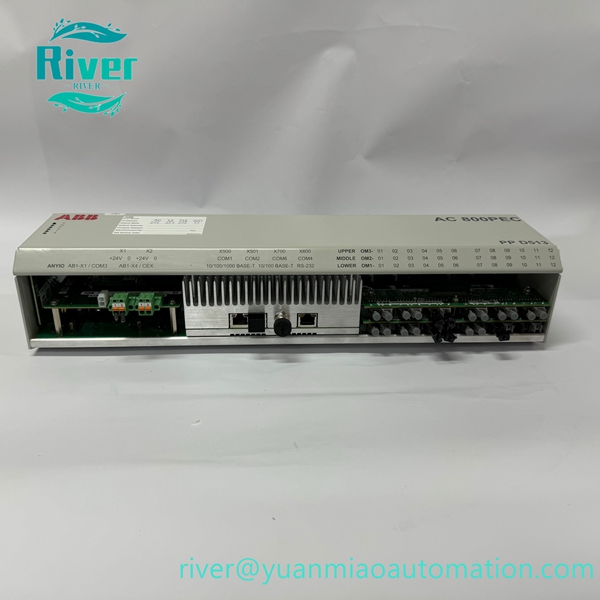

ABB PPD513A0E110110 (3BHE039724R0E41) controller module for AC800PEC platform, high‑speed real‑time processing for power conversion and excitation control systems.

Product Overview

• Part No: PPD513A0E110110, 3BHE039724R0E41
• Brand: ABB
• Category: AC800PEC Processor Module

• PPD513A0E110110 is a high‑performance main processor module of ABB AC800PEC control system. It executes real‑time control algorithms for power electronics equipment, handles signal acquisition, logic computation and data communication. Widely used in generator excitation, medium‑voltage converters and industrial power control applications.

•


Core Features

• • High‑speed real‑time processing for power electronic control
• • Multiple built‑in industrial communication interfaces
• • Supports hot‑standby redundant operation for high availability
• • Integrated hardware self‑diagnosis and fault reporting
• • Rack‑mount design for AC800PEC chassis, convenient replacement

• • Strong anti‑interference performance for harsh industrial environment

•


Technical Specifications

• • Platform: ABB AC800PEC
• • Power Supply: 24 VDC
• • Mounting: Rack slot installation
• • Protection Class: IP20
• • Operating Temperature: 0℃ ~ +60℃

• • Application: Generator excitation, medium‑voltage power conversion

•


Compatibility

• Designed for ABB AC800PEC system hardware
• Compatible with UNITROL excitation and medium‑voltage drive assemblies
• Supports connection to ABB 800xA DCS automation platform
