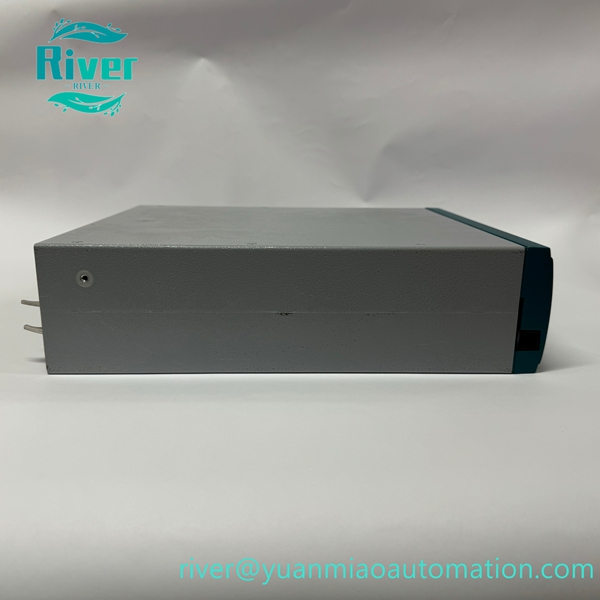

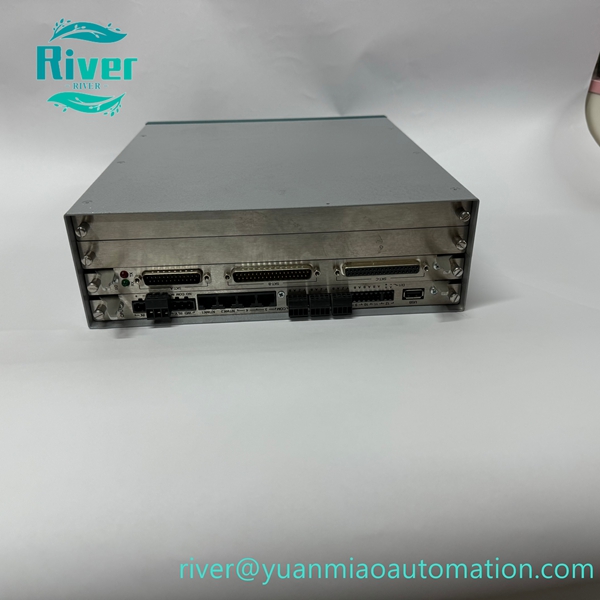

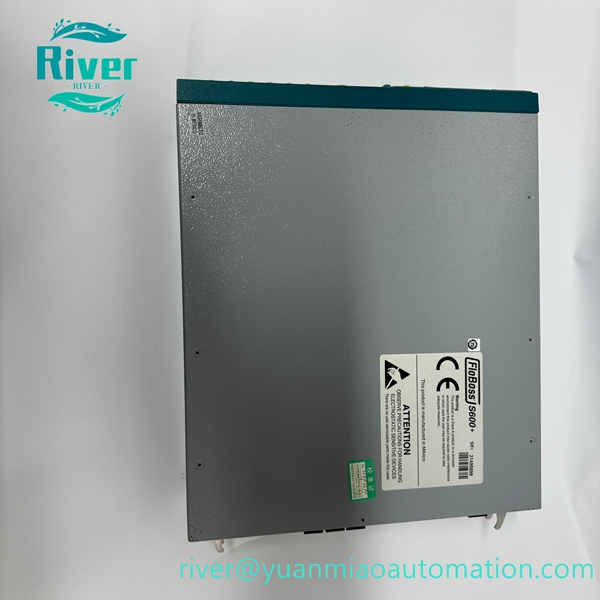

Emerson FloBoss S600+ multi‑stream flow computer, supports gas & liquid hydrocarbon metering for custody transfer, batch loading and meter proving applications.

Product Overview

• Part No: FloBoss S600+
• Brand: EMERSON
• Category: Fiscal Flow Computer

• FloBoss S600+ is a high‑performance panel‑mount flow computer for hydrocarbon gas and liquid measurement. It supports multi‑stream and multi‑station configuration, performs 64‑bit high‑precision flow calculation complying with AGA, API, ASTM standards. Widely used in pipeline custody transfer, batch loading and meter proving within oil and gas industry.

•


Core Features

• • Multi‑stream measurement, up to 10 streams for mixed gas‑liquid metering
• • 64‑bit double‑precision floating‑point calculation for fiscal‑grade accuracy
• • Tri‑reg redundant memory storage to secure cumulative flow data
• • Rich interfaces: Ethernet, RS232/RS485 serial ports, HART, USB 2.0
• • Supports Coriolis, ultrasonic, turbine, orifice and other mainstream flow meters
• • Built‑in LCD keypad for local configuration, alarm and event logging

• • Complies with AGA, ISO, GPA, GERG, API, ASTM international standards

•


Technical Specifications

• • Mounting: Panel‑mount installation
• • Power Supply: 24 VDC / 48 VDC
• • Operating Temperature: -20℃ ~ +60℃
• • Communication: Dual Ethernet, RS‑232, RS‑485, 12‑channel HART, USB2.0
• • Application: Natural gas pipeline, crude oil, refined products, LPG custody transfer

• • Display: 8‑line LCD with keypad operation

•


Compatibility

• Interfaces with Coriolis, ultrasonic, turbine, orifice, positive displacement flow meters
• Supports Modbus TCP / RTU for DCS and SCADA system integration
• Backward compatible with FloBoss S600 configuration resources
