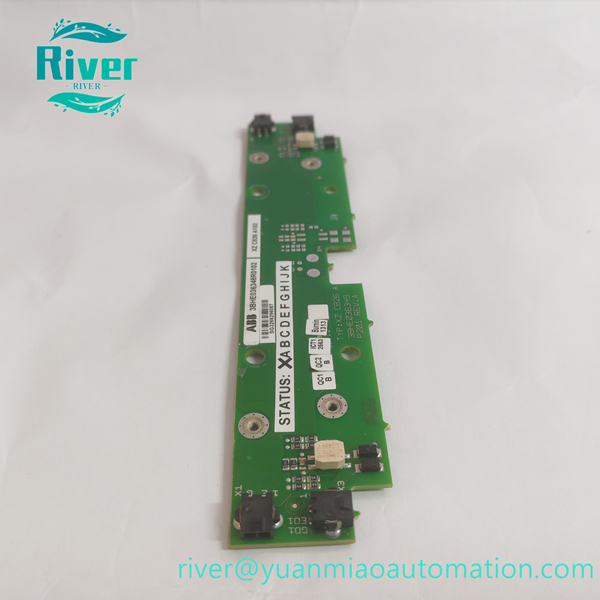

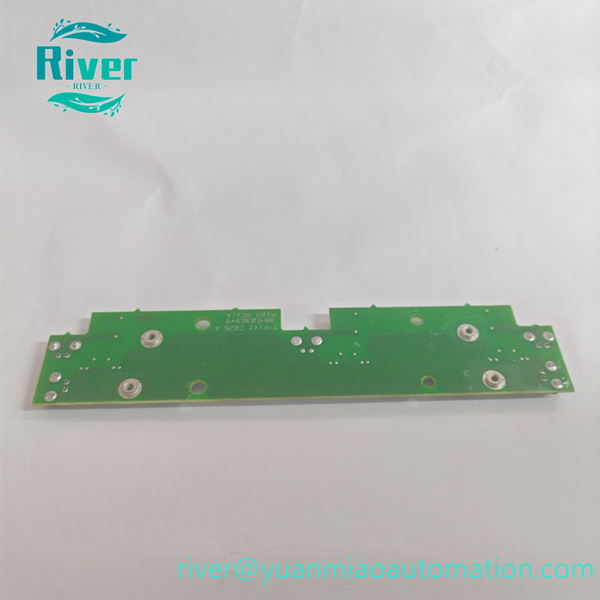

ABB XZC826A102 (3BHE036348R0102) status indicator interface board for AC800PEC system, LED status display for power electronic control assemblies.

Product Overview

• Part No: XZC826A102, 3BHE036348R0102
• Brand: ABB
• Category: AC800PEC Status Interface Board

• XZC826A102 is a status indicator interface board designed for ABB AC800PEC power electronic control system. It provides multi‑channel LED status indication for module health, fault alarms and operating states. It transfers internal status signals from main controller and peripheral units for on‑site visual diagnosis. Widely applied in generator excitation, medium‑voltage converter and energy conversion equipment.

•


Core Features

• • Multi‑LED status indicator for module operating and fault conditions
• • Signal routing and status feedback between internal system units
• • Compact plug‑in PCB structure for chassis internal installation
• • Supports quick on‑site fault visual diagnosis
• • Optimized EMC performance for power‑electronic cabinet environment

• • Simple replacement as spare part for system maintenance

•


Technical Specifications

• • Platform: ABB AC800PEC
• • Power Supply: 24 VDC
• • Mounting: Internal chassis slot installation
• • Protection Class: IP20
• • Operating Temperature: 0℃ ~ +60℃

• • Application: Generator excitation, medium‑voltage power converter, industrial power control

•


Compatibility

• Matches AC800PEC series processor and I/O modules
• Fits UNITROL excitation and PCS6000 medium‑voltage drive assemblies
• Works within ABB 800xA automation system environment
