Original ABB PCD237A101 (PC D237 A101) 3BHE028915R0101 control board for AC800PEC system, high‑speed real‑time control for generator excitation and medium‑voltage drive spare parts.

Product Overview

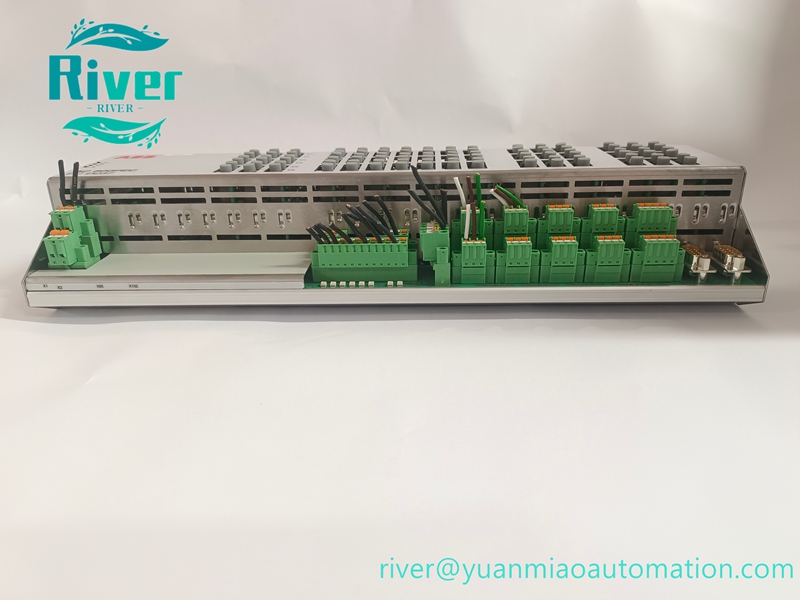

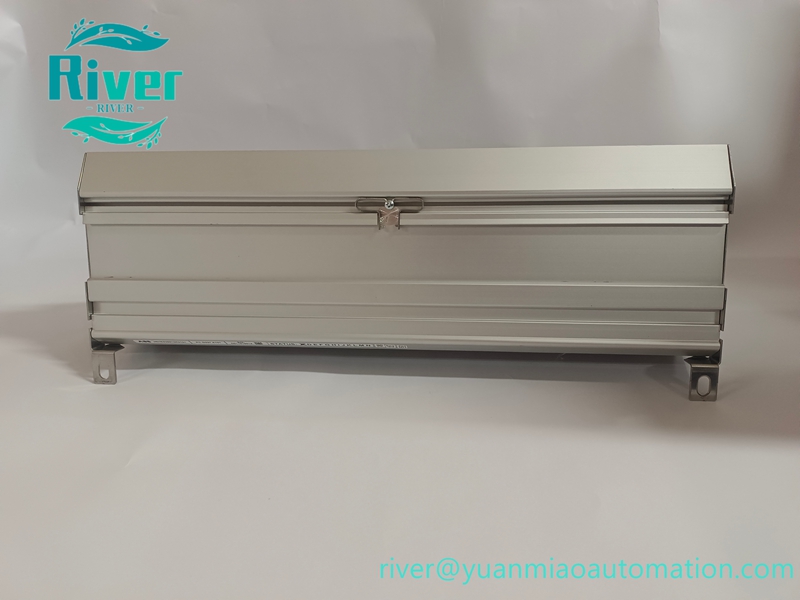

PCD237A101 (also marked PC D237 A101), part number 3BHE028915R0101, is ABB AC800PEC main controller board made in Sweden. Used for generator excitation, medium‑voltage drive and wind converter as replacement spare part, works with matching rack, power supply and I/O modules.

Key Features

• Sub‑millisecond high‑speed real‑time closed‑loop control
• Multiple high‑speed communication interfaces
• Industrial wide‑temperature and anti‑EMI design
• Rack slot‑mount for AC800PEC chassis

• Supports parameter configuration and commissioning

•


Technical Specifications

• Brand: ABB
• Model: PCD237A101 (PC D237 A101)
• Part No: 3BHE028915R0101
• Series: AC 800PEC
• Country of Origin: Sweden
• Operating Temp: 0℃ ~ +60℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Protection: IP20 (cabinet installation)

•


Compatibility

Compatible with ABB AC800PEC system. Requires matching rack, power supply and I/O boards. Professional configuration needed after replacement.
