Original MTL 8502‑BI‑DP BIM bus interface module, connects MTL8000 I/O system to Profibus‑DP network, supports HART data transmission for process automation spare parts.

Product Overview

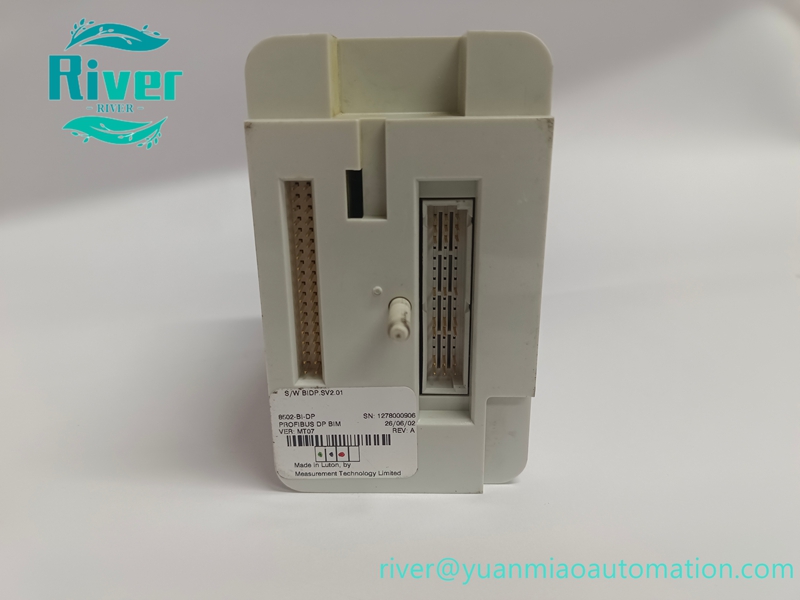

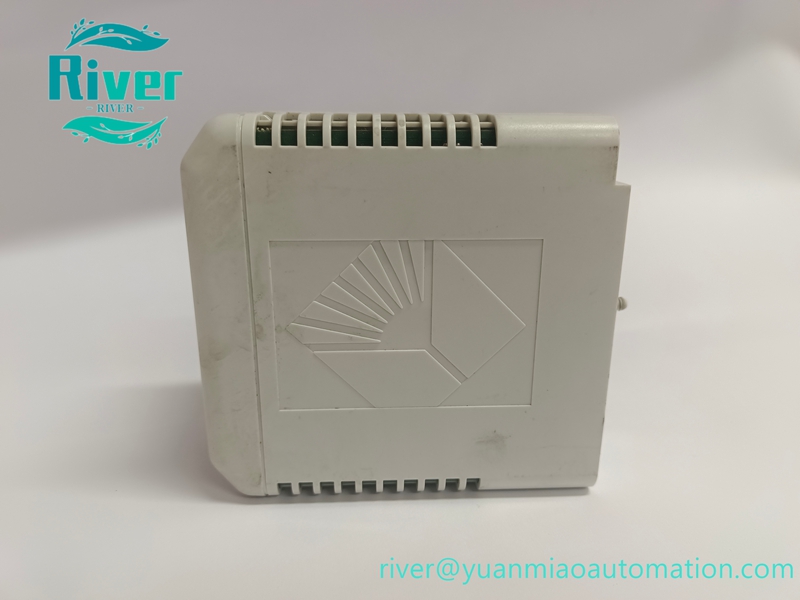

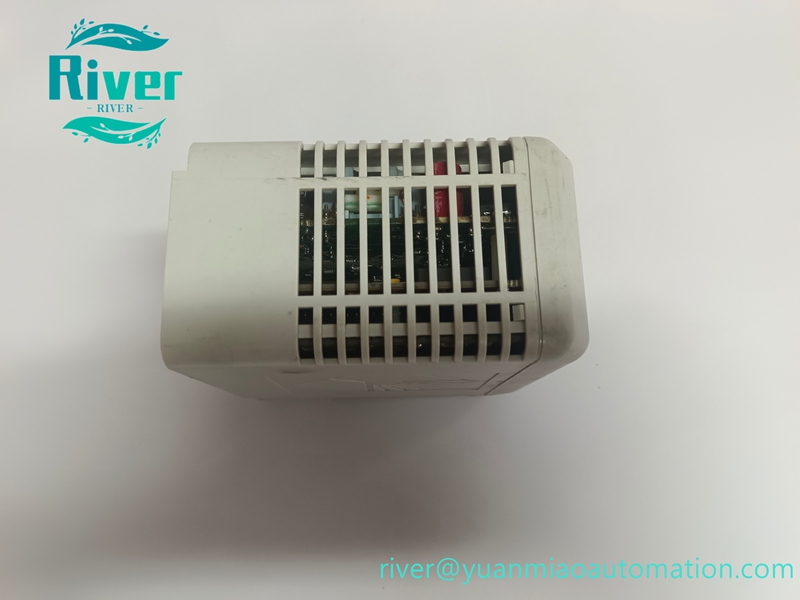

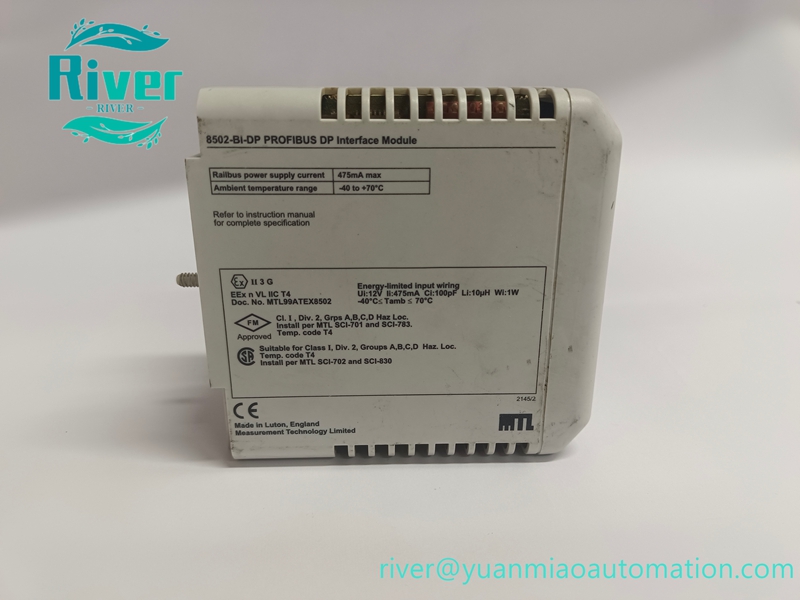

8502‑BI‑DP is MTL bus interface module (BIM), made in United Kingdom. It acts as communication gateway between MTL 8000 remote I/O system and Profibus‑DP master host. Supports HART variable transmission, widely used as maintenance spare part for oil & gas and chemical process automation.

Key Features

• Connects MTL8000 I/O nodes to Profibus‑DP host system
• Supports maximum 24 connected I/O modules
• HART process variables transmitted over Profibus‑DP
• Extended module & channel diagnostic function
• Communication baud rate up to 6 Mbaud

• DIN‑rail mounting, LED status indicator for fault check

•


Technical Specifications

• Brand: MTL
• Model: 8502‑BI‑DP
• Series: 8000 Series
• Country of Origin: United Kingdom
• Protocol: Profibus‑DP, HART
• Power Supply: 24VDC
• Operating Temp: ‑20℃ ~ +60℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Protection: IP20 (cabinet installation)

•


Compatibility

Compatible with MTL 8000 series remote I/O modules, works with Profibus‑DP master controllers. Parameter configuration is required after replacement.
