Original ABB GVC736BE101 gate drive unit 5SHY3545L0014 3BHE023784 3BHE019719R0101, spare part for ACS6000 medium‑voltage converter power control.

Product Overview

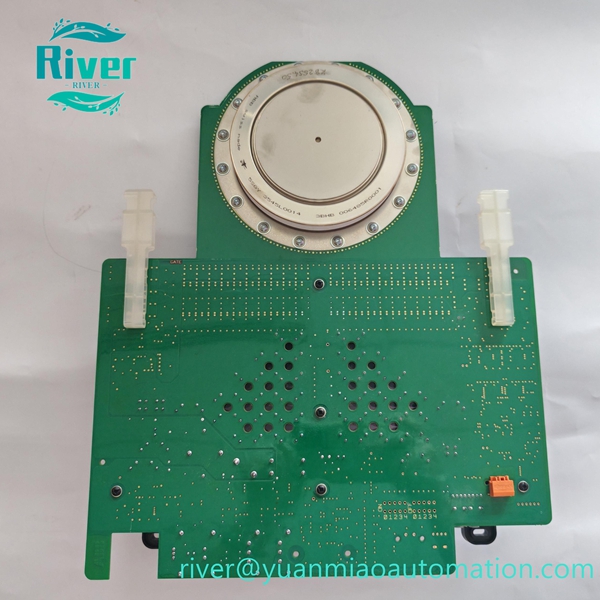

GVC736BE101 (5SHY3545L0014 / 3BHE023784 / 3BHE019719R0101) is ABB IGCT gate drive control unit, Switzerland origin. It serves as signal interface between low‑voltage control system and high‑power IGCT semiconductor device for ABB ACS6000 medium‑voltage converters, widely used as maintenance spare part for power plant and heavy‑industry drive equipment.

Key Features

• Precise gate trigger signal generation for IGCT power device
• Built‑in over‑current, short‑circuit and over‑temperature protection
• Galvanic isolation for high‑voltage working environment
• Compact modular design for converter cabinet installation

• Real‑time status monitoring and fault feedback function

•


Technical Specifications

• Brand: ABB
• Model: GVC736BE101
• Code: 5SHY3545L0014
• Part No: 3BHE023784, 3BHE019719R0101
• Country of Origin: Switzerland
• Control Input: 24VDC
• Operating Temp: 0℃ ~ +70℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Protection: IP20 (cabinet installation)

•


Compatibility

Compatible with ABB ACS6000 medium‑voltage converter series. Matching power unit and control system are required, professional commissioning is necessary after replacement.
