Original Bently Nevada RIM rack interface module for 3500 machinery protection rack.

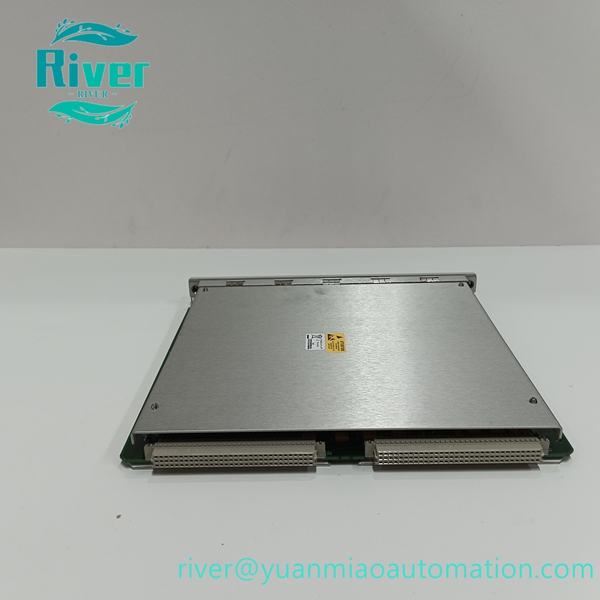

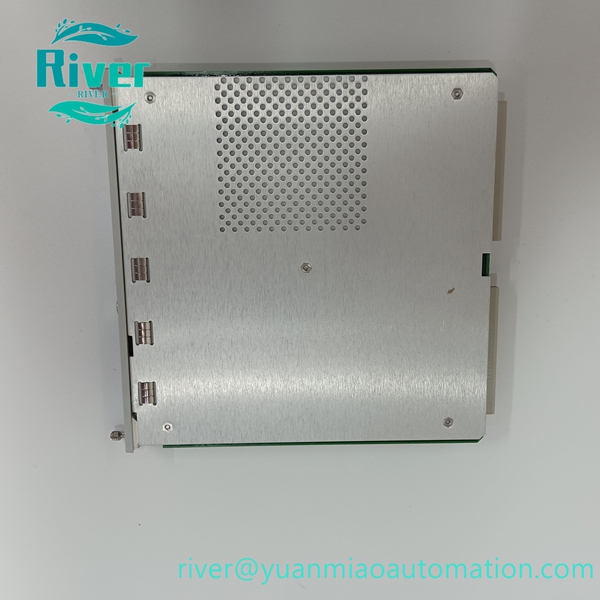

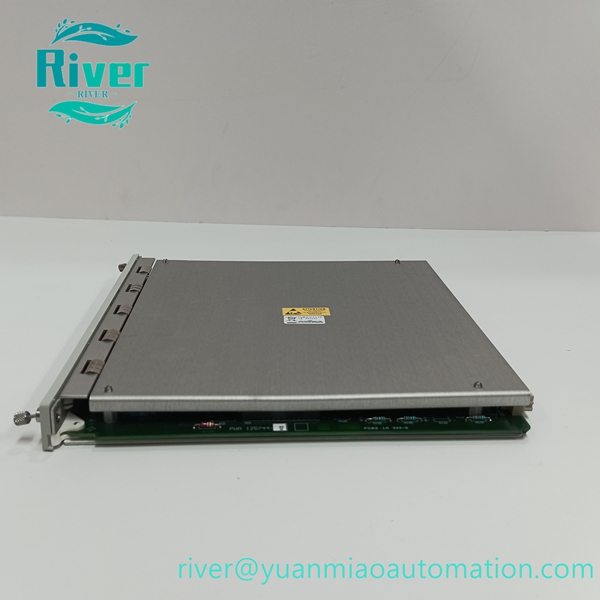

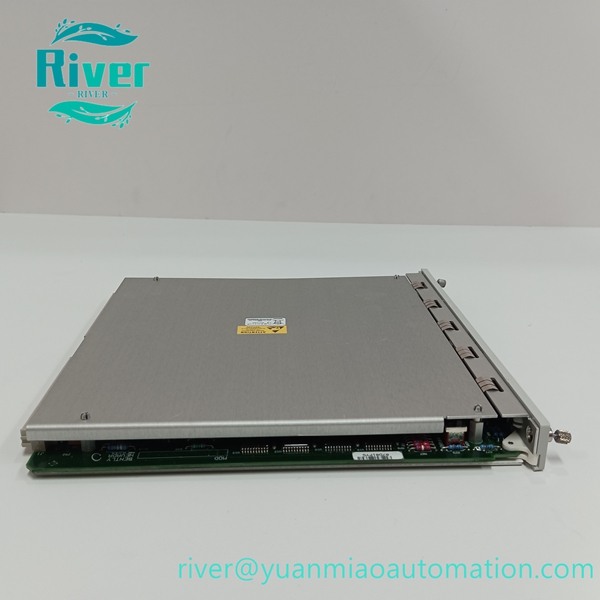

Product Overview

3500‑20 is Rack Interface Module (RIM) for Bently Nevada 3500 machinery protection rack. It serves as main communication and configuration gateway for the whole rack, executes rack‑level self‑diagnosis, data gathering and external serial communication. Must be installed in slot 1 adjacent to power supply, one module per rack. Widely used as maintenance spare part for gas turbine, steam turbine and compressor rotating‑machinery protection systems

Key Features

• Acts as main gateway for 3500 rack configuration and data acquisition
• RS232 / RS422 serial ports for connecting configuration tool and upper‑level system

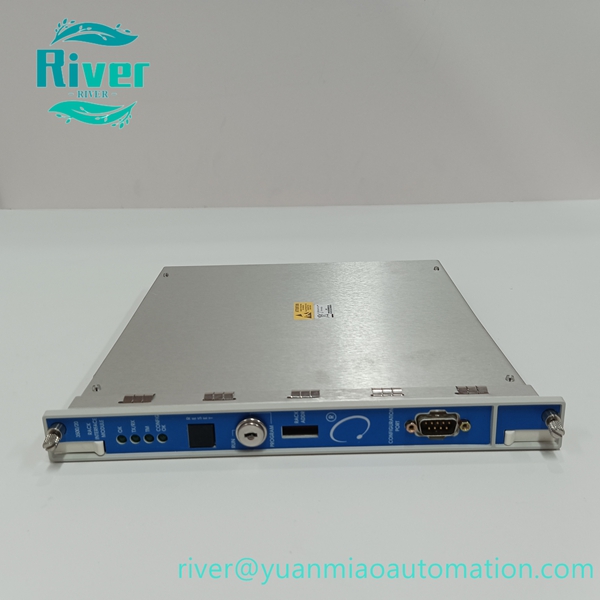

• Front‑panel LED indicators for OK, TX/RX, CONFIG‑OK and Trip‑Multiply status
• Built‑in rack‑level self‑diagnosis and fault relay output
• Supports TMR triple‑modular‑redundancy system application

• Hot‑swappable rack‑mount module for convenient on‑site replacement

•


Technical Specifications

• Brand: Bently Nevada (Baker Hughes)
• Model: 3500‑20
• Module Type: Rack Interface Module (RIM)
• Communication: RS232 / RS422 serial interface
• Power Consumption: 4.75W typical
• Power Supply: Powered via rack backplane
• Operating Temp: ‑30℃ ~ +65℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Slot‑1 position inside 3500 rack

•


Compatibility

Fits Bently Nevada 3500 series rack system. Rack configuration download is required after module replacement.
