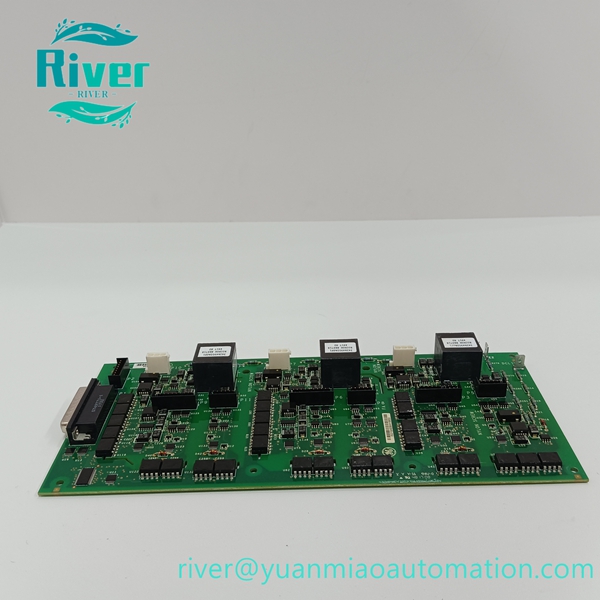

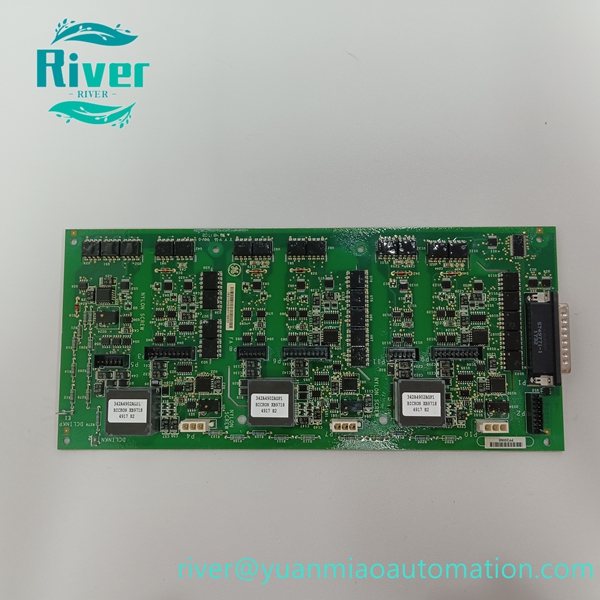

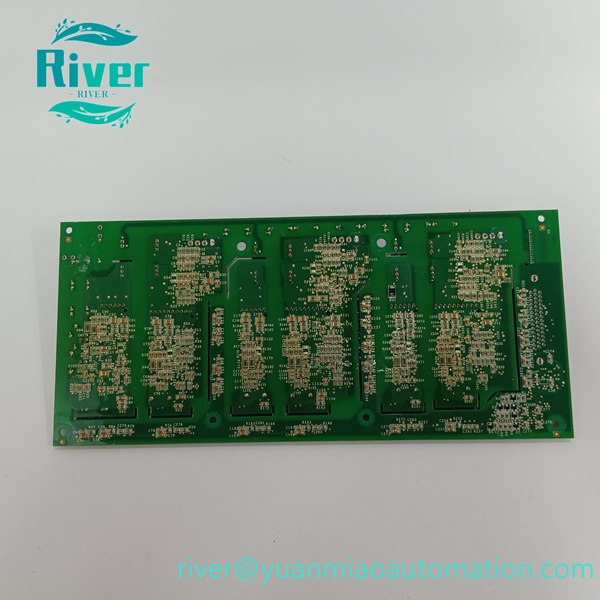

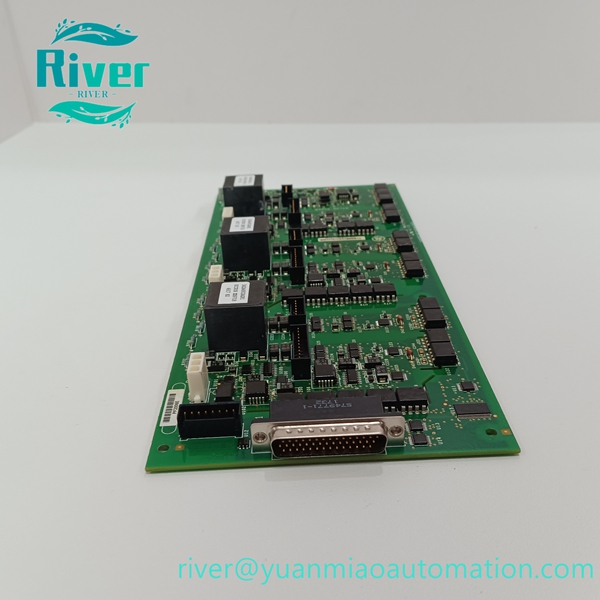

Original GE AEBI bridge interface card for Mark VIe turbine control system.

Product Overview

IS210AEBIH1BED is AEBI analog excitation bridge interface card for GE Speedtronic Mark VIe turbine control system. It completes conditioning, isolation and conversion of precision analog signals from excitation system sensors, transmits valid measurement data to main controller for generator voltage regulation and protection logic. Conformal coated PCB ensures stable performance in power‑plant cabinet environment. Widely used as maintenance spare part for gas‑steam turbine and generator control systems.

Key Features

• High‑precision analog signal conditioning for excitation‑related measurement signals
• Galvanic isolation design, effectively suppresses industrial electromagnetic interference
• On‑board self‑diagnosis with LED indicators for fault quick‑location
• Conformal coated PCB, anti‑vibration and anti‑humidity for power‑plant site
• VME‑format plug‑in module, supports hot‑swap on‑site maintenance

• Works cooperatively with AEPA series I/O boards for signal interaction

•


Technical Specifications

• Brand: GE
• Model: IS210AEBIH1BED
• Module Type: AEBI Bridge Interface Card
• System Platform: Mark VIe Speedtronic
• Form Factor: 6U VME rack‑mount PCB
• Power Supply: Backplane powered
• Weight: Approx 0.32kg
• Operating Temp: ‑40℃ ~ +70℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Plug‑in inside Mark VIe control rack

•


Compatibility

Compatible with GE Mark VIe turbine control system. Firmware matching, signal loop inspection and system configuration download are required after replacement.
