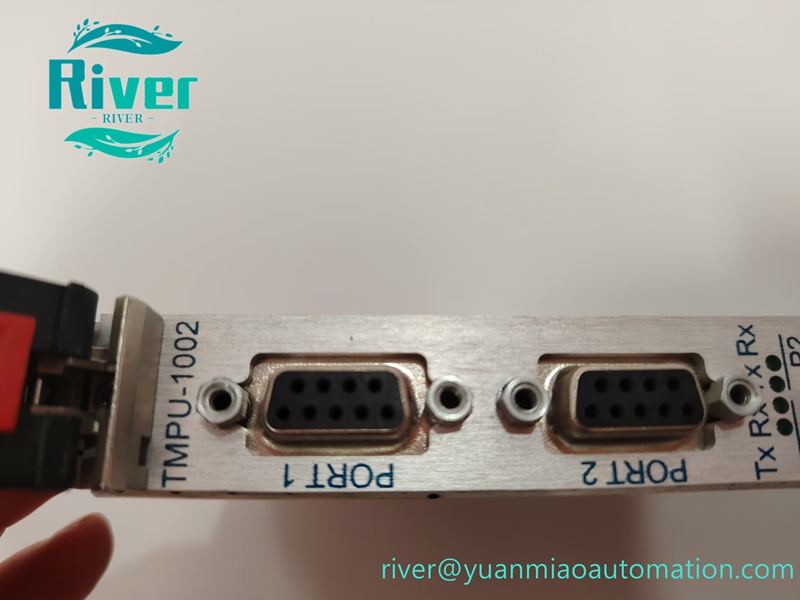

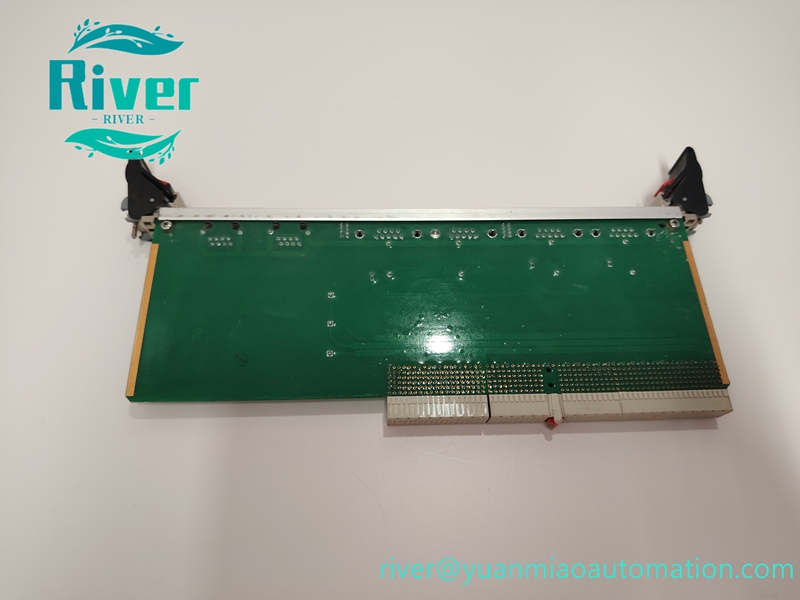

Original CCC TMPU‑1002 processing unit for Vanguard turbomachinery control system.

Product Overview

TMPU‑1002 is CCC Transmission and Management Processing Unit for Vanguard Series3+/Series4 turbomachinery control system. It acts as key data routing and processing node, manages high‑speed data exchange between CPU and I/O modules, undertakes anti‑surge calculation, load sharing and compressor performance‑optimization related data processing tasks. Widely used as maintenance spare part for petrochemical and oil‑gas compressor control cabinets.

Key Features

• High‑speed internal bus data routing between controller and I/O boards
• Supports anti‑surge, load‑sharing and compressor performance‑optimization data processing
• Built‑in comprehensive self‑diagnosis with LED status and fault indicators
• Conformal‑coated PCB, anti‑vibration and anti‑electromagnetic interference
• Compact rack‑plug‑in card design for convenient on‑site replacement

• Optimized for CCC Vanguard platform for continuous long‑term operation

•


Technical Specifications

• Brand: CCC (Compressor Controls Corporation)
• Model: TMPU‑1002
• Module Type: Transmission & Management Processing Unit
• System Platform: Vanguard Series3+ / Series4
• Communication: CCC dedicated high‑speed serial peer‑to‑peer bus
• Power Supply: Rack backplane powered
• Weight: Approx 0.45kg
• Operating Temp: 0℃ ~ +60℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Rack plug‑in module

•


Compatibility

Compatible with CCC Vanguard Series3+ / Series4 turbomachinery control system. System parameter download and bus communication check required after replacement.
