Original Datel isolated RS232 interface module, industrial serial communication spare part.

Product Overview

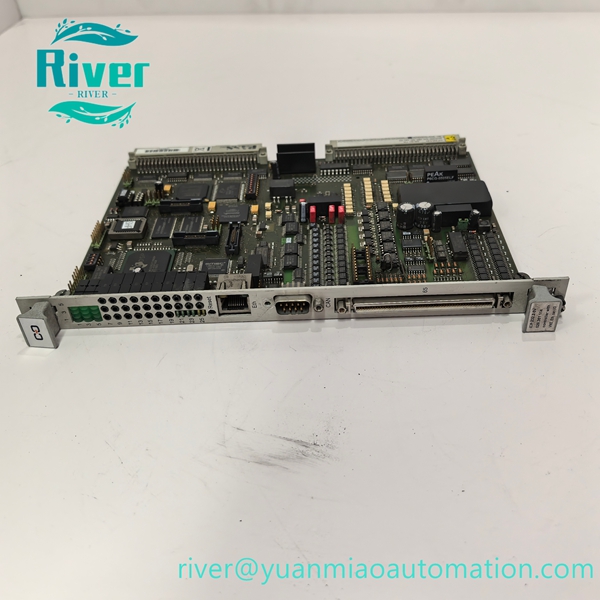

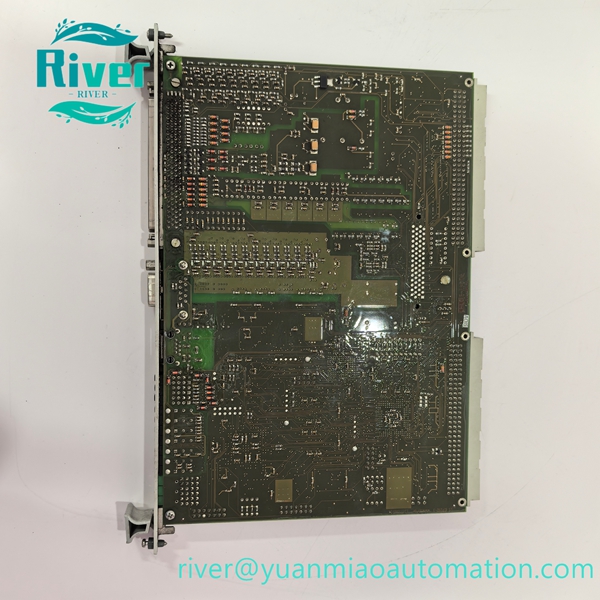

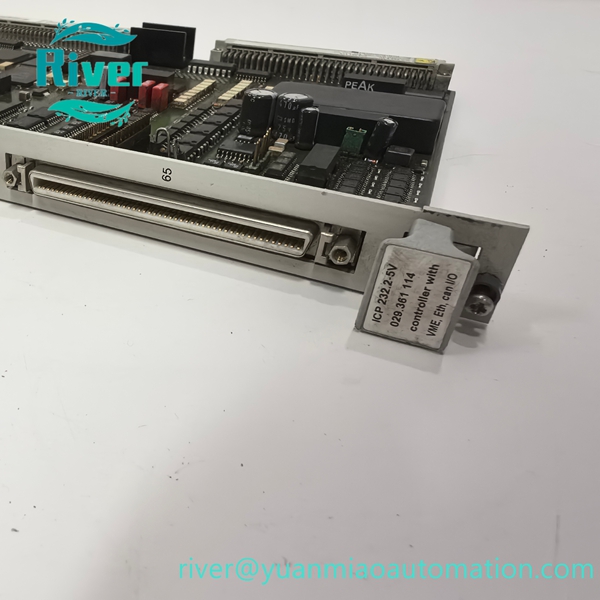

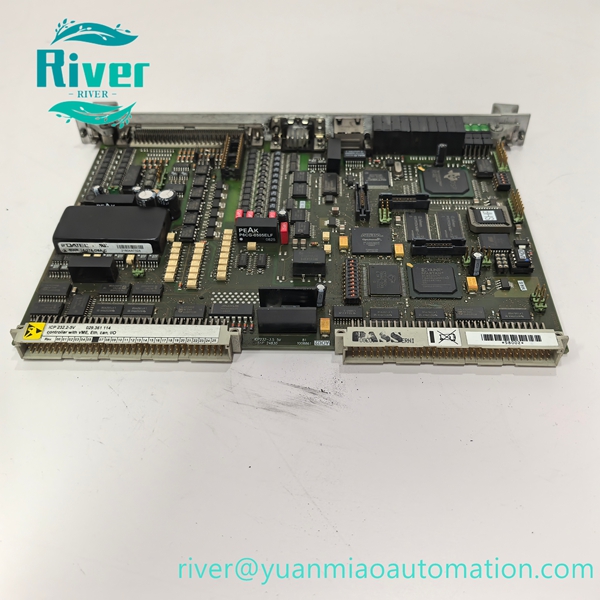

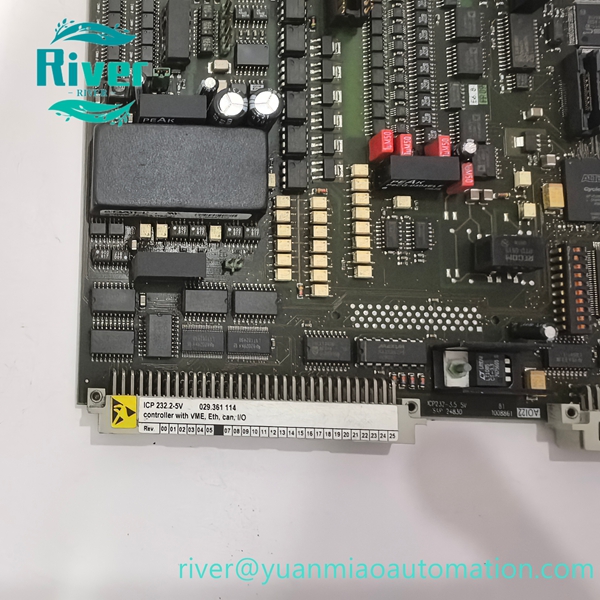

ICP232.2‑5V (029.361114) is DATEL isolated RS232 serial interface module. It provides full galvanic isolation for RS232 transmit‑receive signals, converts TTL‑level signals to RS232 standard level, eliminates ground‑loop noise interference between host and field serial devices. Compact plug‑in module structure, widely used as maintenance spare part for industrial control, power plant and test equipment systems.

Key Features

• Complete galvanic isolation between TTL side and RS232 communication side
• TTL to RS232 level conversion for serial data transmission
• Suppresses ground‑loop noise and common‑mode interference
• Compact modular design for embedded board‑mount installation
• Stable baud‑rate support for industrial serial communication

• Low power consumption, suitable for continuous long‑time operation

•


Technical Specifications

• Brand: DATEL
• Model: ICP232.2‑5V, 029.361114
• Module Type: Isolated RS232 Interface Module
• Supply Voltage: 5VDC
• Interface: TTL level, RS232
• Isolation Voltage: 2500V DC
• Operating Temp: ‑40℃ ~ +85℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: PCB board‑mount

•


Compatibility

Works with TTL‑based industrial control boards. Power supply check and serial communication wiring test required after replacement.
