Original GE UCVG VME single‑board controller for Mark VIe turbine control system.

Product Overview

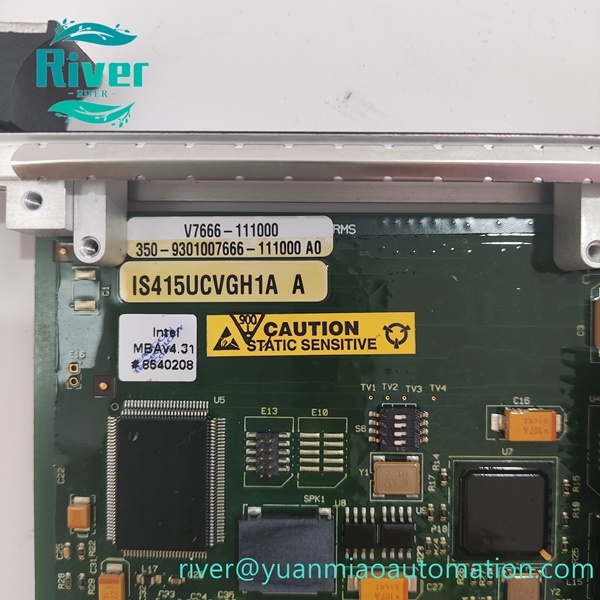

IS415UCVGH1A (V7666‑111000) is UCVG universal control processor board for GE Speedtronic Mark VIe platform. Equipped with embedded real‑time processor, it executes turbine control algorithm logic, IONet communication scheduling, alarm processing and HMI data interaction. Runs QNX real‑time operating system, supports SIL3 safety requirement and simplex/dual/TMR redundant configuration. Conformal‑coated PCB adapts to continuous operation in power‑plant cabinet. Widely used as maintenance spare part for gas‑steam turbine and generator control systems.

Key Features

• High‑performance embedded processor for real‑time turbine control calculation

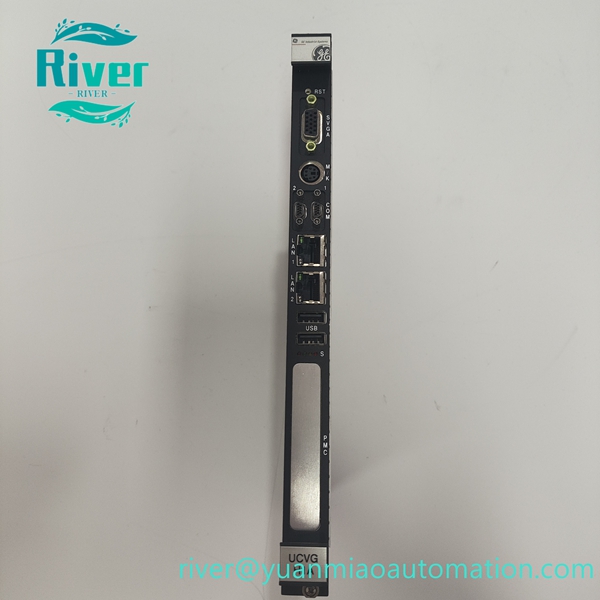

• Dual 10/100Mbps Ethernet ports for redundant control network communication

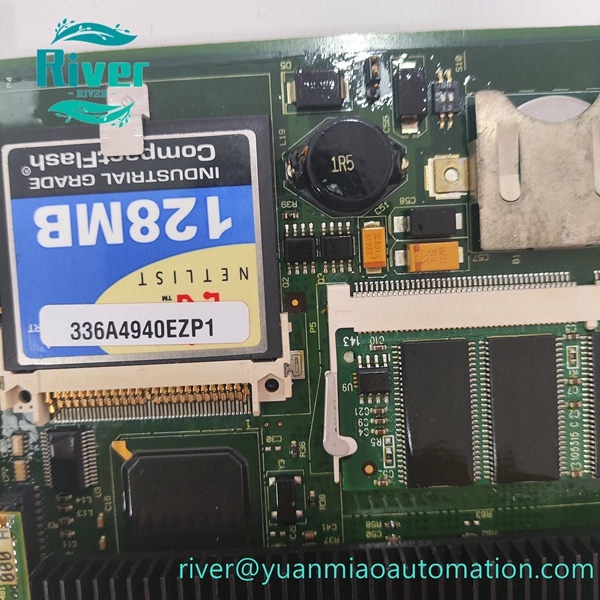

• CompactFlash slot for firmware, configuration file and fault event log storage
• Supports simplex, dual and TMR triple‑modular‑redundant system architecture
• Comprehensive on‑board self‑diagnosis with front‑panel LED fault indicators

• 6U VME plug‑in form factor, conformal‑coated PCB against vibration and humidity

•


Technical Specifications

• Brand: GE (Vernova)
• Model: IS415UCVGH1A, V7666‑111000
• Module Type: UCVG VME Controller Board
• System Platform: Speedtronic Mark VIe
• Form Factor: 6U VME rack‑mount PCB
• Communication: Dual 10/100 Ethernet, IONet bus
• Operating System: QNX real‑time OS
• Power Supply: Backplane powered
• Operating Temp: ‑20℃ ~ +70℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: VME rack slot plug‑in

•


Compatibility

Compatible with GE Mark VIe turbine control rack. Firmware matching, system configuration download and communication loop test required after replacement.
