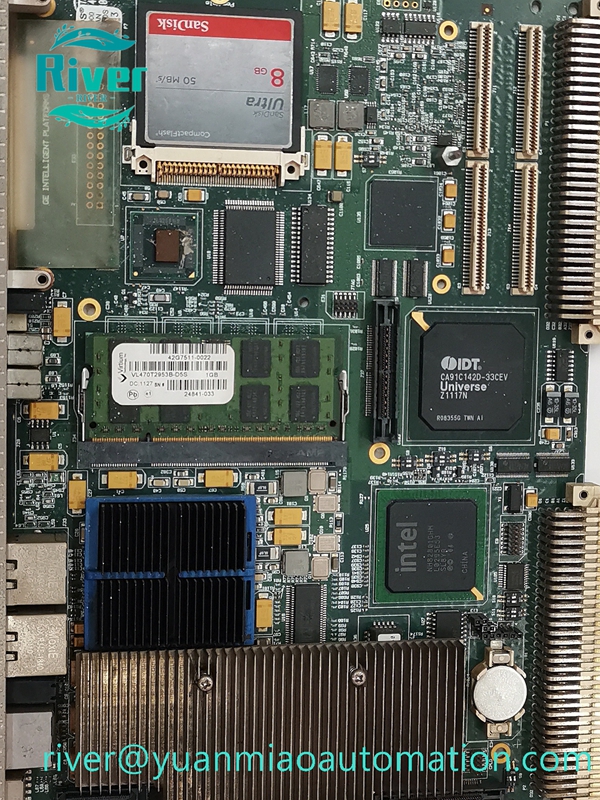

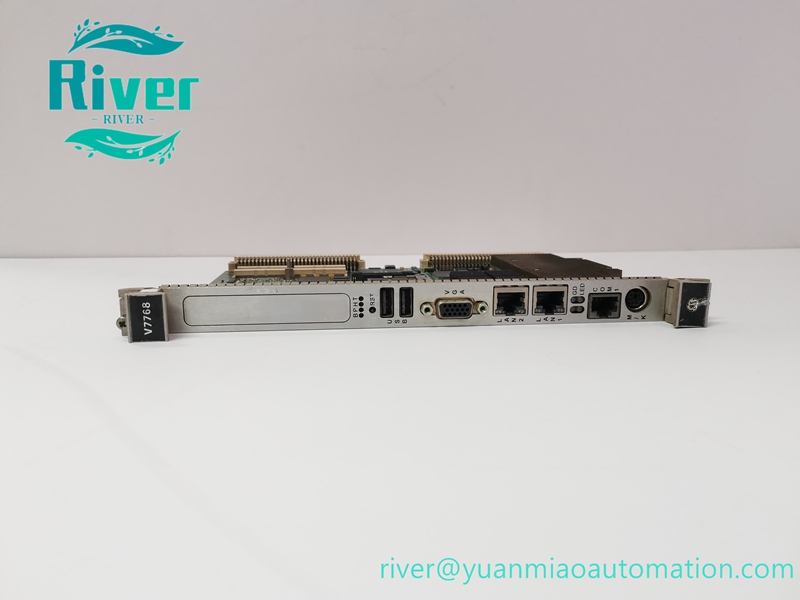

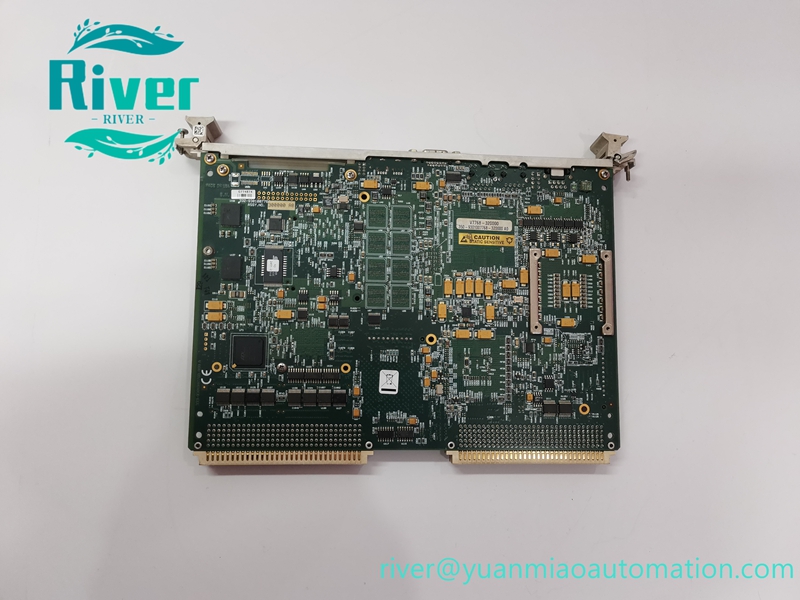

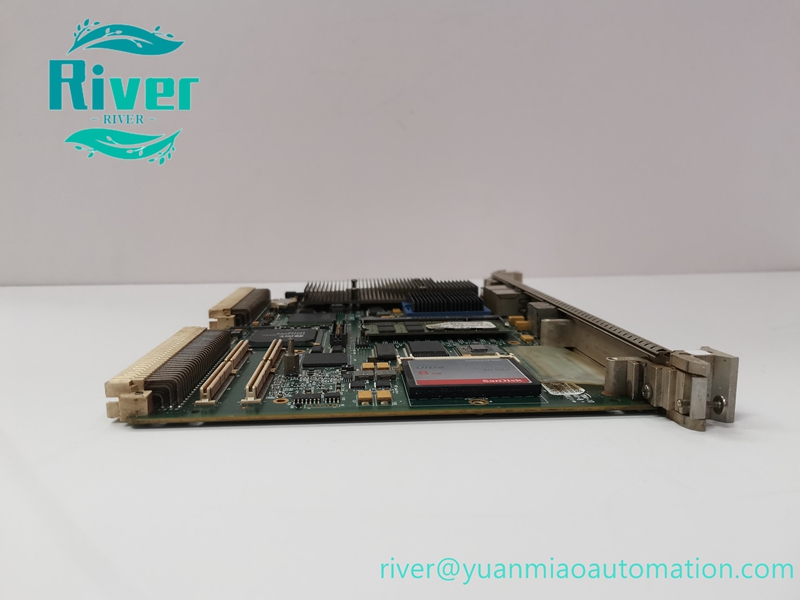

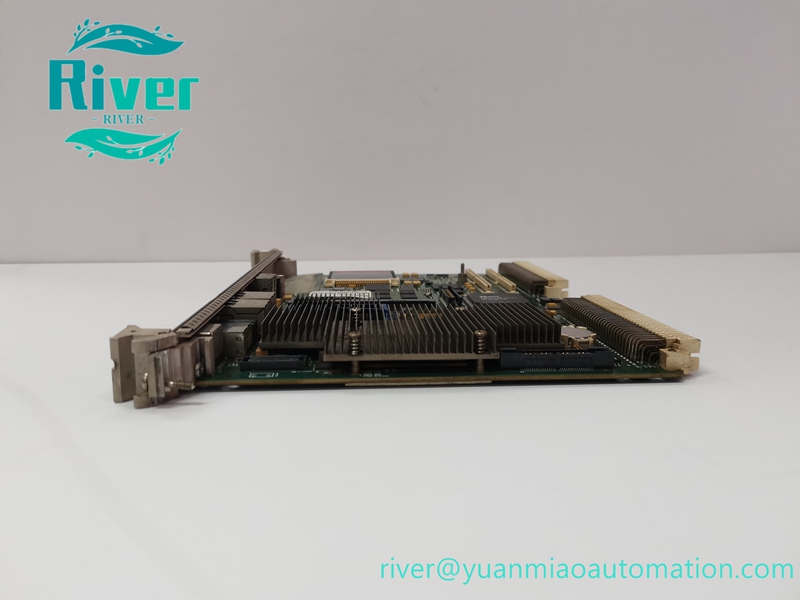

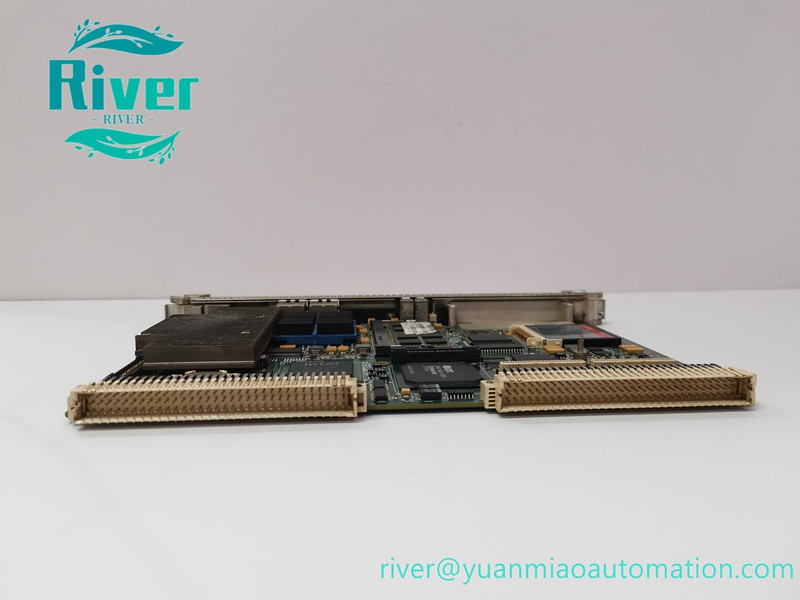

Original GE V7768‑320000 VME single‑board computer for Mark VIe turbine control system, industrial spare part.

Product Overview

V7768‑320000 (3509301007768‑320000A0) is GE VME‑bus single‑board computer, serves as main computing hardware for Mark VIe turbine control platform. Equipped with Intel embedded processor, it handles real‑time data processing, network communication, HMI interaction and system management tasks. CompactFlash interface stores firmware, configuration and fault event logs. Conformal‑coated PCB adapts to power‑plant cabinet harsh operating environment. Widely used as maintenance spare part for gas turbine, steam turbine and generator control systems.

Key Features

• High‑performance Intel Core 2 Duo / Celeron M embedded processor for real‑time computing
• Dual Gigabit Ethernet ports for redundant industrial network communication
• Multiple peripheral interfaces: USB2.0, SVGA video, serial port, PMC expansion slot
• CompactFlash storage slot for firmware, configuration files and event log storage
• Hardware watchdog timer, realizes automatic fault reset to enhance system stability

• 6U VME single‑slot plug‑in form factor, conformal‑coated PCB against vibration and EMI interference

•


Technical Specifications

• Brand: GE (Vernova / GE Fanuc)
• Model: V7768‑320000, 3509301007768‑320000A0
• Module Type: VME‑bus Single Board Computer
• Form Factor: 6U VME rack‑mount board
• Processor: Intel Core 2 Duo / Celeron M
• Memory: Max 2GB DDR2 SDRAM
• Communication: Dual Gigabit Ethernet, RS232 serial, USB2.0
• Storage: CompactFlash card support
• Power Supply: Backplane powered
• Operating Temp: 0℃ ~ +70℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: VME rack slot plug‑in

•


Compatibility

Compatible with GE Mark VIe turbine control rack. Firmware matching, system configuration download and communication loop test required after replacement.
