Original ABB ECF communication processor board for ECS industrial control rack, data processing spare part.

Product Overview

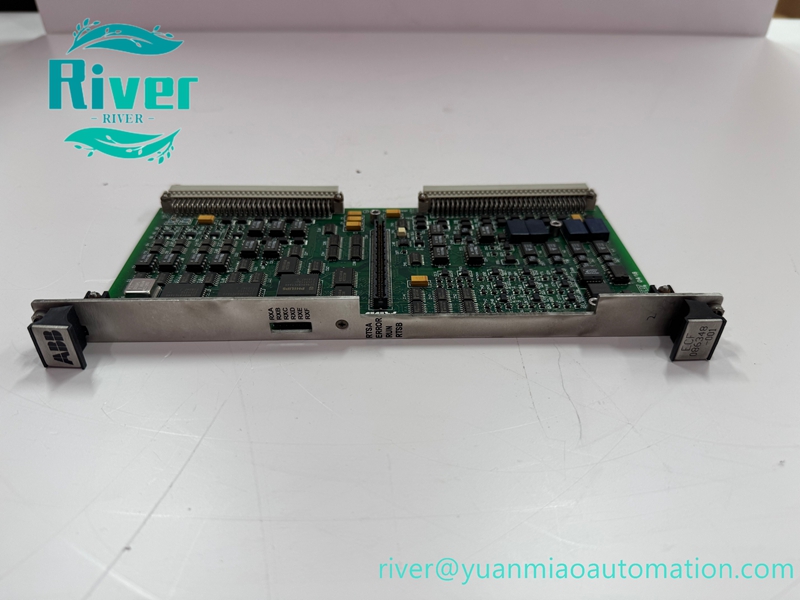

086348‑001 is ECF communication processor board for ABB ECS control rack. It undertakes real‑time data processing, bus scheduling, multi‑protocol conversion and system inter‑module data interaction. It acts as data gateway between main controller, field I/O and upper monitoring equipment, realizes reliable transmission of alarm, status and control command data. Conformal‑coated PCB hardware adapts to power‑plant cabinet harsh operating conditions. Widely used as maintenance spare part for thermal power and industrial automation control cabinets.

Key Features

• High‑speed embedded processor for deterministic real‑time data processing and bus scheduling
• Dual 10/100Mbps Ethernet interfaces for redundant network communication
• Supports multiple industrial protocols for interconnection with DCS and third‑party devices
• On‑board non‑volatile storage for configuration parameters and fault event logs
• Front‑panel LED status indicators for module running and fault diagnosis

• 6U VME plug‑in form factor, conformal‑coated PCB against vibration and EMI interference

•


Technical Specifications

• Brand: ABB
• Model: 086348‑001
• Module Type: ECF Communication Processor Board
• Form Factor: 6U VME rack‑mount board
• Communication: Dual 10/100Mbps Ethernet, internal dedicated backplane bus
• Power Supply: Backplane powered
• Operating Temp: ‑20℃ ~ +70℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Plug‑in inside ABB ECS control rack

•


Compatibility

Compatible with ABB ECS series control rack. Firmware matching, parameter download and communication loop test required after replacement.
