Original ABB communication interface module for industrial control rack, realizes multi‑protocol data exchange between controller and field devices spare part.

Product Overview

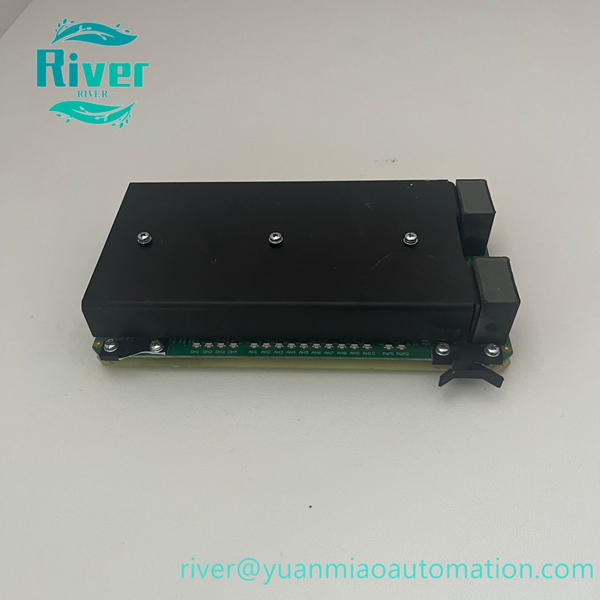

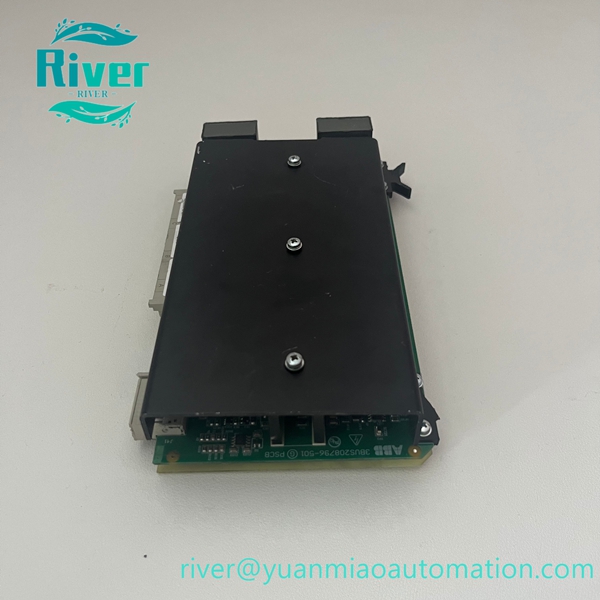

3BUS208796‑501 is communication interface module of ABB industrial control system. It serves as data gateway between main controller, remote I/O units and upper monitoring equipment, completes protocol conversion and high‑speed data transmission. It supports multiple mainstream industrial communication protocols, processes status signals, alarm information and control commands, ensures stable inter‑equipment interaction within the automation system. Conformal‑coated PCB hardware is resistant to vibration and electromagnetic interference in power‑plant cabinet environment. Widely used as maintenance spare part for power generation, petrochemical and process‑industry DCS control cabinets.

Key Features

• Supports multiple industrial protocols for data interaction with field instruments, drives and remote I/O devices
• High‑speed deterministic data transmission, guarantees real‑time performance of control and alarm signals
• Built‑in hardware self‑diagnosis, LED indicators for module running status and fault prompt
• Isolated communication circuit, effectively suppresses ground‑loop and electromagnetic interference
• Standard rack plug‑in form factor, supports hot‑swap for convenient on‑site maintenance replacement

• Industrial‑grade hardware fits long‑term continuous operation in harsh cabinet conditions

•


Technical Specifications

• Brand: ABB
• Model: 3BUS208796‑501
• Module Type: Communication Interface Module
• Power Supply: Backplane powered 24VDC
• Communication: Internal backplane bus, multi‑protocol field interface
• Operating Temp: ‑20℃ ~ +60℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Plug‑in inside ABB control rack

•


Compatibility

Compatible with matched ABB control rack system. Backplane contact inspection and communication loop function test required after replacement.
