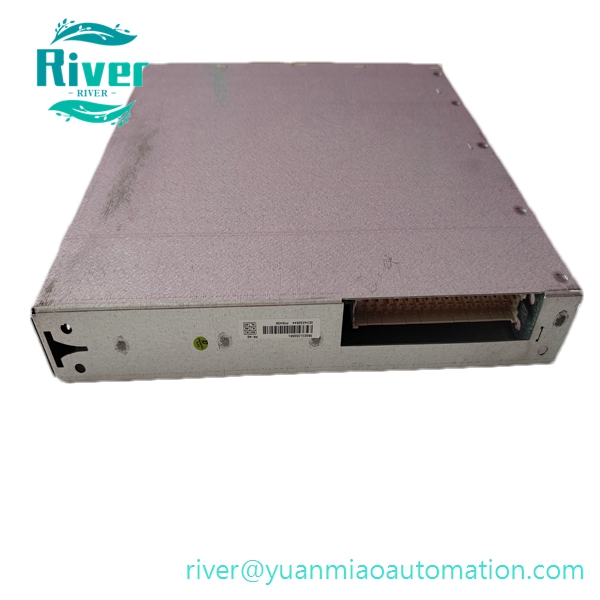

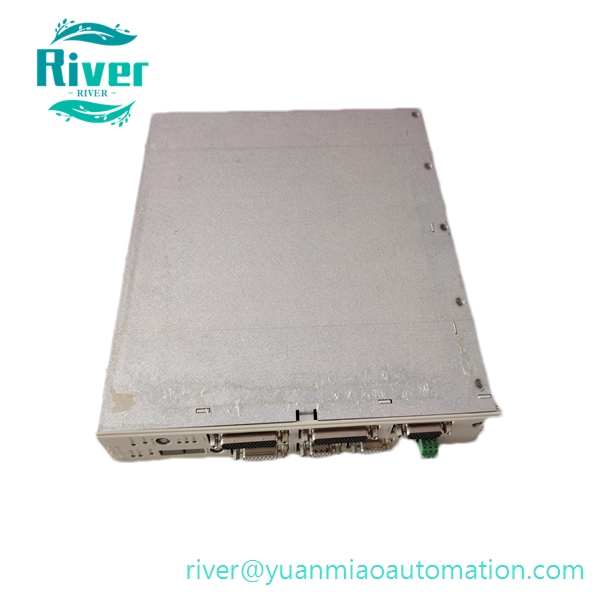

Original ABB PM645B high‑performance CPU processor for AC800M controller, multi‑protocol industrial process control spare part.

Product Overview

PM645B is high‑performance processor module for ABB AC800M control system. It executes IEC61131‑3 control logic, completes process closed‑loop regulation, sequence control and interlock logic calculation. It carries out data interaction with I/O modules, field instruments and upper monitoring system via multiple communication interfaces, supports CPU redundancy deployment to enhance system availability. It supports Profibus‑DP, Ethernet and fiber‑optic communication options, adapts to long‑distance and redundant network architecture. Industrial‑grade metal housing fits continuous operation in power‑plant, petrochemical cabinet environment. Widely used as maintenance spare part for process‑industry automation control cabinets.

Key Features

• High‑performance processing core for deterministic execution of IEC61131‑3 control programs
• Supports CPU redundancy configuration, realizes seamless master‑standby switchover for high‑availability system
• Multiple communication options: Profibus‑DP electrical port, 155Mbps fiber‑optic interface for long‑distance transmission
• Supports dual Profibus‑DP independent bus, manual baud‑rate setting via dip‑switch or auto‑adaptation
• On‑board memory for storing application programs, configuration parameters and fault event logs

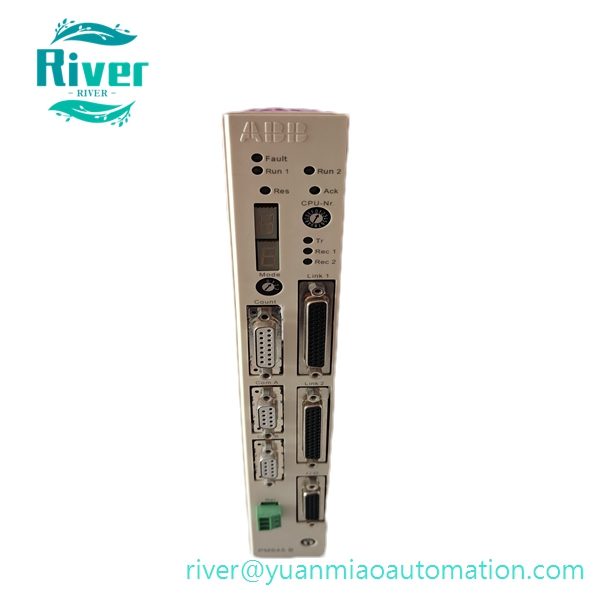

• Front‑panel multi‑color LED indicators for power, running status and fault diagnosis

• Rack‑mount module form factor, supports hot‑swap within matched AC800M rack for convenient maintenance

•


Technical Specifications

• Brand: ABB
• Model: PM645B
• Module Type: Processor CPU Module
• System Platform: AC800M DCS System
• Programming Standard: IEC61131‑3
• Communication: Profibus‑DP, Ethernet, 155M fiber‑optic interface
• Power Supply: Backplane powered 24VDC
• Weight: Approx 0.5kg
• Operating Temp: ‑25℃ ~ +60℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Plug‑in inside ABB AC800M control rack

•


Compatibility

Compatible with ABB AC800M series control rack. Firmware matching, control program download and communication loop test required after replacement.
