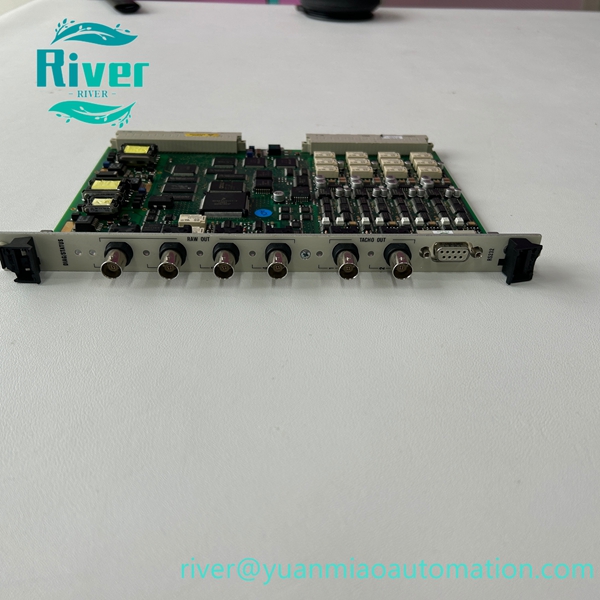

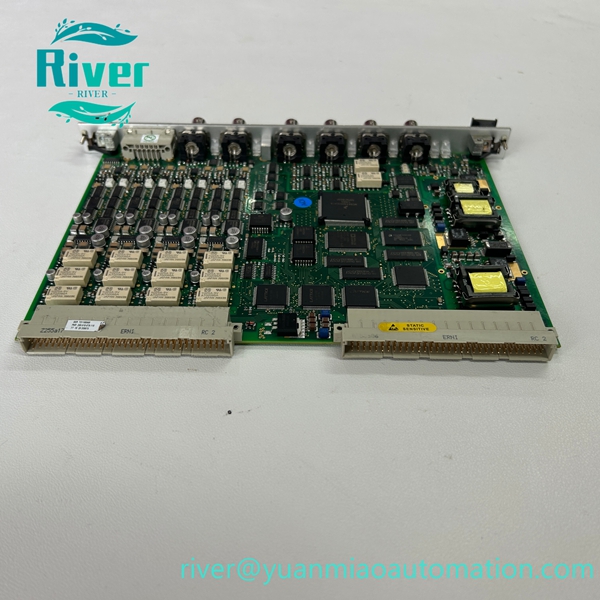

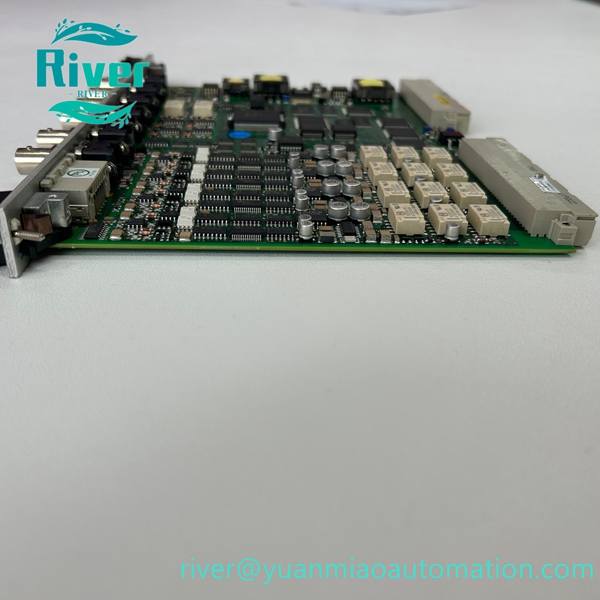

Original Vibro‑Meter MPC4 multi‑channel machinery protection card for VM600 system, vibration, displacement and tachometer monitoring for rotating equipment spare part.

Product Overview

MPC4 (200‑510‑078‑115) is core machinery protection card of Vibro‑Meter VM600 machinery protection system under Meggitt. It is equipped with four fully‑programmable dynamic signal channels and two tachometer input channels, accepts acceleration, velocity and proximity displacement sensor signals, realizes real‑time measurement of shaft vibration, thrust position, casing expansion, eccentricity and dynamic pressure. It adopts high‑speed DSP digital signal processing, supports digital filtering, integration, differentiation and order‑tracking function. It provides programmable alert and danger alarm thresholds with delay and hysteresis setting, outputs alarm signals to rear IOC4T card. It complies with API 670 and SIL2 safety standard. Widely used as maintenance spare part for turbine, compressor and generator machinery protection cabinets in power‑plant, petrochemical industry.

Key Features

• 4 independent programmable dynamic signal channels, supports acceleration, velocity and proximity displacement input
• 2 tachometer/speed input channels, compatible with magnetic pickup, proximity probe and TTL speed sensors
• Advanced DSP processing, supports digital filtering, integration, differentiation and order‑tracking amplitude‑phase analysis
• Programmable alert and danger alarm setpoints, configurable alarm delay, hysteresis and latching function
• Built‑in complete self‑diagnosis for sensor fault, signal chain abnormality and module hardware status
• Front‑panel LED indicators for module status and fault diagnosis
• Standard VM600 rack plug‑in structure, cooperates with IOC4T rear card for signal output and communication

• Complies with API 670 machinery protection specification and SIL2 functional‑safety certification

•


Technical Specifications

• Brand: VIBRO‑METER (Meggitt)
• Model: MPC4, 200‑510‑078‑115
• Module Type: Machinery Protection Card
• System Platform: VM600 Machinery Protection System
• Dynamic Inputs: 4 channels
• Tachometer Inputs: 2 channels
• Supported Signal: Acceleration, velocity, proximity displacement
• Safety Standard: API 670, SIL2
• Power Supply: Backplane powered 24VDC
• Operating Temp: ‑20℃ ~ +70℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Plug‑in inside VM600 system rack

•


Compatibility

Matches Vibro‑Meter VM600 rack and IOC4T rear I/O card. Sensor wiring inspection, alarm threshold configuration and machinery protection function simulation test required after replacement.
