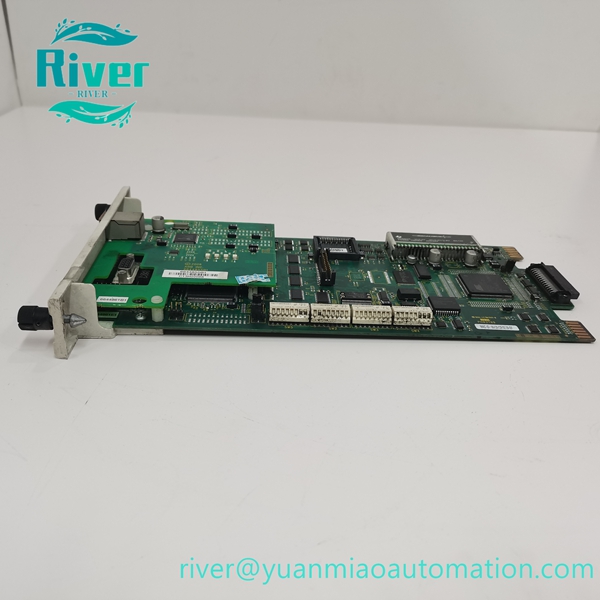

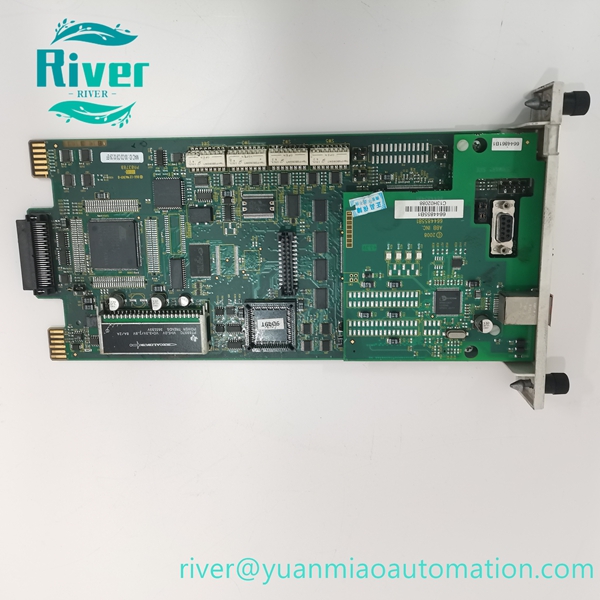

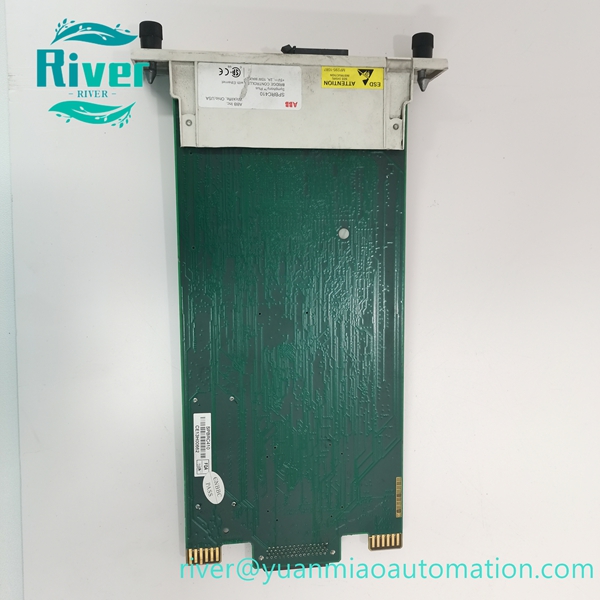

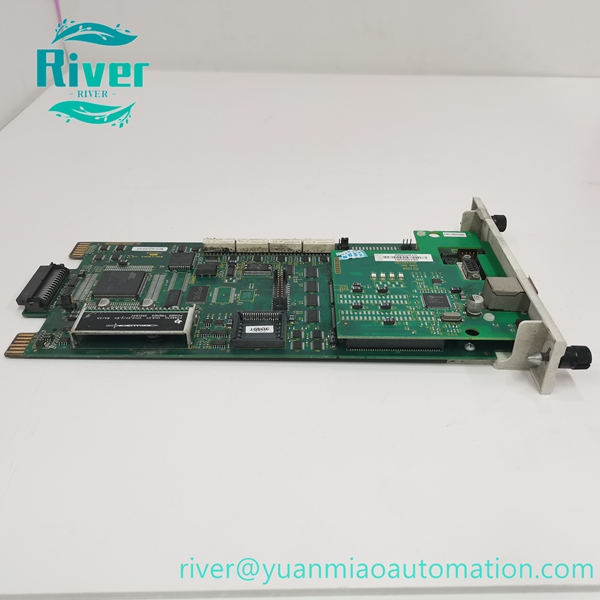

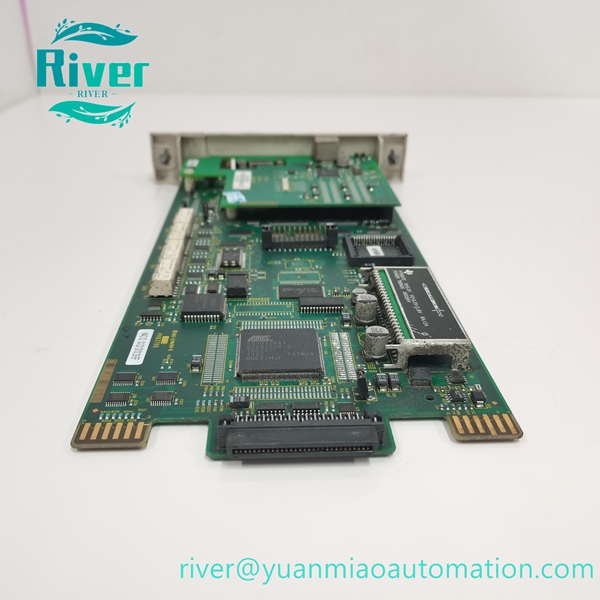

Original ABB SPBRC410 bridge controller with Modbus‑TCP interface for Symphony Plus HR system, realizes data exchange with third‑party devices spare part.

Product Overview

SPBRC410 is bridge controller of ABB Symphony Plus Harmony Rack (HR) series DCS system. It acts as communication gateway between Symphony Plus control system and external third‑party devices, supports Modbus‑TCP protocol for data interaction with PLC, intelligent electronic devices and 800xA system. It supports connection to HR series, SD series and S800 I/O subsystems, realizes real‑time process data transmission and protocol conversion. Built‑in web configuration interface for IP setting and register mapping configuration. Standard rack plug‑in module, industrial‑grade hardware withstands cabinet vibration and electromagnetic interference. Widely used as maintenance spare part for power‑plant, petrochemical and process‑industry DCS control cabinetsABB Group.

Key Features

• Built‑in Modbus‑TCP communication interface, realizes data exchange with third‑party industrial devices
• Supports connection with HR, SD and S800 I/O subsystems of Symphony Plus system
• Built‑in web‑based configuration tool for IP address and Modbus register mapping setting
• Front‑panel LED indicators for module power, running status and communication fault diagnosis
• Standard Harmony Rack plug‑in form factor, supports hot‑swap for on‑site maintenance

• Industrial‑grade conformal‑coated PCB for long‑term continuous operation in harsh cabinet environment

•


Technical Specifications

• Brand: ABB
• Model: SPBRC410
• Module Type: Bridge Controller
• System Platform: Symphony Plus Harmony Rack HR Series
• Communication: Modbus‑TCP, Ethernet
• Power Supply: Backplane powered 24VDC
• Operating Temp: ‑10℃ ~ +60℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Plug‑in inside Harmony Rack control rack

•


Compatibility

Compatible with ABB Symphony Plus HR series system. Network parameter configuration download, communication loop test and data exchange verification required after replacement.
