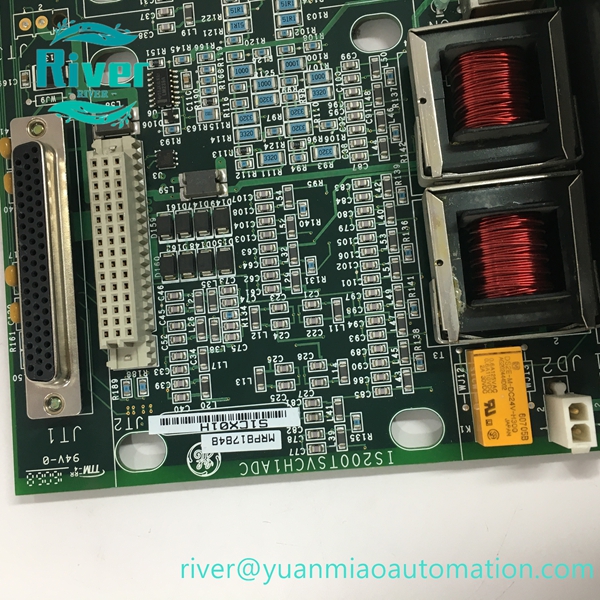

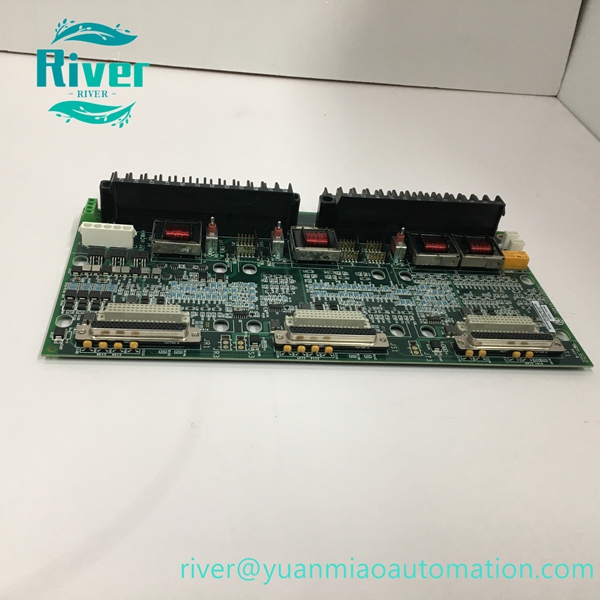

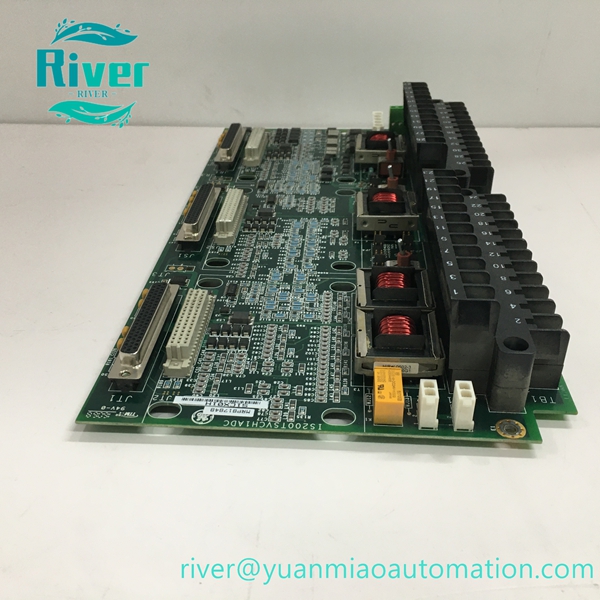

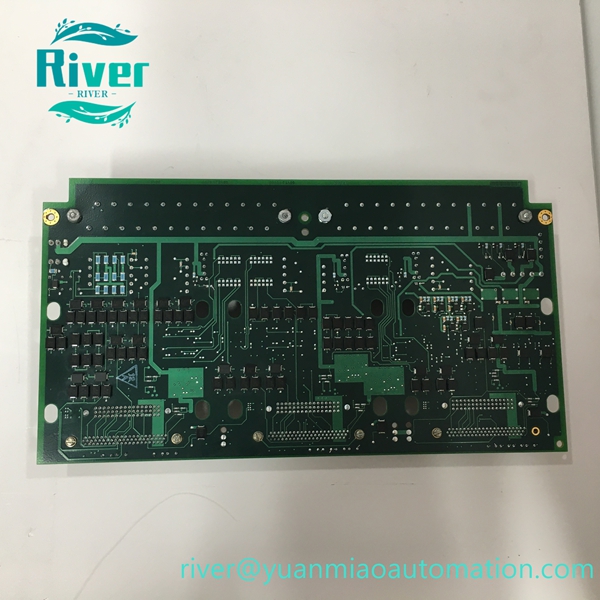

Original GE IS200TSVCH1ADC S1CX01H terminal board for Mark VI turbine system, field signal wiring interface spare part.

Product Overview

IS200TSVCH1ADC S1CX01H is the terminal board for GE Mark VI Speedtronic turbine control system, S1CX01H is version code. It serves as field‑device wiring interface, connects external sensors and actuators to control modules for signal transmission. Equipped with screw terminals, conformal‑coated PCB, anti‑vibration and anti‑interference, widely applied in power‑plant turbine control cabinets.

Key Features

• Dedicated terminal board for Mark VI turbine control system
• Screw terminals for field signal connection
• Realizes signal interconnection between field devices and control modules
• Conformal‑coated PCB, good anti‑vibration and EMC performance

• Standard Mark VI rack‑mount installation

•


Technical Specifications

• Brand: GE
• Model: IS200TSVCH1ADC, S1CX01H
• Module Type: Terminal Board (TSVCH)
• System Platform: Mark VI Speedtronic Turbine Control System
• Function: Field signal wiring, signal routing
• Operating Temp: ‑40℃ ~ +85℃
• Storage Temp: ‑40℃ ~ +85℃
• Humidity: 5‑95% non‑condensing

• Installation: Mount inside Mark VI control rack

•


Compatibility

Compatible with GE Mark VI Speedtronic turbine control system. After replacement, inspect terminal wiring and test signal loop continuity.
