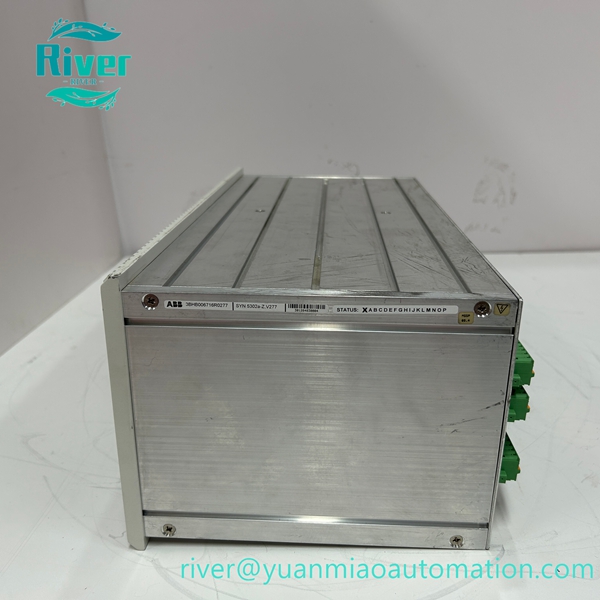

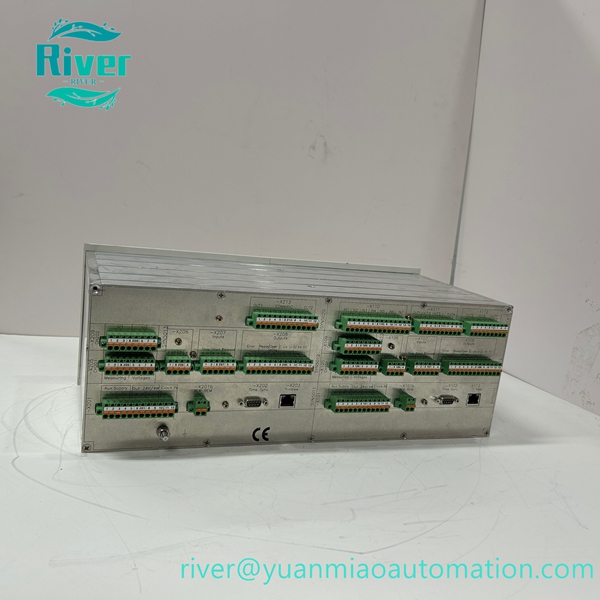

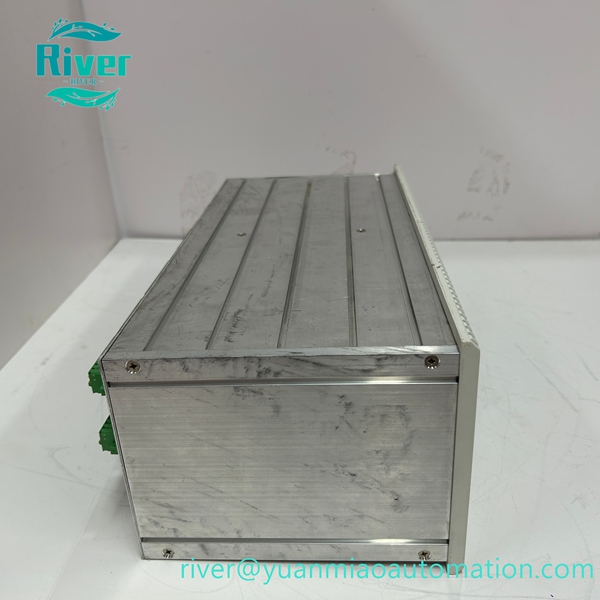

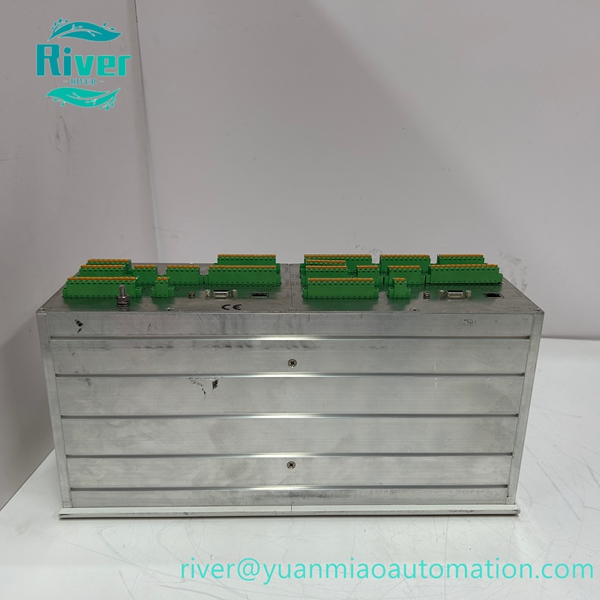

ABB 3BHB006716R0277 SYN 5302a-Z.V277 is a SYNCHROTACT 5 dual-channel automatic synchronizer for generator grid parallel connection.

Product Overview:

ABB 3BHB006716R0277 SYN 5302a-Z.V277 belongs to ABB SYNCHROTACT 5 series, it is a high-reliability redundant dual-channel automatic synchronizing device used for generator synchronization and grid paralleling in power systems.

Key Features:

• Redundant dual-channel architecture for high safety and reliability
• Supports automatic synchronization between generator and power grid
• Built-in comprehensive fault monitoring and diagnostic function
• Compatible with IEC 61850 and LON communication protocols
• Supports 50Hz, 60Hz and 16.7Hz frequency working mode

• Conforms to IEC 60255 and ANSI/IEEE C37.90 industry standards

•


Technical Specifications:

• Model: SYN 5302a-Z.V277, Part No:3BHB006716R0277
• Brand: ABB
• Product Type: Dual Channel Automatic Synchronizing Device
• Series: SYNCHROTACT 5
• Auxiliary Voltage: 220-250VDC
• Frequency Range: 50Hz,60Hz,16.7Hz

• Communication: IEC61850, LON

•


Compatibility & Application:

Designed for power plant generator paralleling, substation grid synchronization. Widely applied in thermal power, hydropower and other power industry projects.
