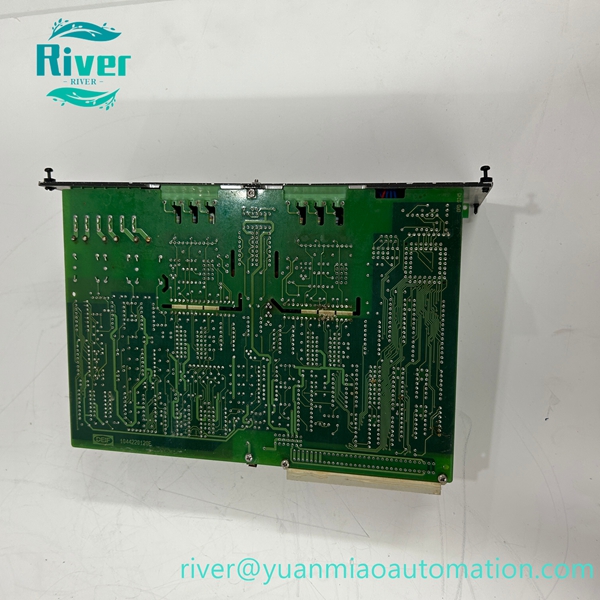

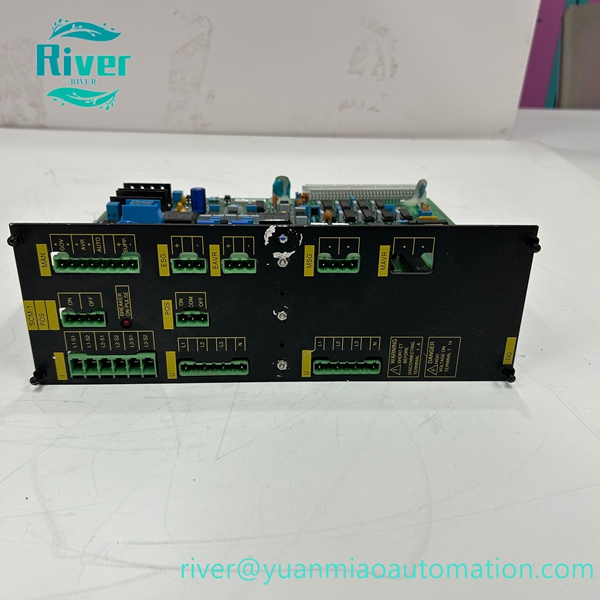

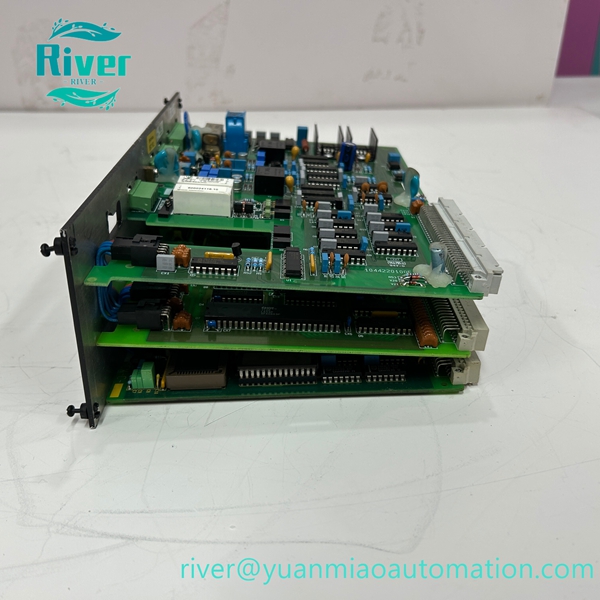

DEIF SCM-1 is the core synchronizing and measurement module for Delomatic-3 genset control rack, offering three-phase measurement, auto synchronisation and generator protection.

Product Overview:

DEIF SCM-1 is a plug-in synchronising and measuring core module for DEIF Delomatic-3 generator control system. It integrates three-phase electrical measurement, automatic synchronizer, breaker control and generator protection functions. It plugs into DGU2 rack and works together with PSM-1, IPM-1, OPM-1 modules. It adopts marine grade design, suitable for harsh cabin environment and widely used for marine power station and onshore generator paralleling control.

Key Features:

• Core synchronising & measuring module for Delomatic-3 DGU rack
• High precision 3-phase voltage, current, power and frequency measurement
• Built-in automatic synchronizer for generator paralleling
• Integrated generator electrical protection functions
• Circuit breaker close/open control for generator outlet
• Plug-in backplane installation, easy replacement and maintenance
• Marine EMC design, anti-vibration and anti-interference

• LED status indicators for operation and fault diagnosis

•


Technical Specifications:

• Brand: DEIF
• Model: SCM-1
• Series: Delomatic-3
• Mounting: DGU rack backplane plug-in
• Power Supply: 24VDC from PSM-1
• Function: 3-phase measurement, auto synchronisation, generator protection
• Operating Temperature: -10℃ ~ +60℃
• Protection Class: IP20 (cabinet mounted)

• Standard: IEC marine EMC standard

•


Compatibility & Application:

Compatible with DEIF Delomatic-3 DGU2 chassis, PSM-1, IPM-1, OPM-1 modules. Main applications: marine auxiliary generator control, ship power station paralleling, onshore standby power plant, diesel generator synchronisation and power management. It is critical spare part for marine power automation maintenance and retrofit.
