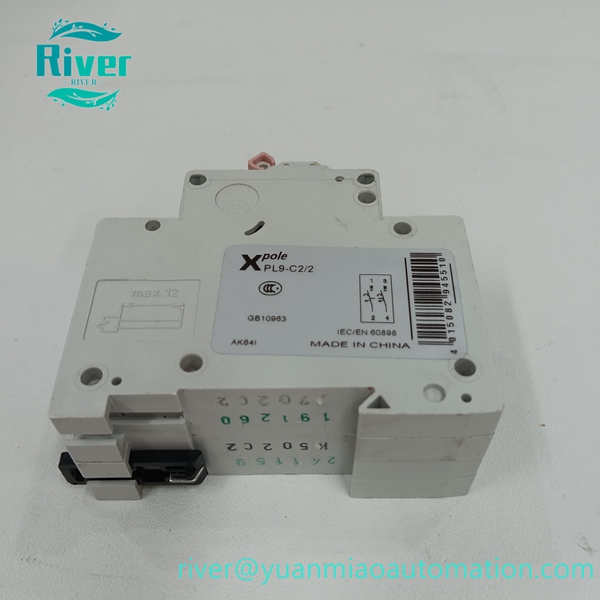

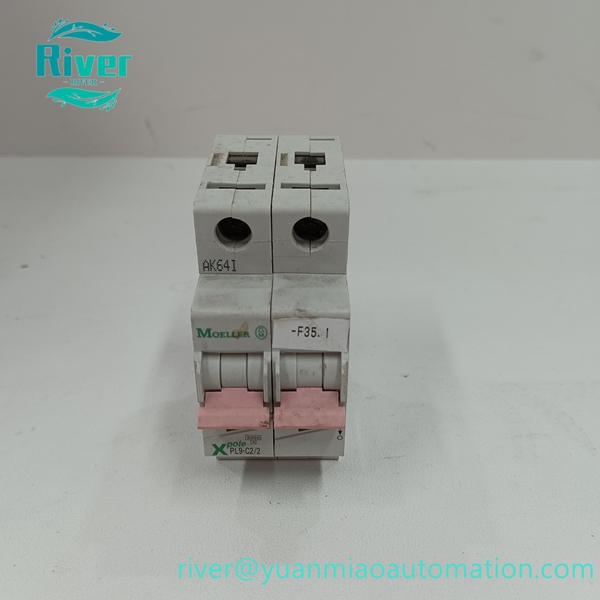

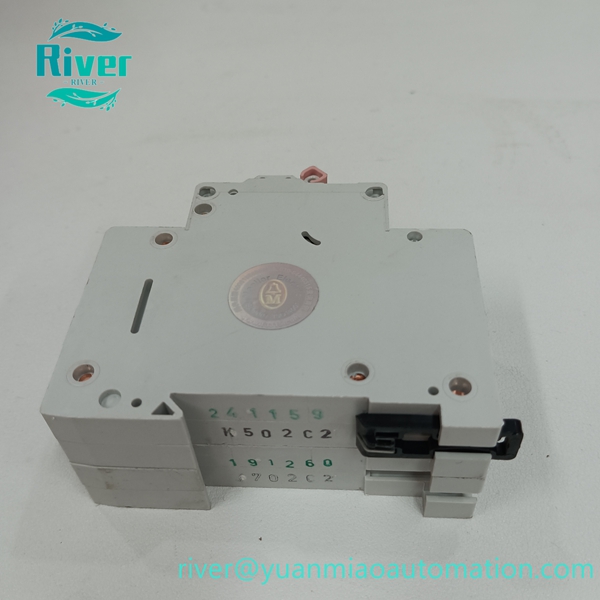

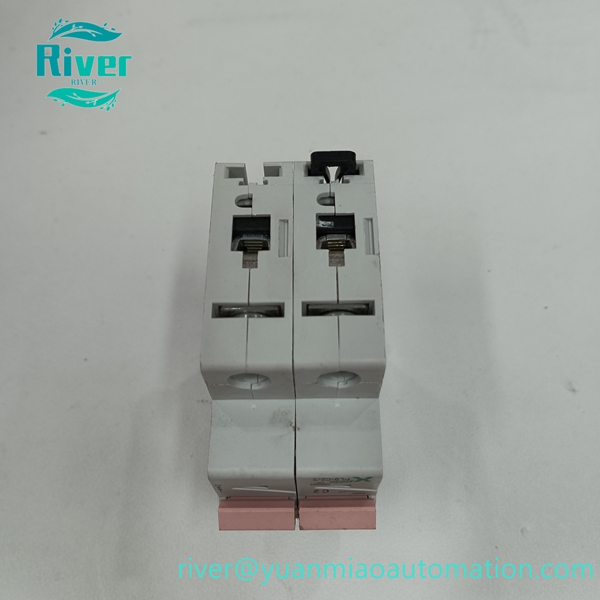

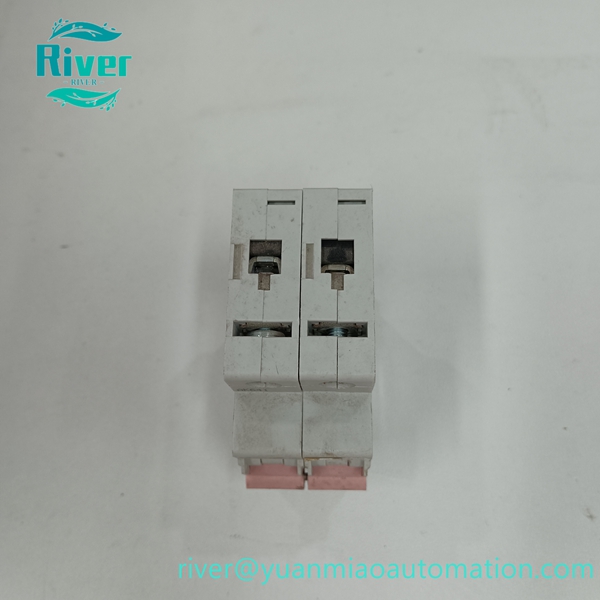

EATON PL9-C2-2 is a 2P C-curve MCB, used for overload and short-circuit protection in industrial and building power distribution systems.

Product Overview:

EATON PL9-C2-2 is a PL9 series miniature circuit breaker manufactured by EATON (Moeller). It adopts C tripping curve with 2 poles design, providing reliable overload and short-circuit protection for power distribution circuits, widely applied in industrial control, cabinet power supply and building electrical systems.

Key Features:

• 2 pole design, C-type tripping curve
• DIN rail mounting for quick installation
• Thermal-magnetic trip mechanism
• Compact modular structure, space-saving

• High breaking capacity, stable circuit protection performance

•


Technical Specifications:

• Part Number: PL9-C2-2
• Brand: EATON
• Product Type: Miniature Circuit Breaker (MCB)
• Poles: 2P
• Trip Curve: C Curve

• Mounting: 35mm DIN Rail

•


Compatibility & Application:

It is suitable for industrial control cabinets, commercial building power distribution, automation equipment power supply, and general AC circuit overload and short-circuit protection scenarios.
