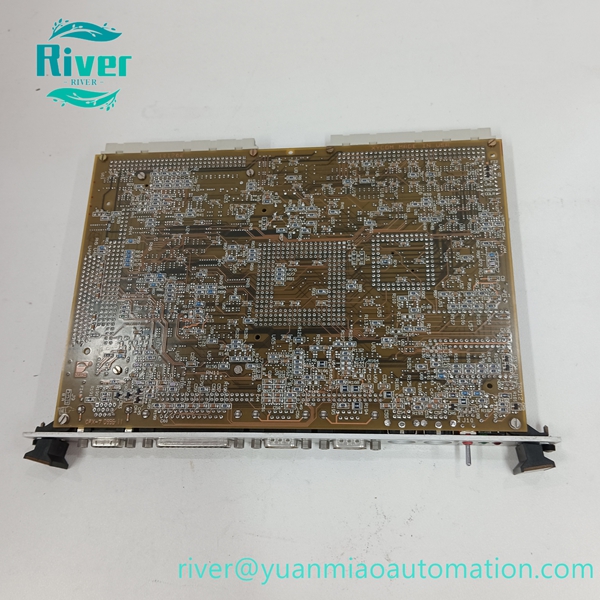

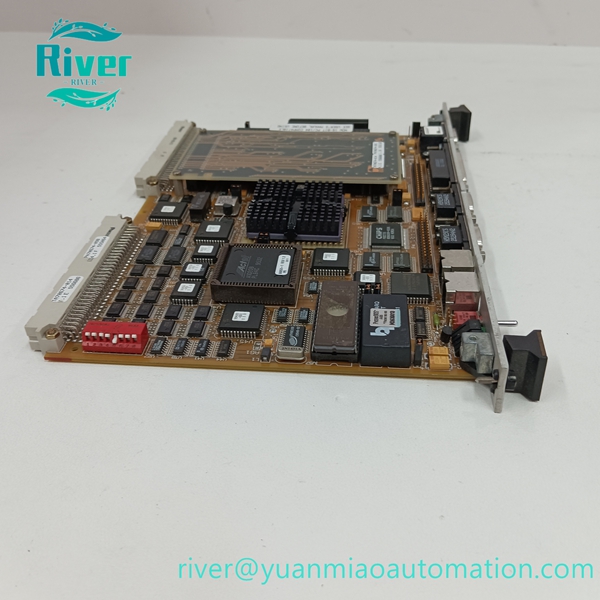

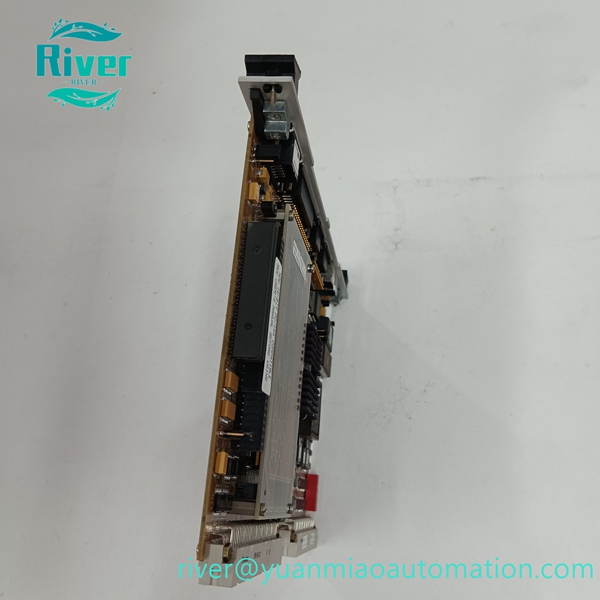

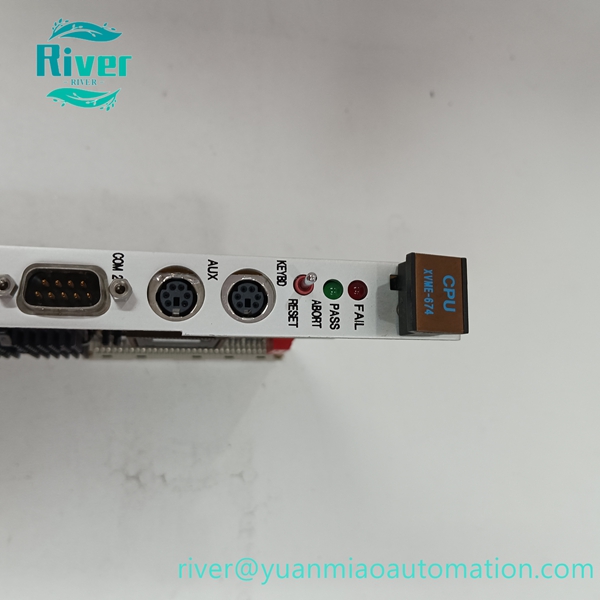

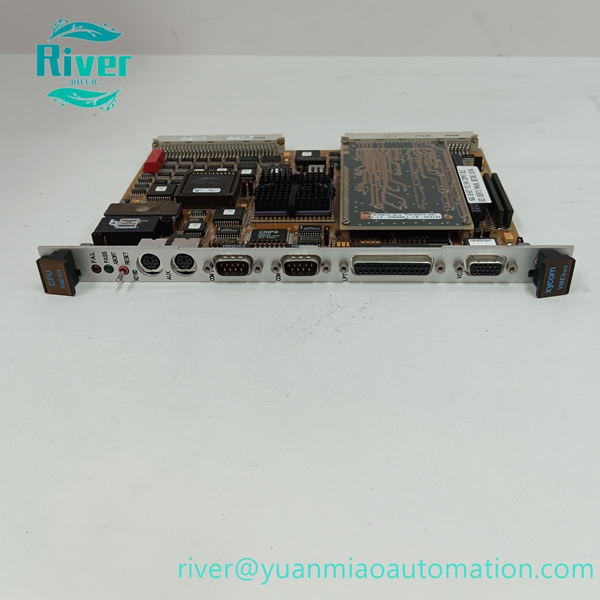

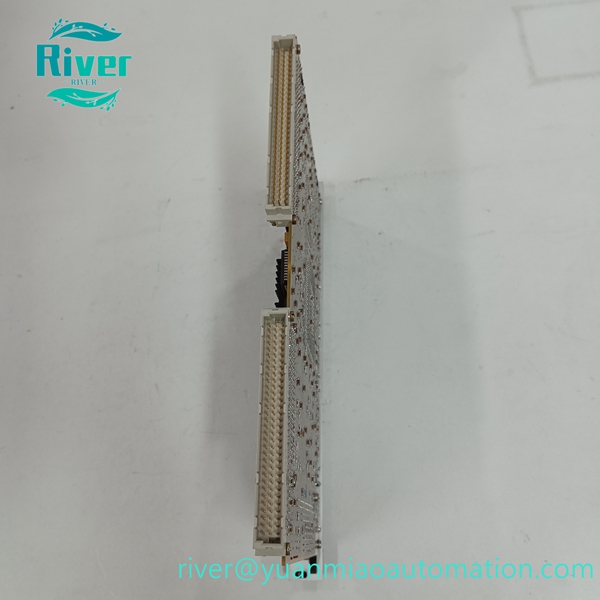

XYCOM XVME-674 is a 6U VMEbus PC/AT compatible single board computer built for legacy industrial and rugged embedded control systems.

Product Overview:

XYCOM XVME-674 is a 6U VMEbus single-board processor module. It adopts Intel 80486 series CPU, integrates memory, VGA graphics, IDE storage and serial/parallel ports. It supports VMEbus master and slave communication, widely used for legacy industrial automation, test measurement and military embedded computing platforms.

Key Features:

• 6U VMEbus form factor, PC/AT compatible architecture
• Intel 80486DX / 80486DX2 processor, up to 66MHz
• Dual-access DRAM: 4MB,16MB or 32MB optional
• Onboard Super VGA, IDE hard disk & floppy controller
• 2×RS232 serial ports + 1 parallel port
• VMEbus master/slave interface with programmable byte swap

• Built-in BIOS and board diagnostic function

•


Technical Specifications:

• Part Number: XVME-674
• Brand: XYCOM
• Product Type: VMEbus Single Board Computer / Processor Module
• CPU: Intel 80486DX 33MHz or 80486DX2 66MHz
• Memory: 4/16/32MB Dual-access DRAM
• Bus Standard: VMEbus IEEE1014

• Size: 6U VME board

•


Compatibility & Application:

This VME processor board fits standard 6U VME rack chassis. It is commonly used in old industrial control systems, test equipment, aerospace and military embedded computing upgrade & retrofit projects.
