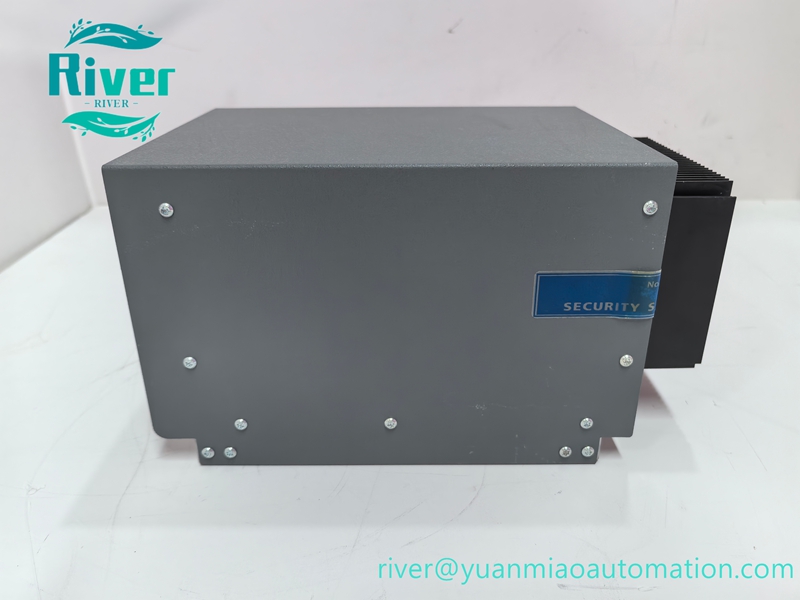

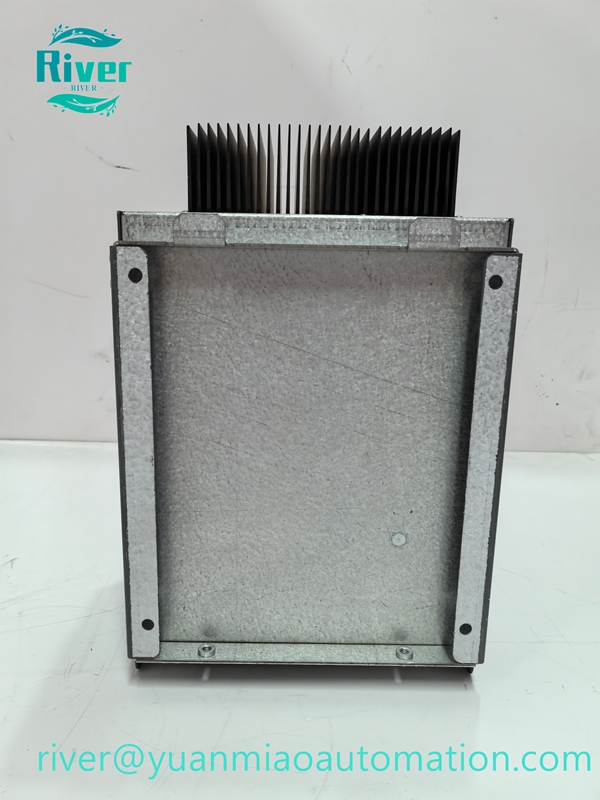

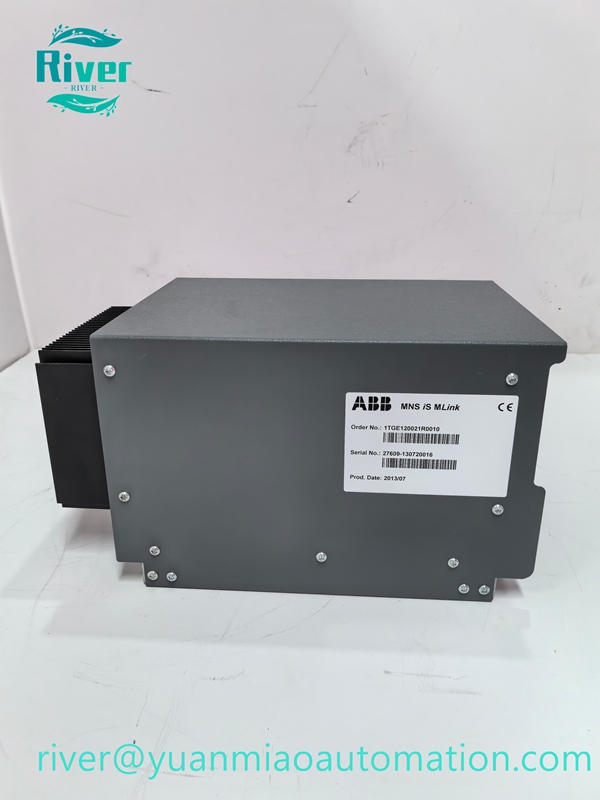

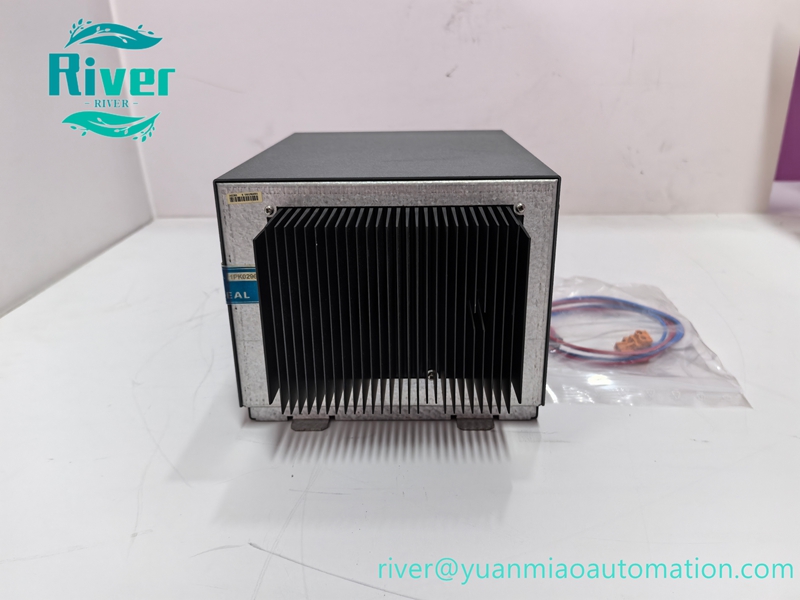

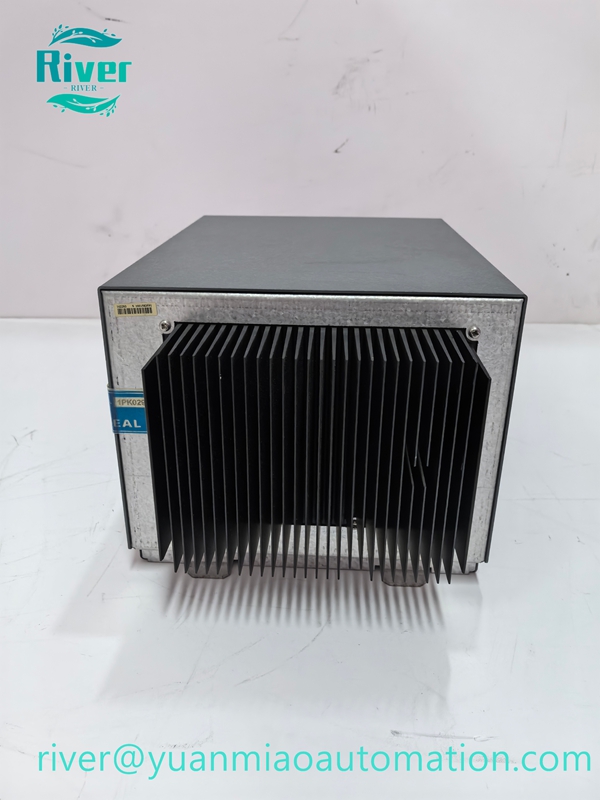

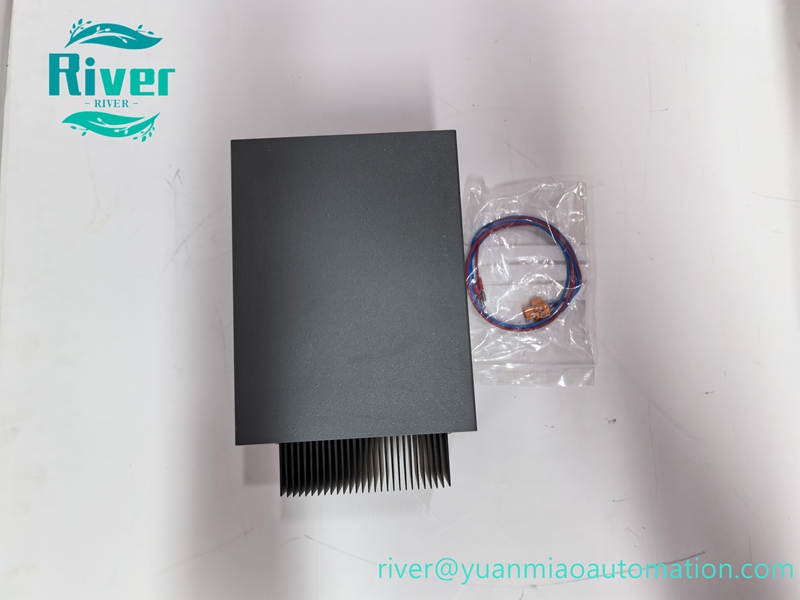

This ABB 1TGE120021R0010 MLink gateway is dedicated for ABB MNS iS low voltage switchgear to realize multi-protocol data exchange and power distribution monitoring.

Product Overview

The ABB 1TGE120021R0010 is MLink communication gateway for ABB MNS iS low-voltage switchgear system. It acts as protocol converter to transmit real-time data between switch protection units and upper SCADA/DCS system, supporting IEC61850, Modbus and other communication protocols. It is an essential spare part for intelligent power distribution cabinets.

Key Features

• Special communication gateway for ABB MNS iS switchgear
• Supports IEC61850 GOOSE/MMS, Modbus TCP/RTU
• Dual 10/100Mbps Ethernet ports + isolated RS485 interface
• Real-time data collection, event recording and fault diagnosis
• High message throughput with low transmission delay
• LED status indicators for fast troubleshooting

• Rugged cabinet mounting design for power distribution room

•


Technical Specifications

• Part Number: 1TGE120021R0010
• Model: MLink Communication Gateway
• Power Supply: 24~48VDC
• Ethernet: 2 × 10/100Mbps RJ45
• Serial Port: Isolated RS485
• Operating Temperature: 0℃ ~ +60℃
• Protection Grade: IP20

• Mounting: Cabinet rack mount

•


Compatibility & Application

Compatible with ABB MNS iS low voltage motor control center and switchgear. Widely applied in power plants, industrial parks, petrochemical plants for intelligent low-voltage power distribution monitoring and control.
