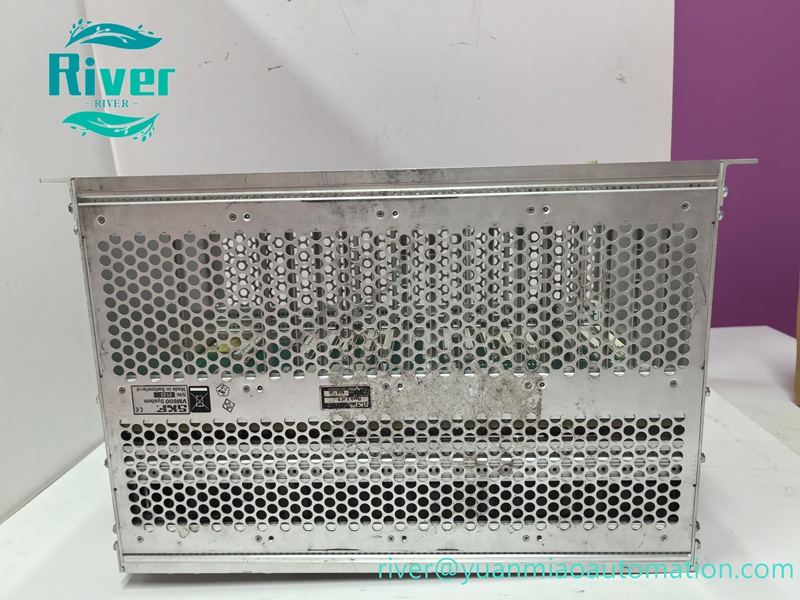

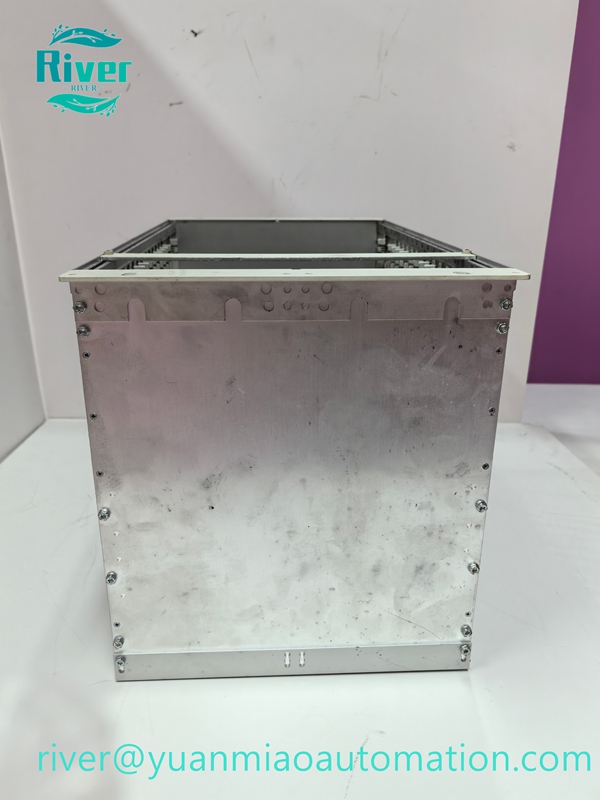

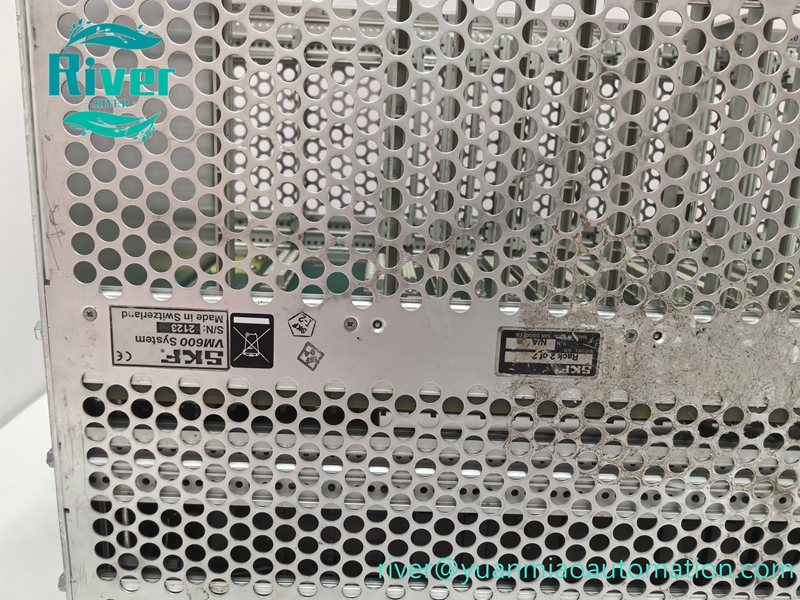

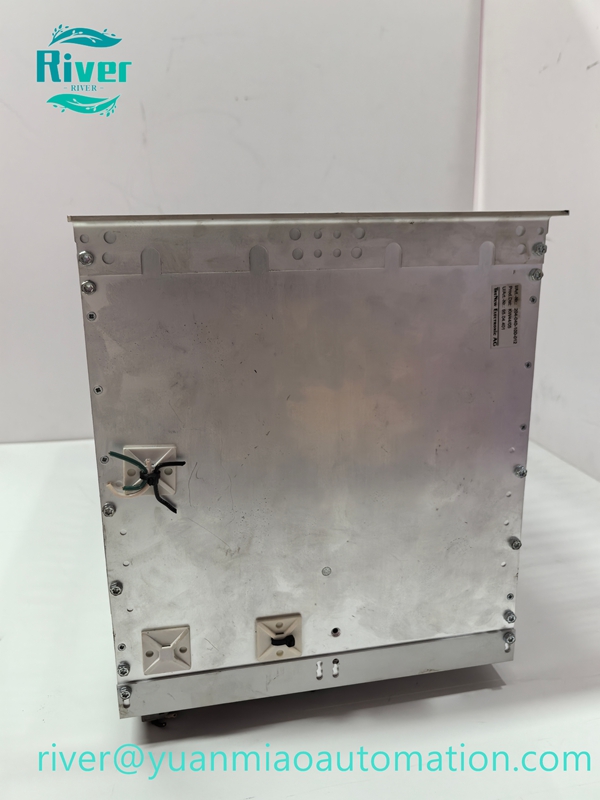

This Vibro-Meter 204-040-100-012 is ABE040 19-inch 6U rack for VM600 machinery protection system with integrated VME backplane.

Product Overview

The Vibro-Meter 204-040-100-012 (ABE040) is a 19-inch 6U system rack for the Meggitt VM600 machinery condition monitoring and protection system. It is equipped with VME backplane to supply power and signal interconnection for multiple VM600 measurement, CPU and I/O cards, widely used for rotating equipment monitoring in power plants.

Key Features

• 19 inch 6U standard cabinet rack for VM600 series
• Integrated VME backplane for power and signal routing
• Supports up to 15 single-width VM600 modules
• Dual power supply slot for redundant power configuration
• High mechanical stability, anti-vibration design
• Hot swap capability for installed cards
• Status LED indicators for power and rack health

• Compliant with IEC61508 SIL rated machinery protection system

•


Technical Specifications

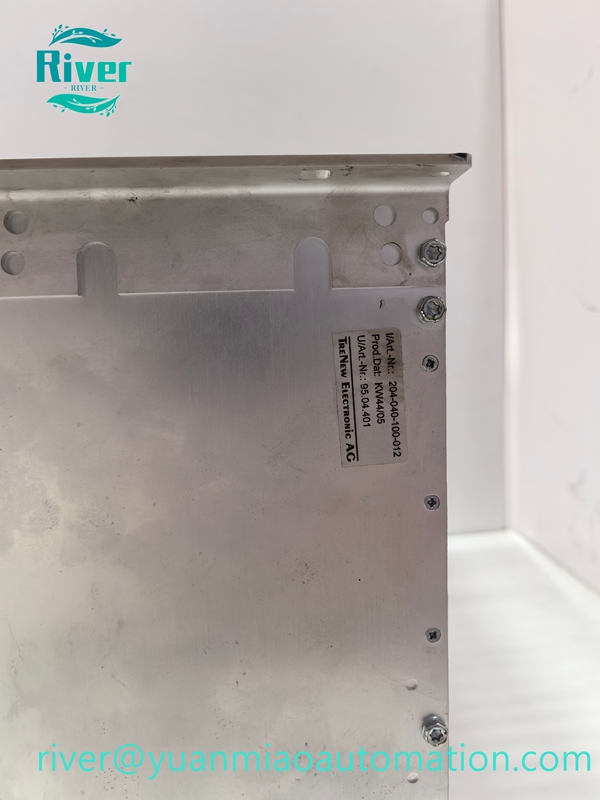

• Part Number: 204-040-100-012
• Model: ABE040
• Brand: Vibro-Meter (Meggitt)
• Series: VM600
• Rack Size: 19”, 6U
• Backplane: VME bus
• Mounting: Cabinet rack mount
• Operating Temperature: 0℃ ~ +60℃

• Power Input: Supports redundant 24VDC power supply modules

•


Compatibility & Application

Compatible with all VM600 series cards including MPC4, IOC4T, CPU modules. Mainly applied in gas turbine, steam turbine, generator and large rotating machinery in power, oil & gas industries for machinery protection and vibration monitoring.
