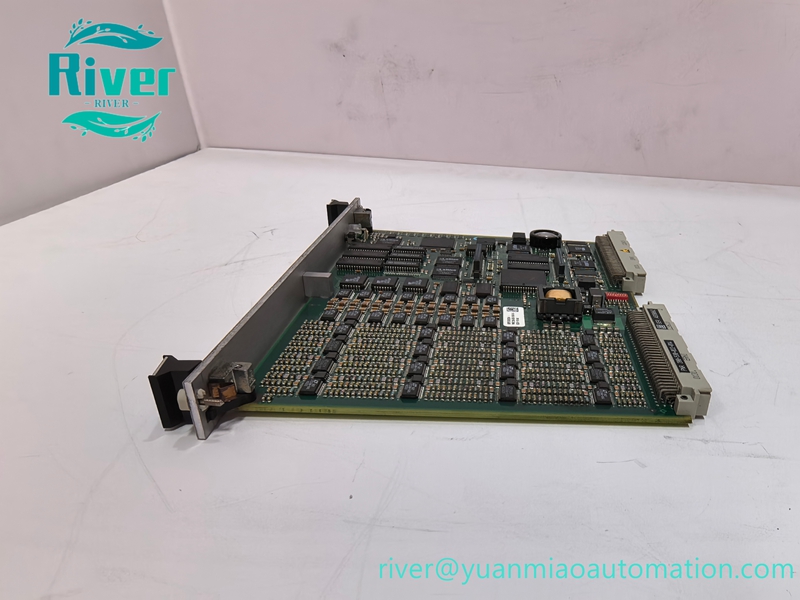

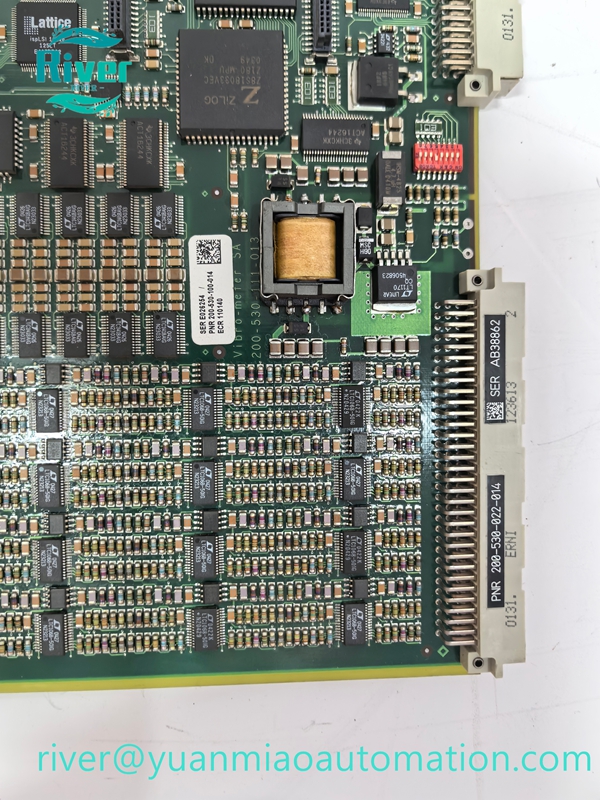

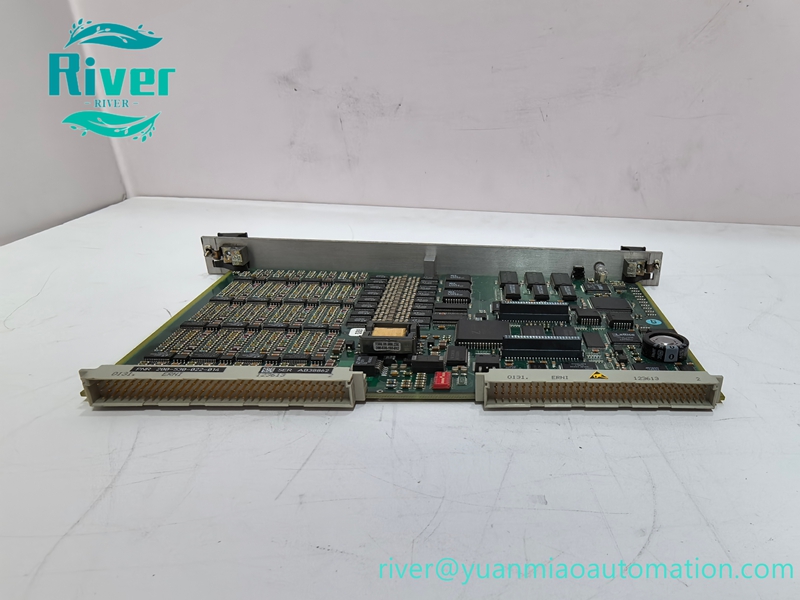

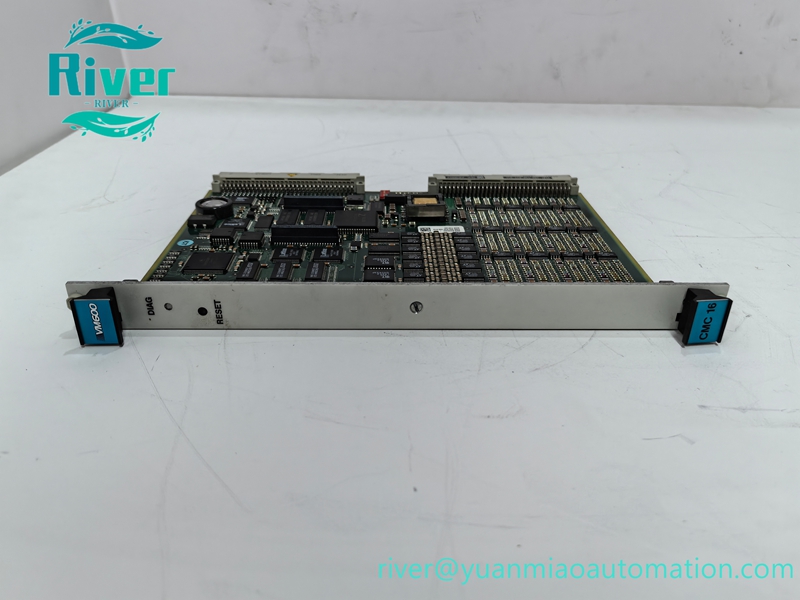

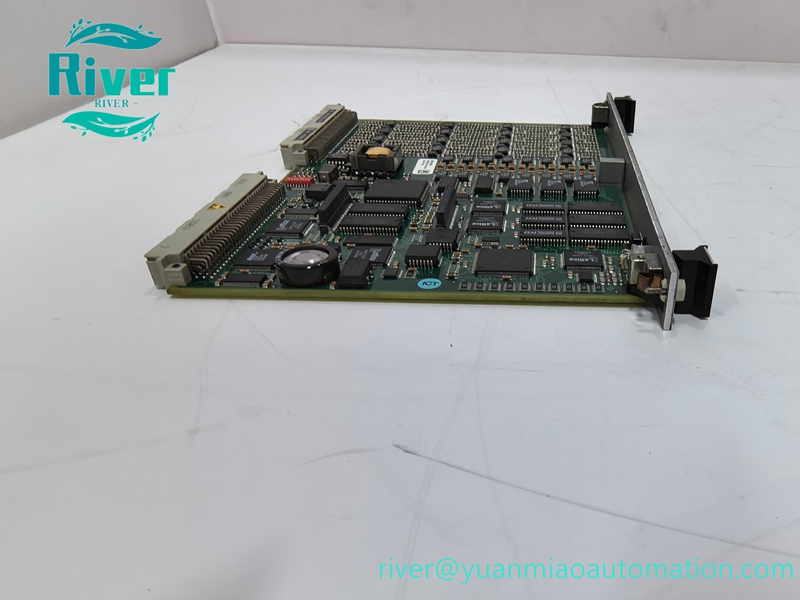

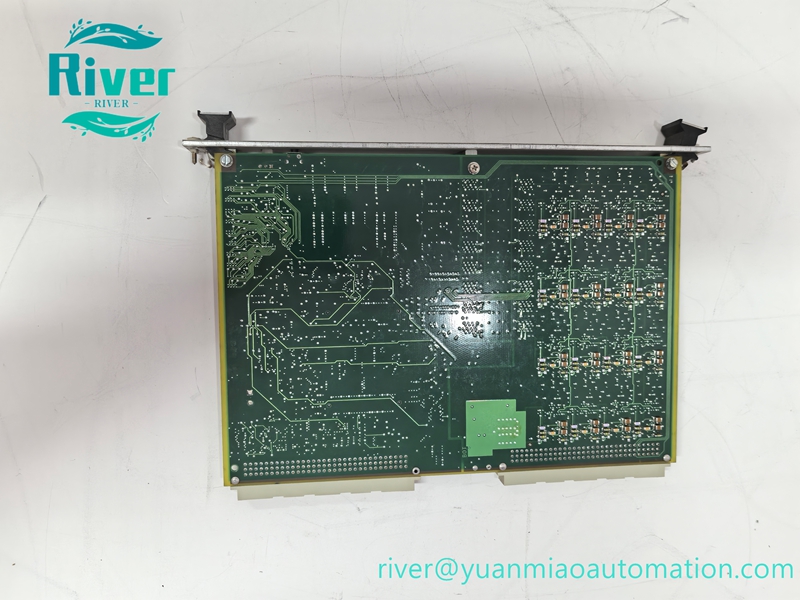

This Vibro-Meter CMC16 200-530-111-013 is a 16-channel condition monitoring card for Meggitt VM600 system for vibration acquisition and spectral analysis of rotating machinery.

Product Overview

The Vibro-Meter CMC16 with part number 200-530-111-013 is a 16-channel condition monitoring card for Meggitt VM600 machinery protection and monitoring system. It collects dynamic vibration signals from field sensors, performs on-board FFT spectral analysis, tracks vibration trends and identifies early mechanical faults for predictive maintenance. It works together with MPC4 protection cards in the same VM600 rack.

Key Features

• 16 configurable dynamic input channels for vibration, speed and dynamic pressure
• Onboard FFT analysis and waveform recording for machinery diagnostic
• High precision ADC with electrical isolation to suppress interference
• Supports Modbus TCP and proprietary VM600 bus communication
• Hot swappable within VM600 rack for online maintenance
• LED indicators for channel status and module health
• Compliant with IEC61508 SIL2 and API670 standard

• Rugged industrial design for continuous 24/7 operation

•


Technical Specifications

• Part Number: 200-530-111-013
• Model: CMC16
• Brand: Vibro-Meter (Meggitt)
• Series: VM600
• Input Channels: 16 channels
• Frequency Range: 0.1Hz ~ 20kHz
• Power Supply: 24VDC
• Mounting: Plug-in card for VM600 ABE rack
• Operating Temperature: -10℃ ~ +60℃

• Weight: 0.35kg

•


Compatibility & Application

Compatible with VM600 series rack ABE040, MPC4, IOC4T modules. Widely used on gas turbine, steam turbine, generator, pump and compressor in power, oil & gas industries for vibration monitoring and predictive maintenance.
