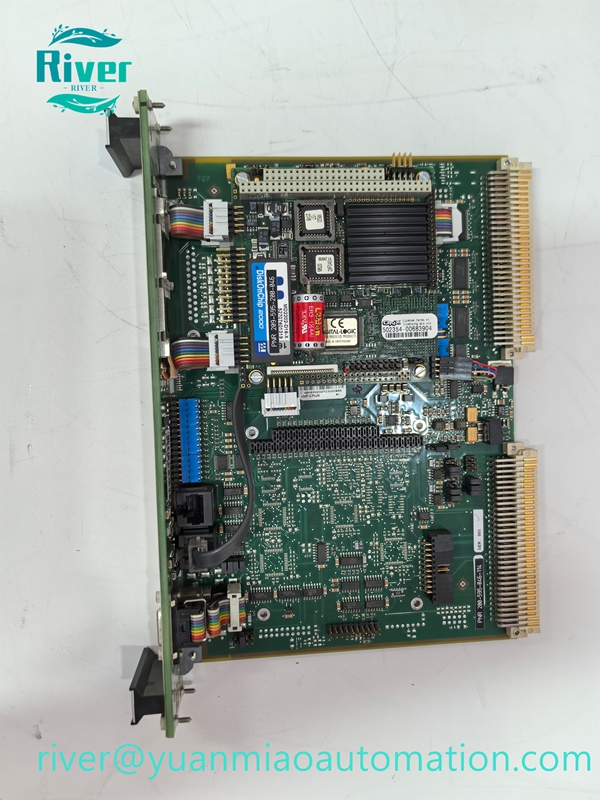

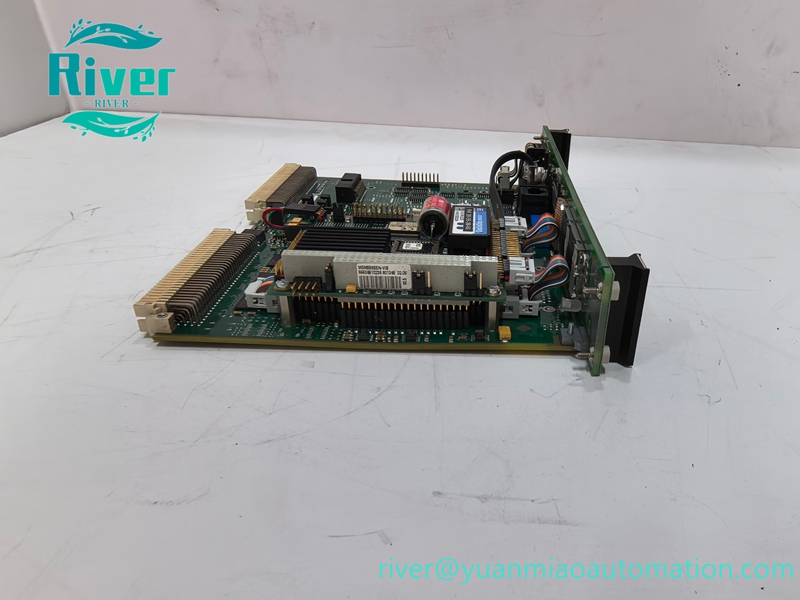

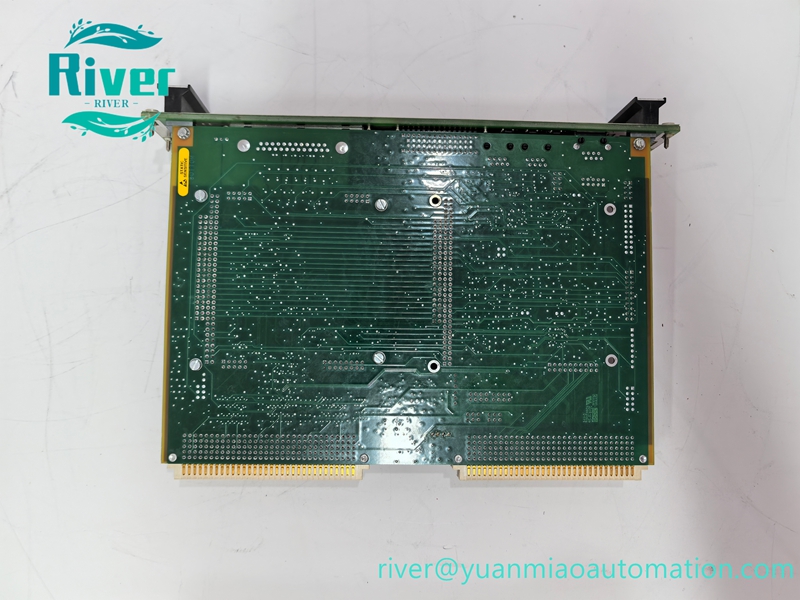

This Vibro-Meter CPUM 200-595-046-114 is rack controller and communication gateway CPU card for Meggitt VM600 machinery protection and condition monitoring system.

Product Overview

The Vibro-Meter CPUM with part number 200-595-046-114 is the rack controller CPU card for Meggitt VM600 machinery protection system. It coordinates all measurement and protection cards inside the VM600 rack, aggregates vibration data, handles alarm logic and acts as communication gateway to upper DCS, PLC or monitoring software. It works paired with IOCN I/O card and features front panel display for local status viewing.

Key Features

• Central rack controller for VM600 MPS/CMS system
• Supports Modbus TCP/RTU and PROFINET communication protocols
• Dual Ethernet ports plus multiple serial RS232/RS485 interfaces

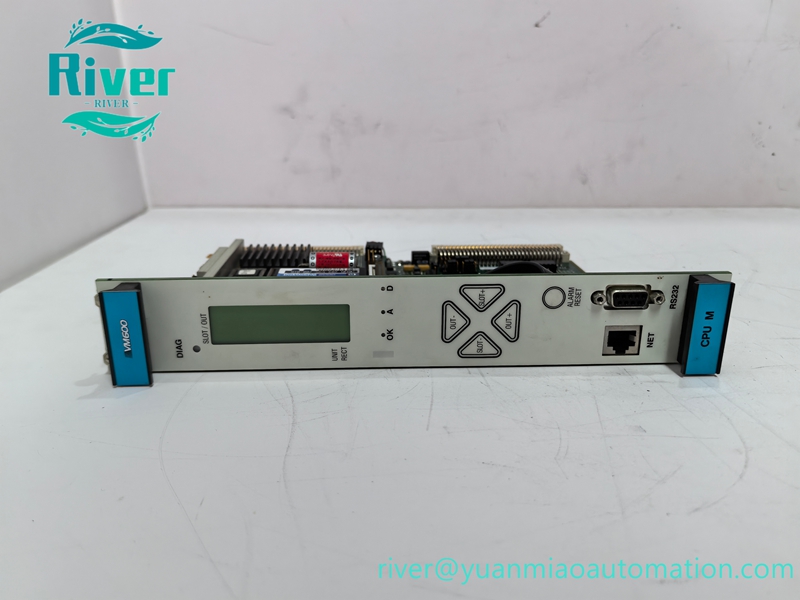

• Front LCD display and alarm reset button for local operation
• Full rack configuration management via VM600 MPSx software
• Built-in system security lock and comprehensive hardware diagnostics
• Hot swappable within VM600 ABE rack
• Stores alarm events and vibration trend data

• IEC61508 SIL compliance for machinery protection applications

•


Technical Specifications

• Part Number: 200-595-046-114
• Model: CPUM
• Brand: Vibro-Meter (Meggitt)
• Series: VM600

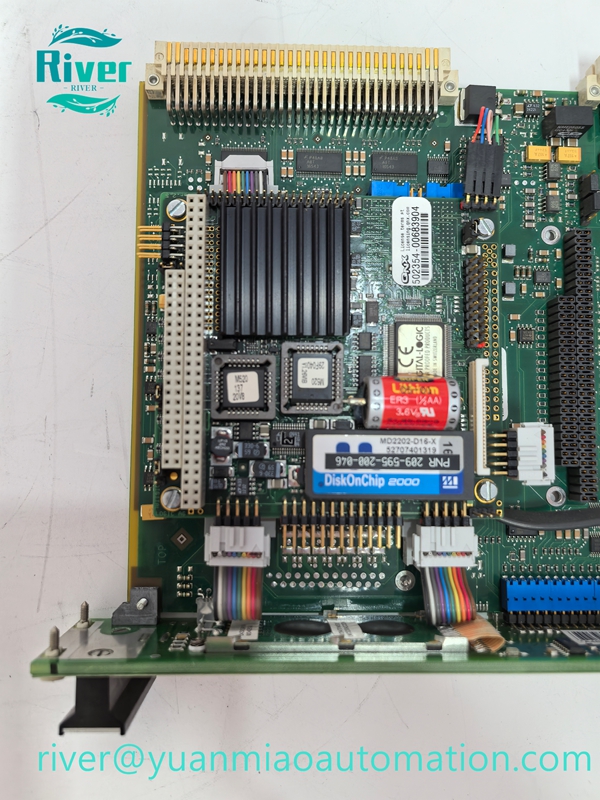

• Processor: AMD Geode LX800
• Memory: 256MB DRAM
• Communication: Dual Ethernet, RS232, RS485
• Mounting: Plug-in VME card for VM600 rack
• Power Supply: 5VDC from rack backplane
• Operating Temperature: -10℃ ~ +60℃

• Protection Grade: IP20

•


Compatibility & Application

Compatible with VM600 ABE040 rack, MPC4, CMC16, IOC4T and IOCN modules. Widely used in gas turbine, steam turbine, generator, compressor monitoring for power, oil & gas and petrochemical industries.
