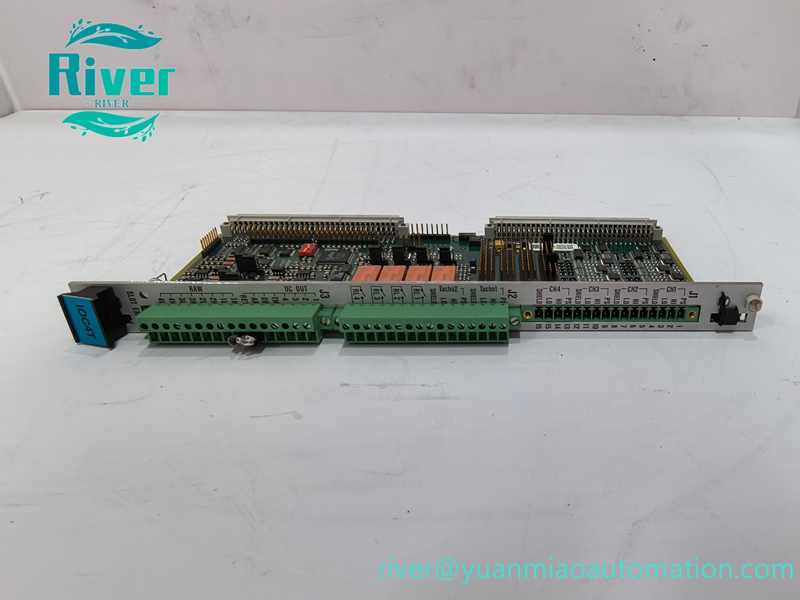

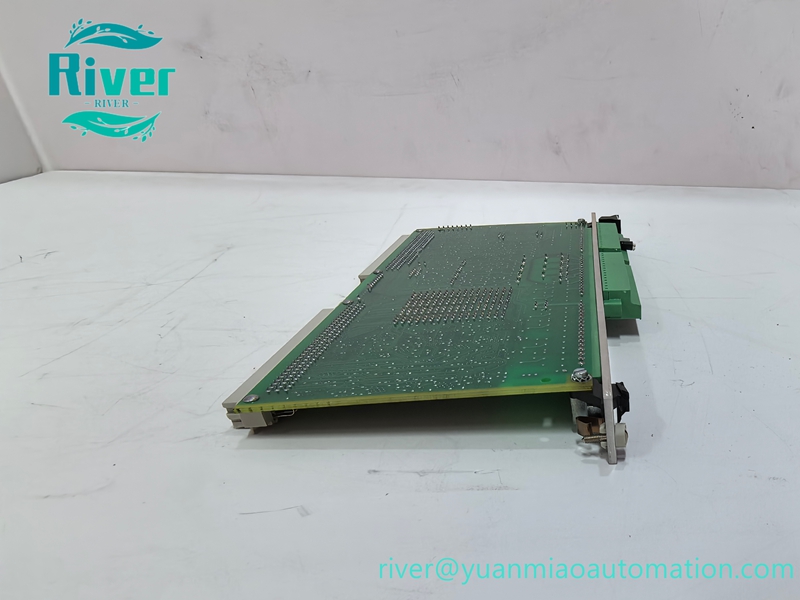

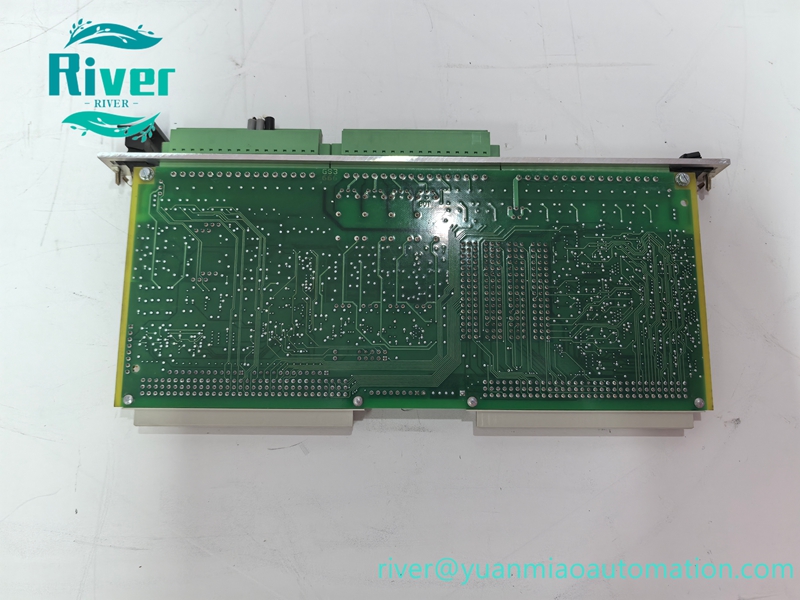

This Vibro-Meter IOC4T 200-560-101-017 rear I/O interface card works with MPC4 for VM600 machinery protection system to connect vibration sensors and external control interlocks.

Product Overview

The Vibro-Meter IOC4T (200-560-101-017) is a rear-mounted I/O interface card for Meggitt VM600 machinery protection system. It pairs one-to-one with the MPC4 protection card, receiving proximity, vibration and tachometer signals from field transducers, and provides relay alarm outputs and buffered analog signals to DCS, PLC and ESD systems. It is installed at the back of the ABE040 rack as the terminal interface for field wiring.

Key Features

• Dedicated rear I/O card matched for VM600 MPC4 protection card
• 4 dynamic signal inputs and 2 tachometer speed inputs
• 4 programmable alarm relay outputs for machinery protection
• Buffered analog signal outputs for vibration monitoring
• 32 open-collector digital outputs for external interlock logic
• Screw terminal blocks for convenient field sensor wiring
• Built-in EMC surge protection for signal channels
• Hot swappable in VM600 ABE rack

• IEC61508 SIL compliant for rotating machinery protection

•


Technical Specifications

• Part Number: 200-560-101-017
• Model: IOC4T
• Brand: Vibro-Meter (Meggitt)
• Series: VM600
• Input: 4 dynamic channels, 2 tacho channels
• Output: Relay alarm, buffered analog, open-collector digital
• Mounting: Rear plug-in card for VM600 ABE040 rack
• Power: Powered by rack backplane
• Operating Temperature: -10℃ ~ +60℃

• Protection Grade: IP20

•


Compatibility & Application

Compatible with VM600 ABE040 rack, MPC4 protection card. Widely used for gas turbine, steam turbine, generator and compressor monitoring in power plants, oil & gas and petrochemical industries for vibration protection and safety interlock.
