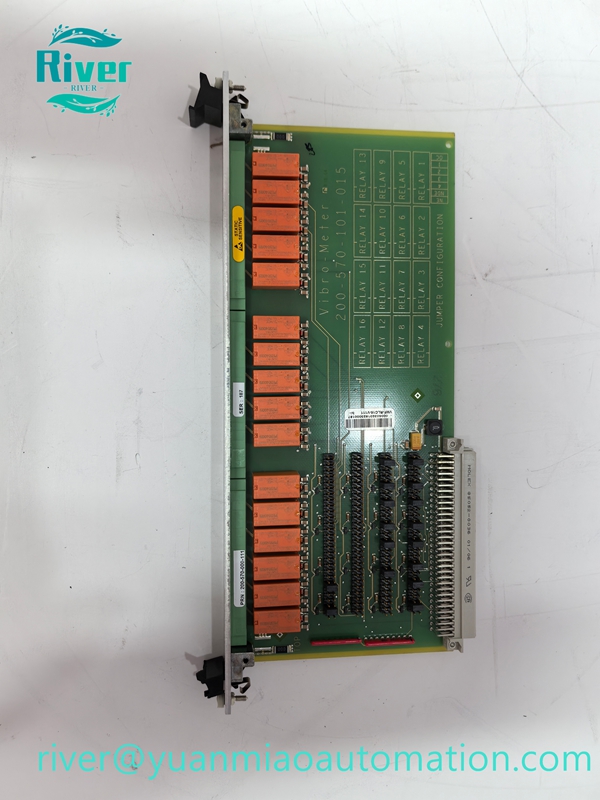

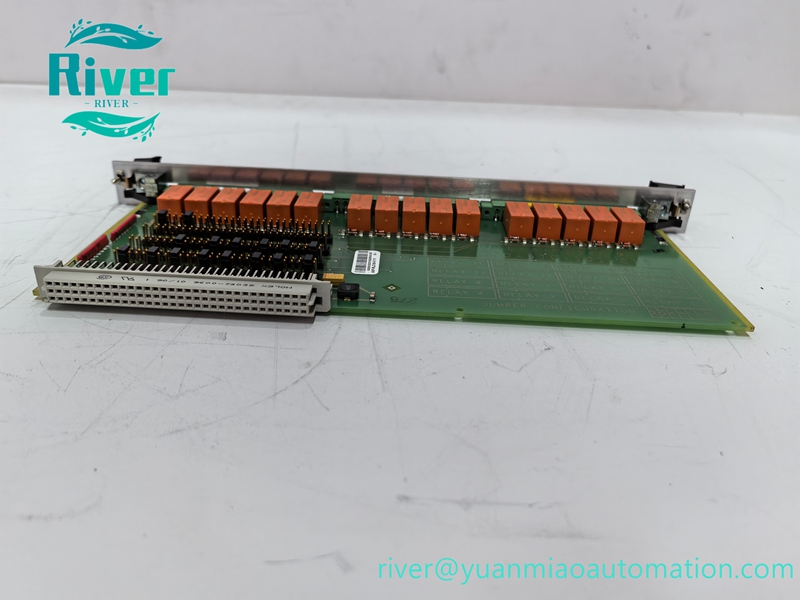

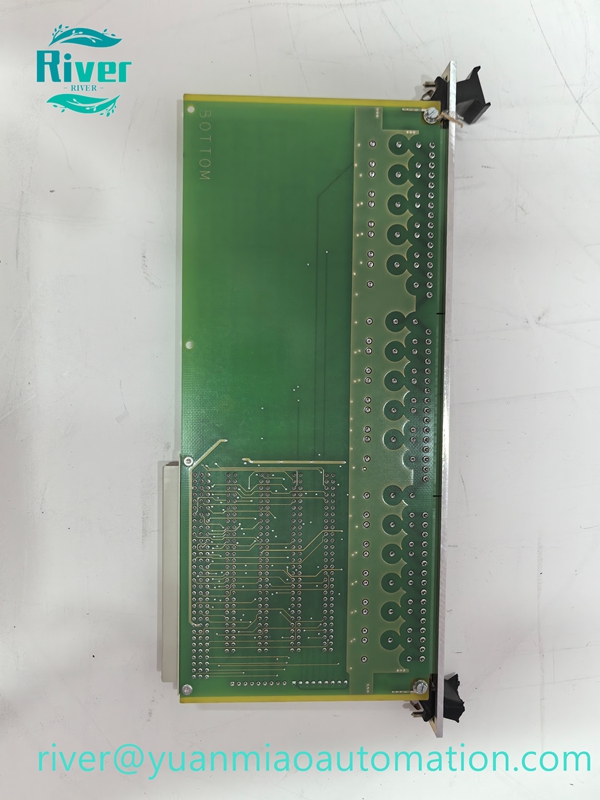

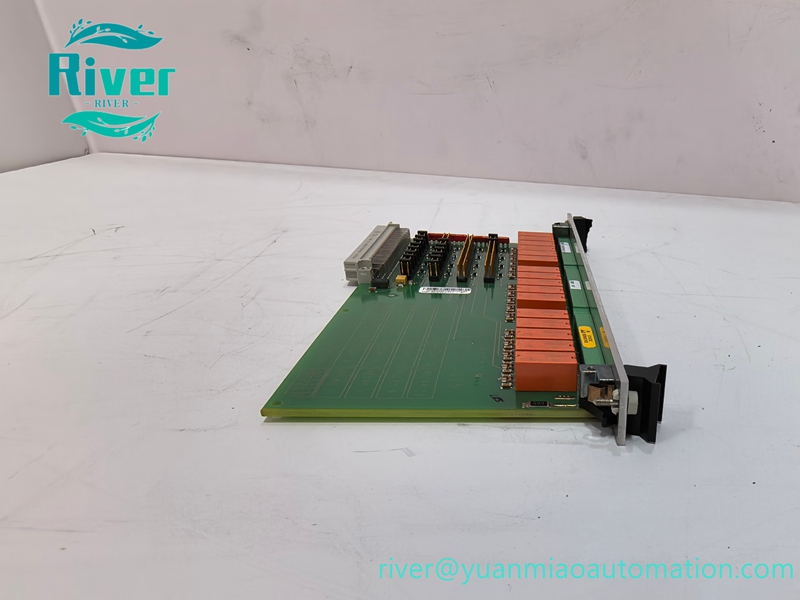

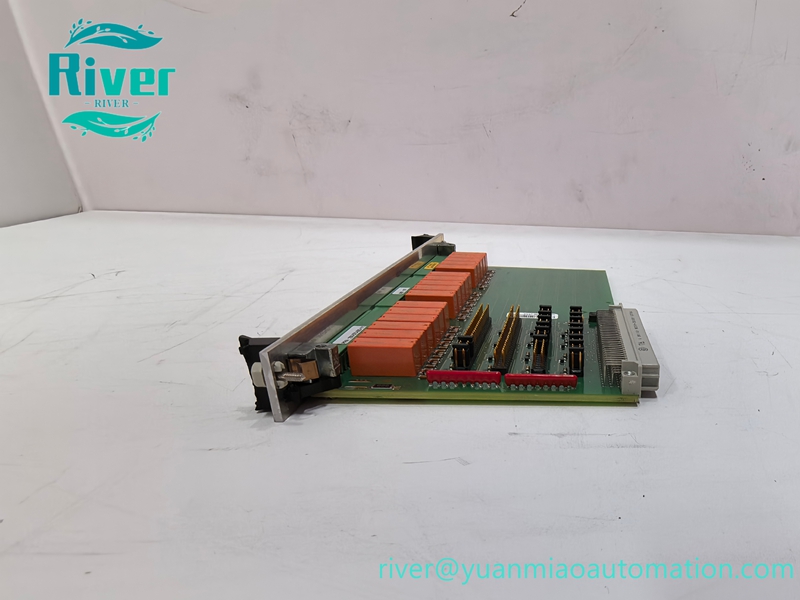

Vibro-Meter RLC16-V111 200-570-101-015 is a 16-channel relay output card for Meggitt VM600 machinery protection system, providing additional relay alarm and trip outputs for rotating equipment monitoring.

Product Overview

The Vibro-Meter RLC16-V111 200-570-101-015 relay card is an optional extension module for Meggitt VM600 machinery protection system. It supplies 16 relay change-over contacts to expand alarm and trip signals when the built-in relays on IOC4T are insufficient. Installed at the rear of VM600 rack ABE04x / ABE056, it connects to rack backplane and controlled by MPC4 processor module, widely used for turbine, compressor and generator vibration protection.

Key Features

• 16 channels relay change-over contacts for alarm and trip output
• Supports relay mode selection: normally energized or normally de-energized via onboard jumpers
• Screw terminal design for easy field wiring
• Installed on rear side of VM600 rack, connects directly to backplane
• Controlled by MPC4 series processor module
• Designed for rotating machinery protection and condition monitoring
• Industrial rugged hardware for heavy-duty power & oil & gas sites

• LED indicators for relay status diagnosis

•


Technical Specifications

• Brand: Vibro-Meter (Meggitt)
• Model: RLC16-V111
• Part No: 200-570-101-015
• System: VM600 Machinery Protection System
• Relay quantity: 16 relays, SPDT changeover
• Mounting: Rear slot of ABE04x / ABE056 rack
• Control: Managed by MPC4 processor card
• Application: Vibration alarm, machine trip protection

• Certification: CE, UL

•


Compatibility & Application

Compatible with VM600 rack ABE04x / ABE056, MPC4 processor module, IOC4T input/output cards and other VM600 series monitoring cards. Mainly applied in steam turbine, gas turbine, centrifugal compressor, generator, pump and other rotating machinery protection in power plant, oil & gas, petrochemical industry.
