Vibro-Meter SIM-275A 200-582-500-013 is RPS6U rack power supply module for Meggitt VM600 machinery protection system, supplying stable +5VDC and ±12VDC power for all monitoring cards inside VM600 rack.

Product Overview

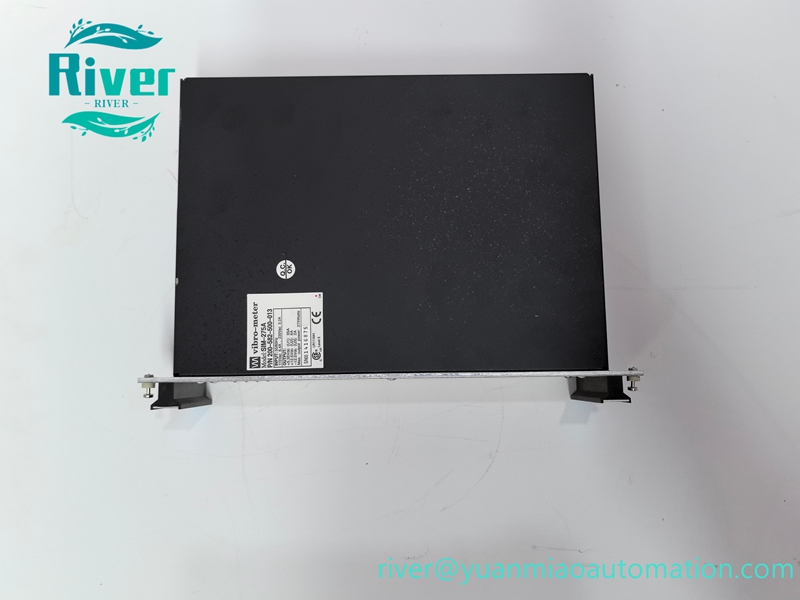

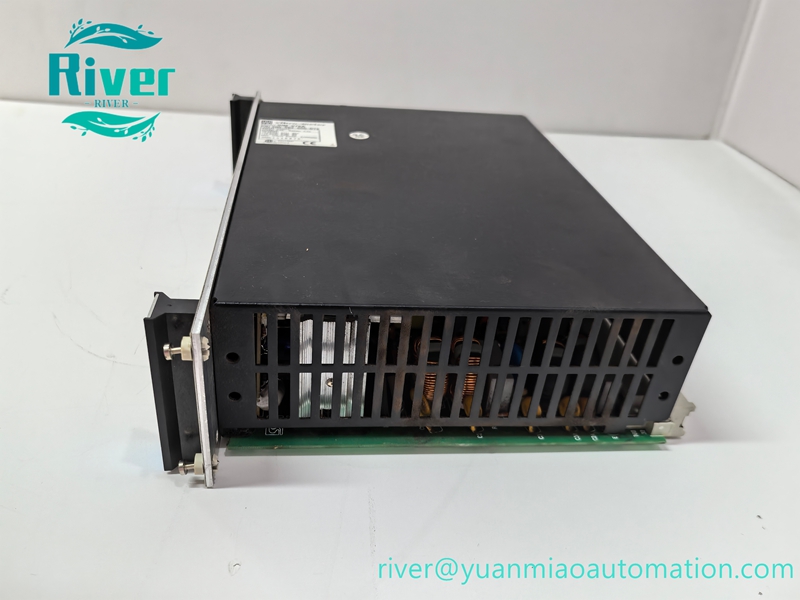

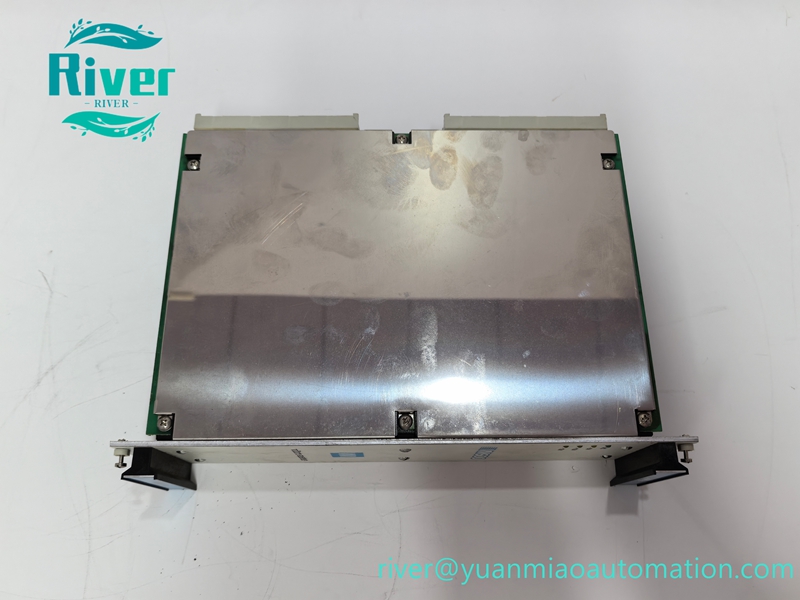

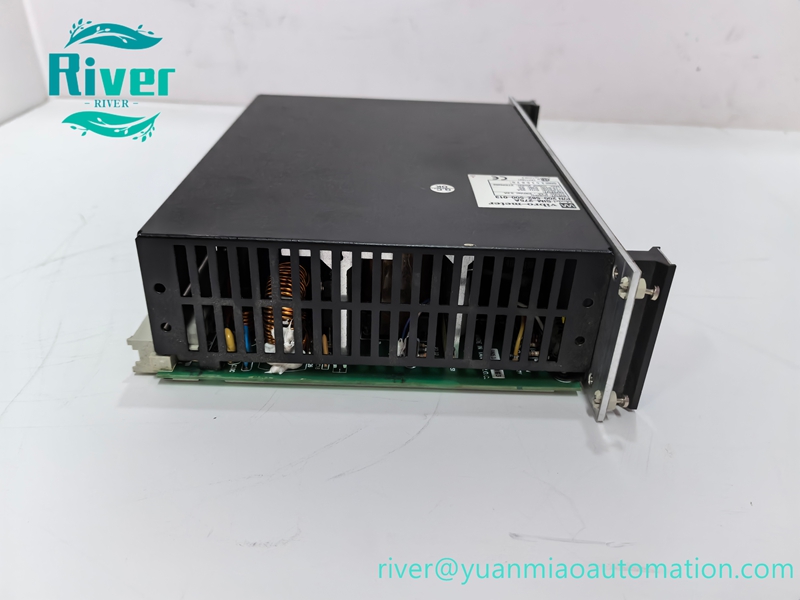

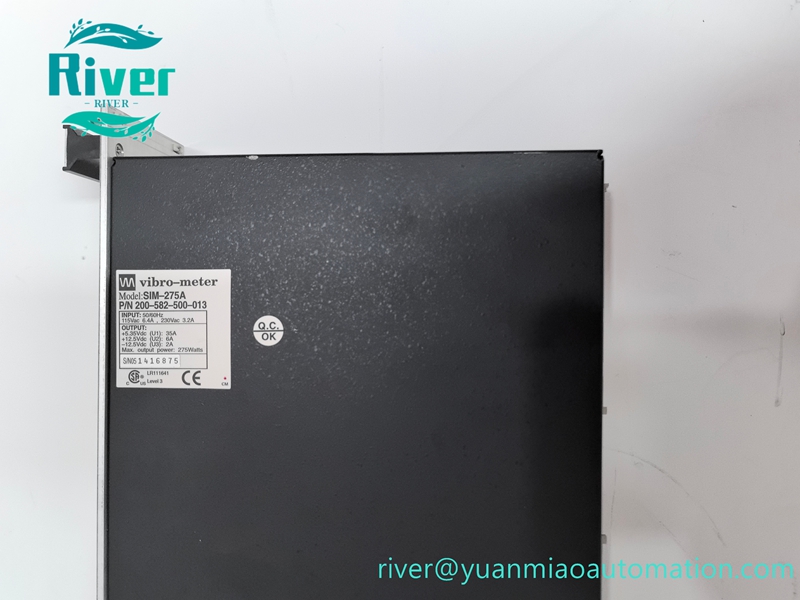

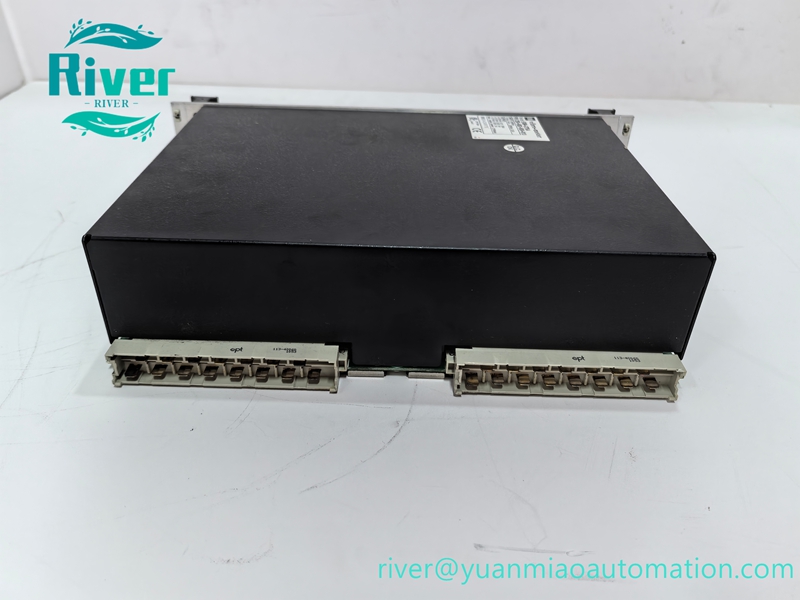

The Vibro-Meter SIM-275A 200-582-500-013 (RPS6U) is a 6U rack power supply unit dedicated to the Meggitt VM600 machinery protection system. It delivers regulated +5VDC and ±12VDC to feed MPC4, IOC4T, RLC16 and other monitoring cards in the VM600 chassis. It supports redundant power configuration to enhance system reliability, with built-in overvoltage, overcurrent and short-circuit protection, widely used for turbine and compressor vibration monitoring racks.

Key Features

• 330W high-power rack power supply for VM600 6U chassis
• Output: +5VDC and ±12VDC regulated power for backplane
• Supports redundant AC / DC input for high availability
• Built-in overvoltage, overcurrent, short-circuit protection
• Direct plug-in to VM600 ABE04x / ABE056 rack backplane
• Industrial rugged design, suitable for power, oil & gas harsh site
• LED status indicators for power health diagnosis

• Hot swappable for maintenance without system shutdown

•


Technical Specifications

• Brand: Vibro-Meter (Meggitt)
• Model: SIM-275A (RPS6U)
• Part No: 200-582-500-013
• System: VM600 Machinery Protection System
• Max Output Power: 330W
• Output Voltage: +5VDC, ±12VDC
• Input: AC / DC dual input options
• Operating temperature: -20℃ ~ +60℃
• Mounting: 6U rack slot for VM600 chassis

• Certification: CE, UL

•


Compatibility & Application

Compatible with VM600 ABE04x / ABE056 rack, MPC4 processor card, IOC4T I/O card, RLC16 relay card and all VM600 series monitoring modules. Mainly used in steam turbine, gas turbine, centrifugal compressor, generator rotating machinery protection in power plant, petrochemical and oil & gas industry.
