ABB 500SCM01 is signal conditioning module for REB500 busbar protection system, responsible for signal filtering, isolation and time‑synchronization signal processing, widely used for substation relay protection spare replacement parts.

Product Overview

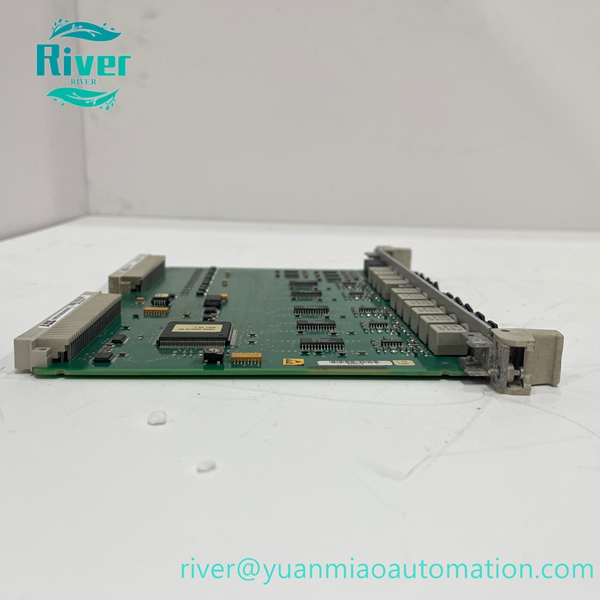

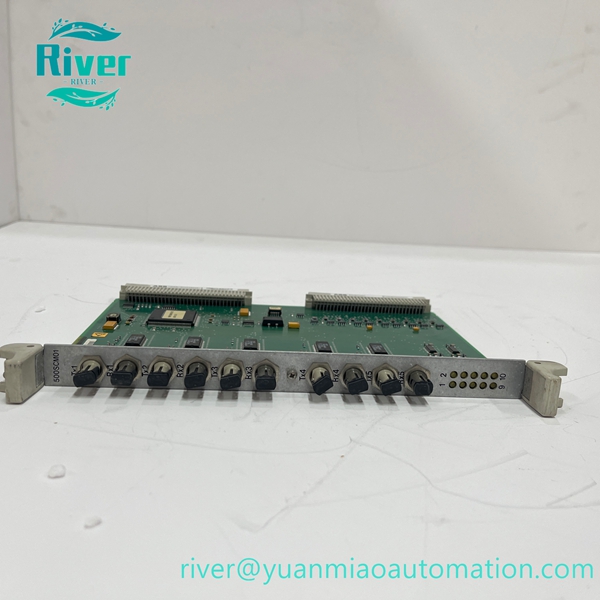

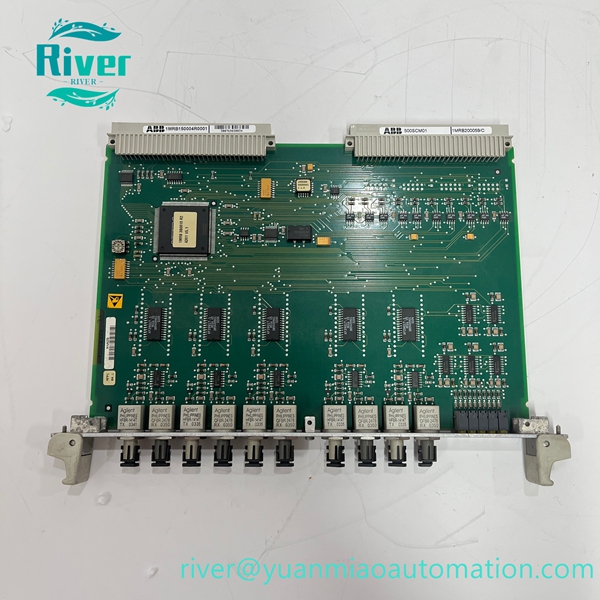

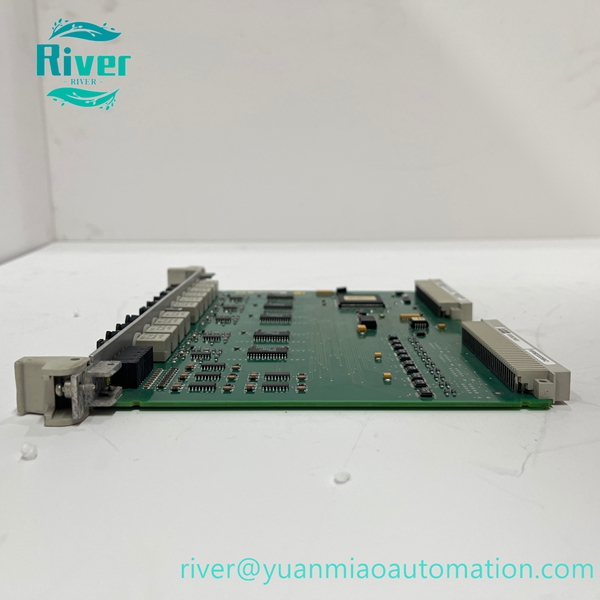

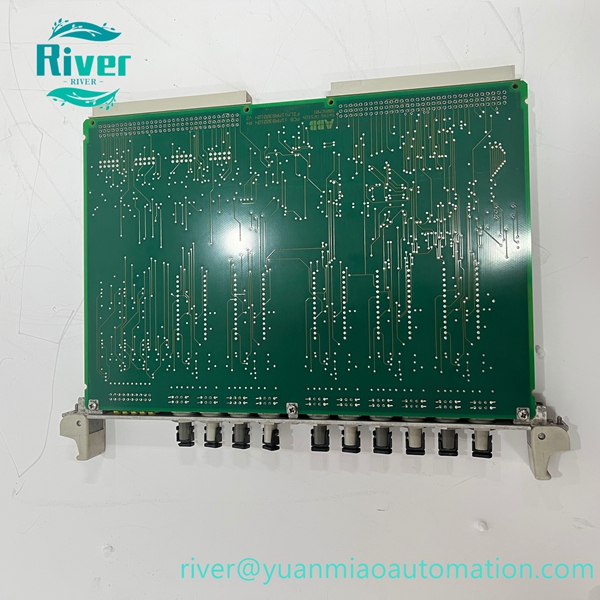

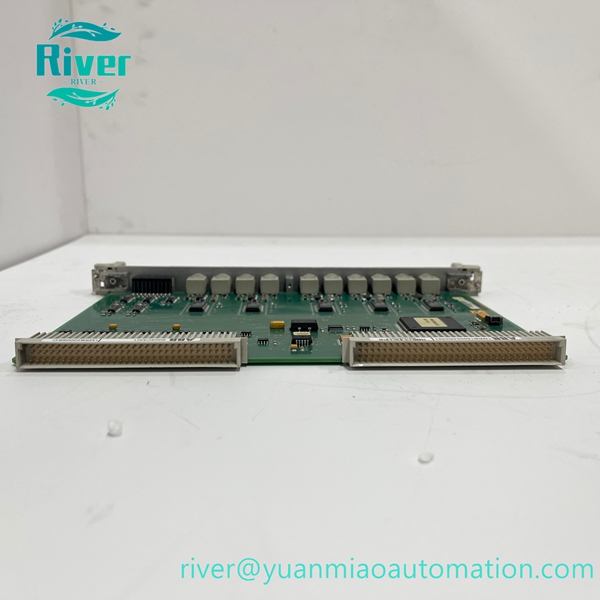

ABB 500SCM01 with part numbers 1MRB200059C and 1MRB15004R0001 is a dedicated signal conditioning module for ABB REB500 busbar protection system. It realizes signal filtering, surge suppression and galvanic isolation for external auxiliary signals and time‑synchronization signals input to the protection rack. It converts field signals into stable signals that can be identified by CPU unit, effectively suppresses high‑frequency interference and lightning surge from substation field wiring. It supports time synchronization signal access, ensures time consistency of fault recording and event log for the whole set of protection equipment. Conformal coated circuit board, rack plug‑in structure, it is an important spare hardware for high‑voltage busbar protection equipment.

Key Features

• Professional signal conditioning, filtering high‑frequency noise and restraining field surge interference
• High‑voltage galvanic isolation design, protects internal circuit from substation electromagnetic disturbance
• Support time synchronization signal processing, guarantee unified time stamp for fault records and events
• Built‑in hardware self‑diagnosis function, real‑time monitoring module working status
• Rack plug‑in installation, convenient for on‑site inspection and spare‑part replacement
• Conformal coating treatment, adapt to humid, dusty and strong electromagnetic substation environment

• Compliant with IEC 60255 relay protection standard, support long‑term stable continuous operation

Technical Specifications

• Manufacturer: ABB
• Model: 500SCM01

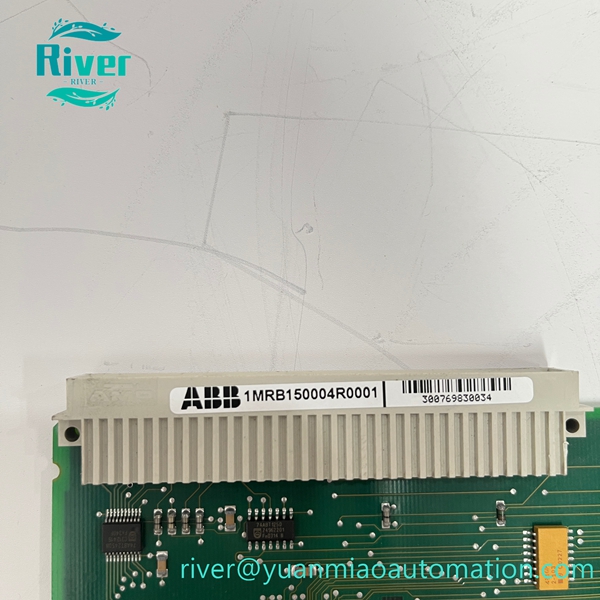

• Part No: 1MRB200059C, 1MRB15004R0001
• Application Object: REB500 busbar protection system
• Installation: Rack plug‑in
• Power Supply: Powered by system backplane
• Isolation Voltage: 2.5kV AC
• Operating Temperature: ‑10℃ ~ +55℃
• Protection Class: IP20 (cabinet installation)
• Certification: IEC 60255, CE

• Main Function: Signal conditioning, surge suppression, time‑synchronization signal processing

•


Compatibility & Application

Compatible with ABB REB500 series chassis, cooperate with 500CPU05, 500BIO01, 500CIM05 and other modules. Mainly used in power plant, high‑voltage substation and power transmission projects, applied for signal conditioning and time synchronization processing of busbar protection devices, used as maintenance spare‑part replacement for relay protection equipment.
