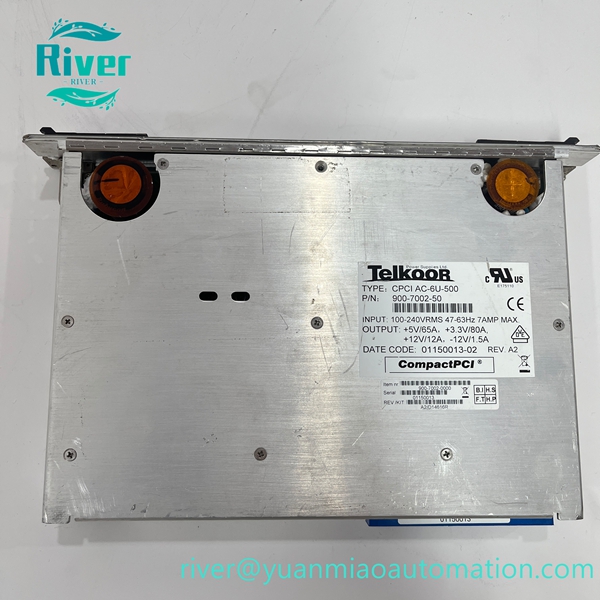

TeIKOOR CPCIAC‑6U‑500 900‑7002‑10 is 6U CompactPCI AC‑DC power supply module with 500W rated output, designed for CCC compressor control system, widely used for industrial rack power spare replacement parts.

Product Overview

TeIKOOR CPCIAC‑6U‑500 with part number 900‑7002‑10 is high‑reliability 6U CompactPCI hot‑swap AC power supply module. It is specially developed for CCC VANGUARD compressor anti‑surge control system and standard CPCI industrial chassis. It converts wide‑range AC input into multiple groups of standard CPCI DC output voltages to supply power for backplane, CPU board, data acquisition and communication cards inside the rack. Built‑in active power factor correction and complete protection circuit, front‑panel LED indicators show power‑good and fault status. Hot‑swap plug‑in design supports redundant power configuration, it is critical spare power component for compressor control and industrial CPCI computer systems.

Key Features

• 500W continuous rated power, comply with PICMG 2.11 CompactPCI power supply standard
• Wide universal AC input 85‑264VAC, auto‑range, built‑in active PFC function
• Provide standard CPCI multi‑channel DC output: +3.3V, +5V, +12V, ‑12V
• Hot‑swap support, redundant parallel operation available for high‑availability system
• Comprehensive protection: over‑voltage, over‑current, short‑circuit, over‑temperature protection
• Front‑panel LED status indicators for power‑good and fault alarm
• 6U CompactPCI rack plug‑in structure, convenient on‑site replacement and maintenance

• High efficiency design, adapt to long‑term continuous operation of industrial control equipment

•


Technical Specifications

• Manufacturer: TeIKOOR
• Model: CPCIAC‑6U‑500
• Part No: 900‑7002‑10
• Input Voltage: 85‑264 VAC auto‑range
• Input Frequency: 47‑63Hz
• Rated Output Power: 500W
• Output Voltage: +3.3V, +5V, +12V, ‑12V
• Form Factor: 6U CompactPCI
• Installation: Rack plug‑in, hot‑swappable
• Operating Temperature: ‑5℃ ~ +55℃ (forced air cooling)
• Compliance: PICMG 2.11, UL 60950, EN‑60950, CE

• Application: CCC compressor control system, CompactPCI industrial rack power supply

•


Compatibility & Application

Compatible with CCC VANGUARD compressor anti‑surge control chassis and standard 6U CompactPCI backplane rack. Mainly applied in petrochemical, oil‑gas industry compressor control equipment, industrial CPCI computer system, used for power supply maintenance and spare‑part replacement.
