Prosoft RLX2-IFH24E is a 2.4GHz frequency hopping spread spectrum industrial wireless radio, supports point-to-point, point-to-multipoint and repeater mode, with 128-bit AES encryption, designed for long-distance SCADA and industrial Ethernet communication in harsh environments.

Product Overview

Prosoft RLX2-IFH24E belongs to RadioLinx FH series industrial frequency hopping wireless radio. It operates on license-free 2.4GHz band, adopting proprietary frequency hopping technology to provide stable long-range wireless Ethernet communication. The unit can be configured as master, remote or repeater station, equipped with smart switch function to realize virtual peer-to-peer packet switching. It is widely deployed in industrial SCADA, remote process control and field automation systems for reliable wireless data transmission under electromagnetic interference conditions.

Key Features

• Frequency Hopping Spread Spectrum (FHSS) technology, strong anti-interference capability
• 2.4 GHz license-free ISM band: 2.400 ~ 2.4835 GHz
• Supports point-to-point, point-to-multipoint and store-and-forward repeater topology
• 128-bit AES encryption for secure industrial data transmission
• Programmable data rate: 1.1 Mbps / 345 kbps optional
• Smart switch for virtual peer-to-peer communication
• 32-bit CRC and ARQ automatic retransmission for error correction
• Configurable via ControlScape FH software, supports OPC diagnostic server

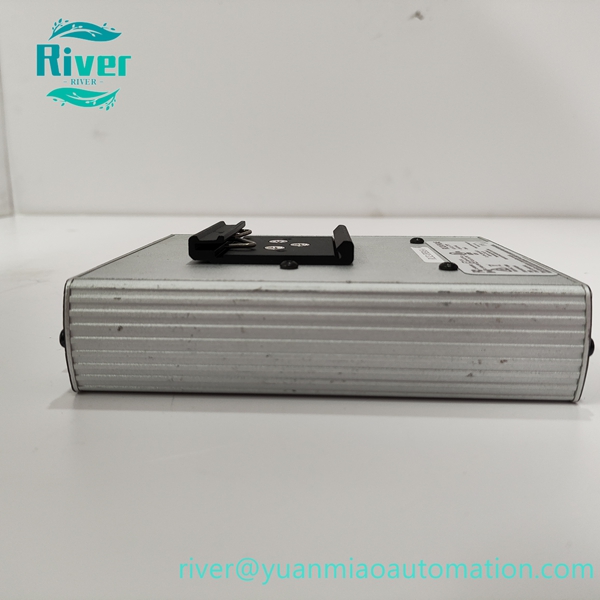

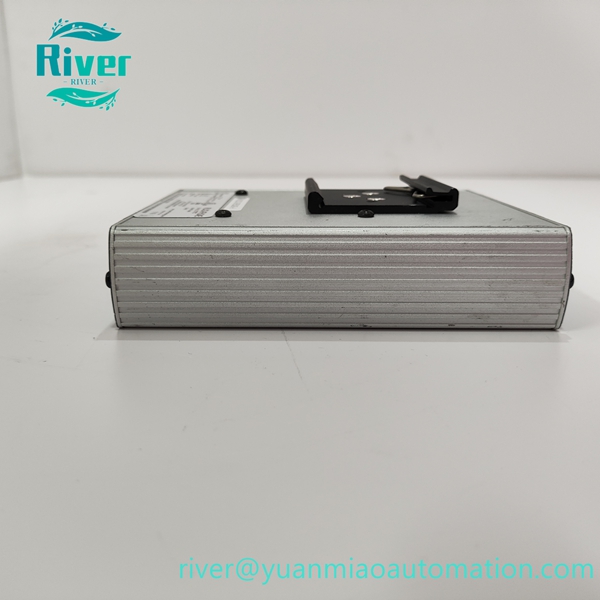

• Aluminum extrusion housing, DIN rail or panel mounting
• E model transmit power: 10mW ~ 100mW programmable

Technical Specifications

• Model: RLX2-IFH24E
• Product Type: Industrial FHSS Ethernet Radio
• Frequency Range: 2.400 ~ 2.4835 GHz

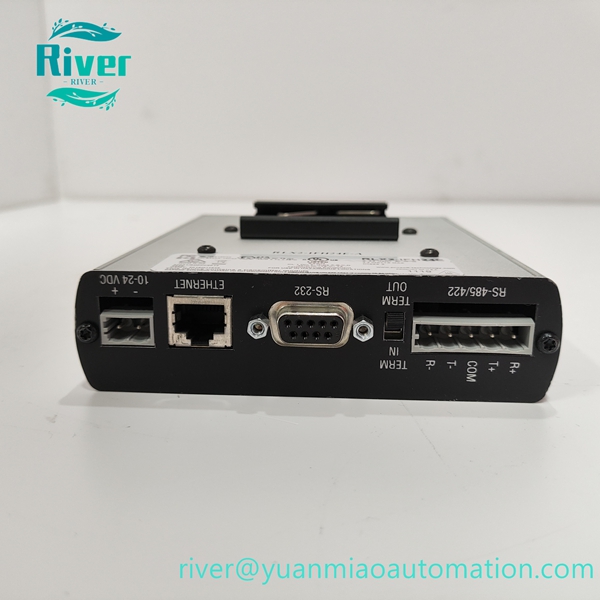

• Interface: 10/100 Base-T Ethernet
• Max Outdoor Range: over 15 miles with directional antenna and line-of-sight
• Receiver Sensitivity: -97dBm@1.1Mbps, -104dBm@345kbps
• Power Supply: 10 ~ 24 VDC

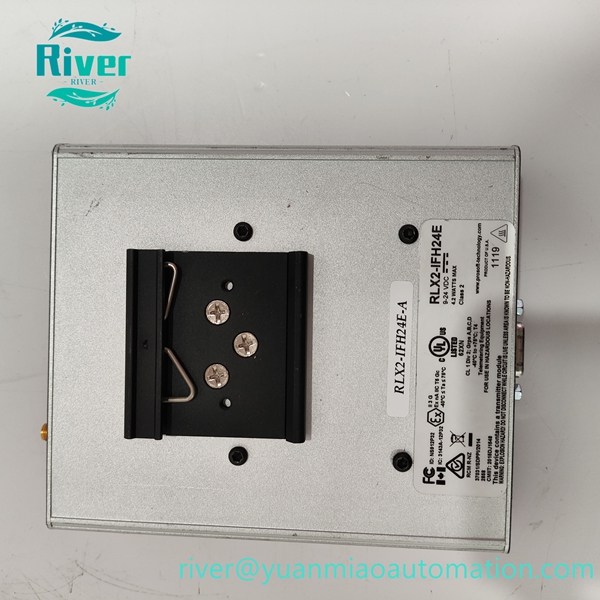

• Mounting: DIN rail / panel mount
• Protocol: Standard IEEE 802.3, compatible with Modbus TCP, EtherNet/IP
• Security: 128-bit AES encryption

Compatibility & Application

Compatible with Prosoft RadioLinx series wireless network equipment, PLC, RTU and SCADA host systems. Applied in oil & gas, water treatment, power plant, mining remote monitoring, long distance industrial wireless Ethernet communication and field data acquisition.
