Rockwell TC-302-02-4M0 is a 4-meter pre-terminated remote expander cable for Rockwell Trusted T8000 safety system, used to connect T8312 expander interface module and T8314 fibre TX/RX unit for high-speed PECL signal transmission.

Product Overview

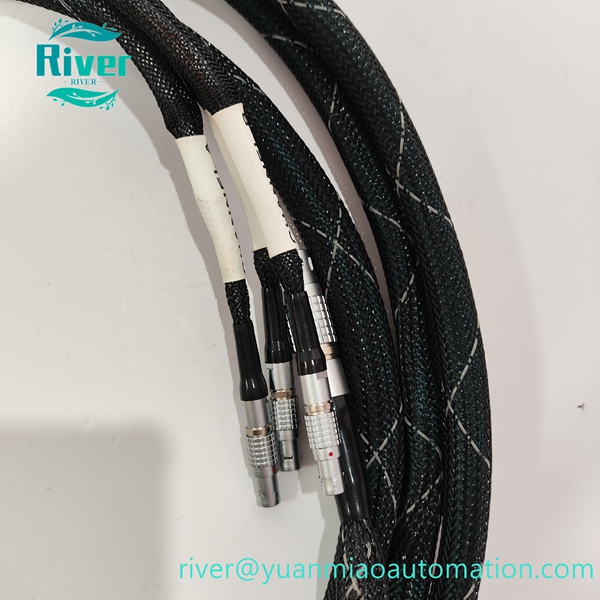

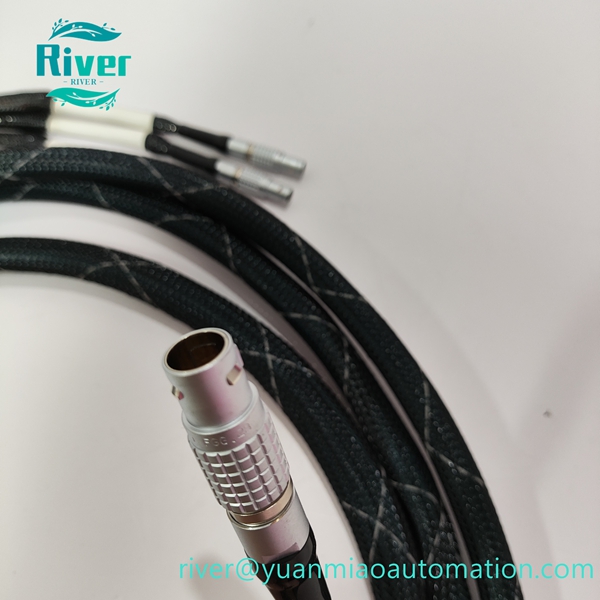

Rockwell TC-302-02-4M0 belongs to the Trusted T8000 safety instrument system series. It is a factory pre-assembled remote expander cable with 4-meter length, designed to transmit PECL high-speed signals between T8312 expander interface module and T8314 fibre transceiver unit. The shielded cable assembly comes with dedicated matching connectors, guaranteeing stable signal integrity, widely used in safety control systems for power, petrochemical and chemical industries.

Key Features

• Factory pre-terminated cable assembly, length 4 meters
• Specialized for Rockwell Trusted T8000 SIS system
• Supports high-speed PECL signal transmission at 250 Mbit/s
• Heavy-duty shielded construction, strong anti-electromagnetic interference
• Custom dedicated connectors for quick plug and play
• Rugged braided outer sleeve, abrasion resistance for cabinet wiring
• Strictly tested for safety system long-term stable operation

• Designed for connection between T8312 and T8314

•


Technical Specifications

• Model: TC-302-02-4M0
• Product Type: Trusted Remote Expander Cable
• Cable Length: 4M
• Signal Type: PECL differential signal
• Transmission Rate: 250 Mbit/s
• Outer Jacket: Braided protective sleeve
• Compatible Devices: T8312, T8314
• Operating Temperature: -40℃ ~ +85℃

• Application: Safety instrument system cabinet internal connection

•


Compatibility & Application

Compatible with Rockwell Trusted T8000 safety system, matching T8312 expander interface module and T8314 fibre TX/RX unit. Applied in power plant, oil & gas, chemical SIS safety control system, remote expansion cabinet communication connection.
