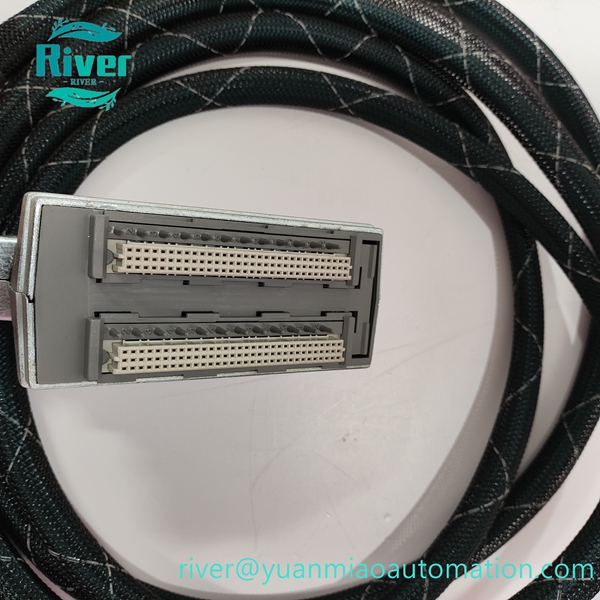

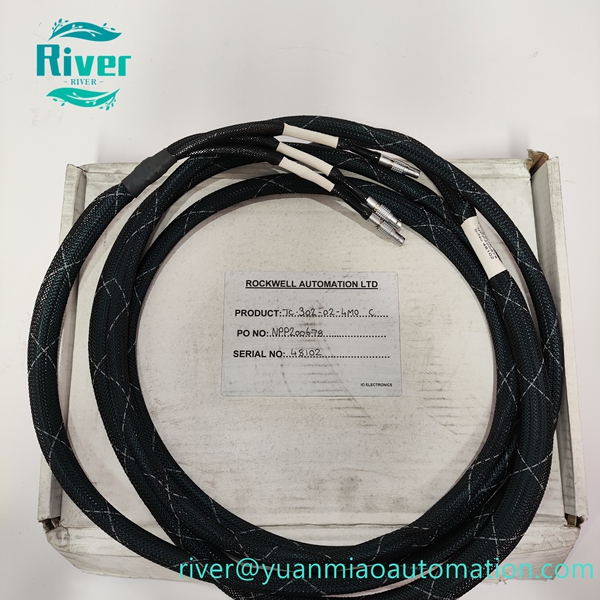

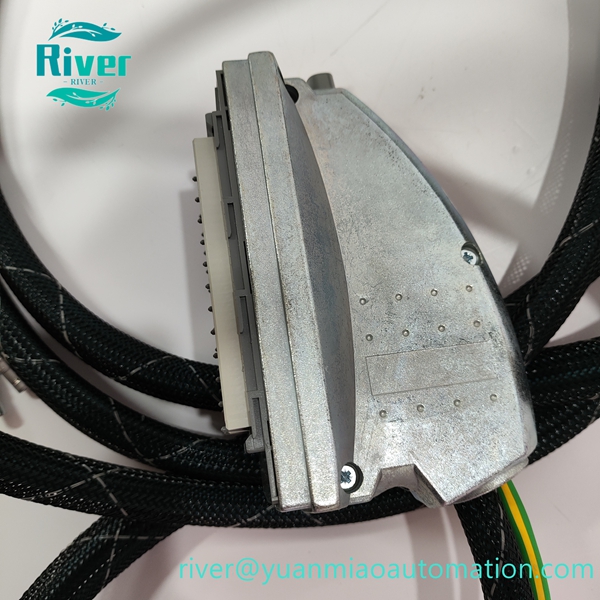

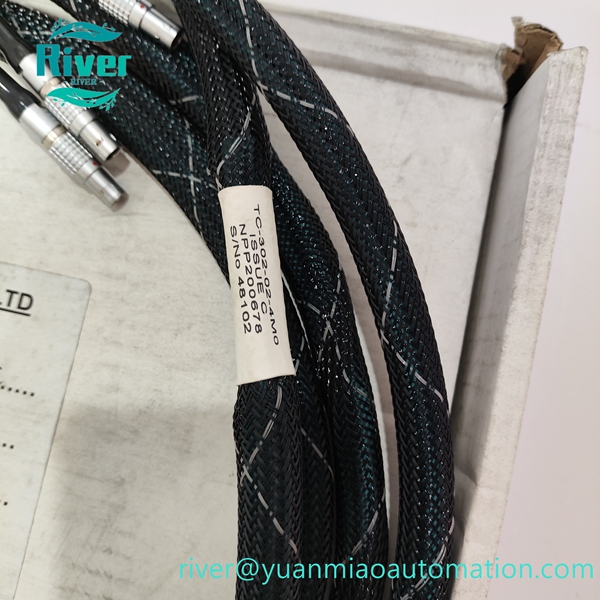

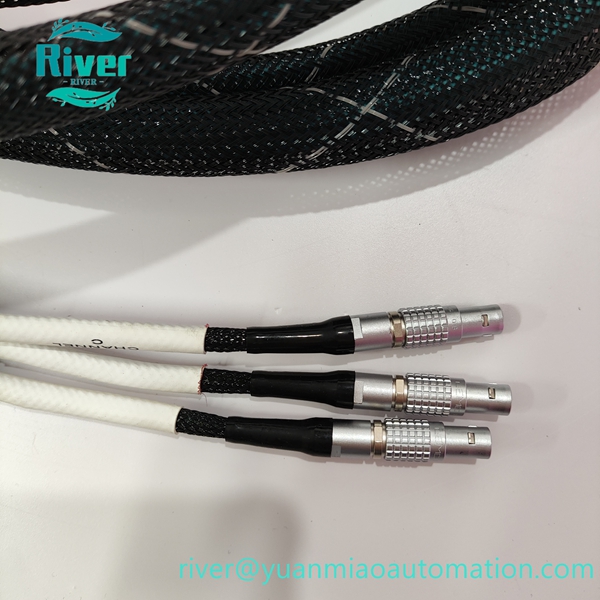

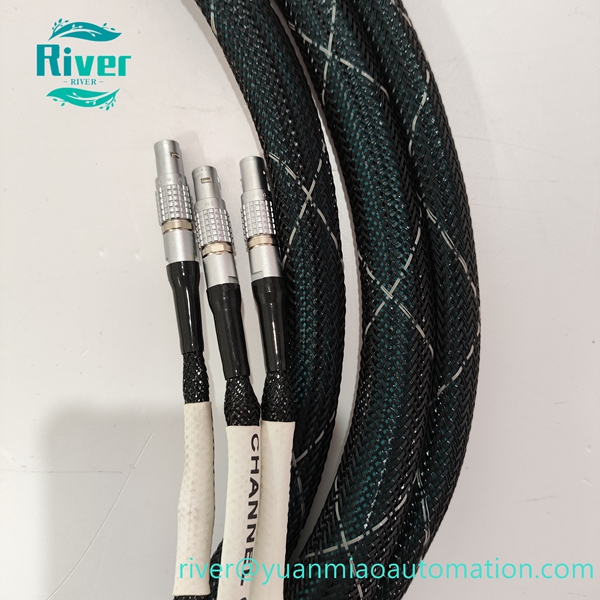

Rockwell TC-303-02-4M0 Trusted Remote Expander Incoming Cable 4 Meter

Short Description:

Rockwell TC-303-02-4M0 is a 4-meter LSZH pre-terminated remote expander incoming

Send email to us

Product Detail

Rockwell TC-303-02-4M0 is a 4-meter LSZH pre-terminated remote expander incoming cable for Rockwell Trusted T8000 safety system, used to transmit PECL high-speed signals from T8314 fibre TX/RX unit back to T8310 expander processor.

Product Overview

Rockwell TC-303-02-4M0 belongs to the Trusted T8000 safety instrument system series. It is a factory pre-assembled 4-meter incoming remote expander cable with low smoke zero halogen (LSZH) sheath. It transmits 250Mbps PECL differential signals from T8314 fibre transceiver unit to T8310 expander processor. Equipped with dedicated matched connectors and shielded structure to maintain signal integrity, widely used in triple modular redundant safety control systems of power, petrochemical and chemical industries.

Key Features

Factory pre-terminated cable assembly, length 4 meters
LSZH low smoke zero halogen cable jacket, flame retardant to IEC 60332-3 Cat A
Specialized for Rockwell Trusted T8000 SIS remote expansion communication
250 Mbit/s high-speed PECL differential signal transmission
Full shielded twisted pair design, strong anti-electromagnetic interference
Custom dedicated connectors for fast plug-and-play installation
Rigidly tested to meet long-term stable operation requirements of safety systems
Designed for connection between T8314 fibre TX/RX unit and T8310 expander processor

Technical Specifications

Model: TC-303-02-4M0
Product Type: Trusted Remote Expander Incoming Cable
Cable Length: 4M
Cable Sheath: LSZH Low Smoke Zero Halogen
Signal Type: PECL differential signal
Transmission Rate: 250 Mbit/s
Matching Devices: T8314, T8310
Operating Temperature: -40℃ ~ +85℃
Application: Safety instrument system cabinet internal high-speed signal connection

Compatibility & Application

Compatible with Rockwell Trusted T8000 safety system, matching T8314 fibre TX/RX unit and T8310 expander processor. Applied in power plant, oil & gas, chemical SIS safety control system, remote expansion cabinet high-speed backhaul signal connection.
