EMERSON 1C31113G01 is an 8-channel low level analog input module for Emerson Ovation DCS system, designed for ±20mV low-level signal acquisition, with 13-bit high resolution and channel isolation, widely used in power plant process monitoring.

Product Overview

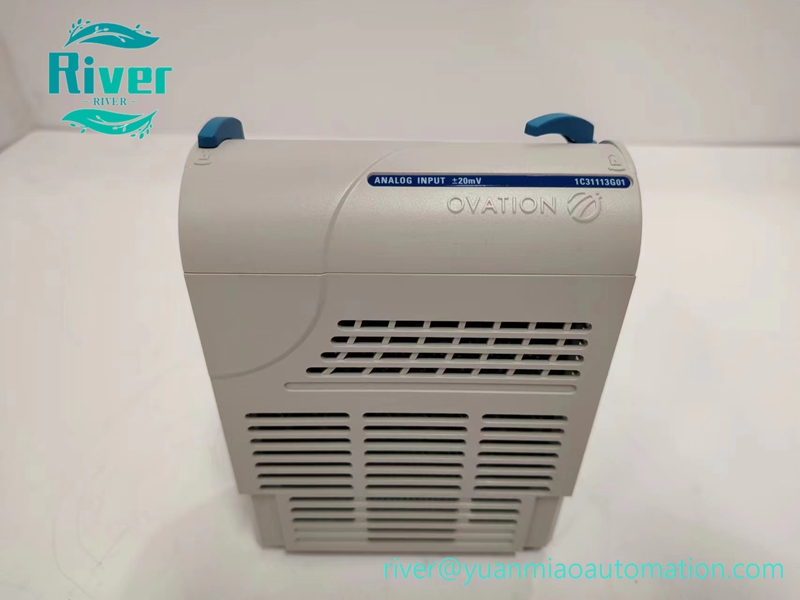

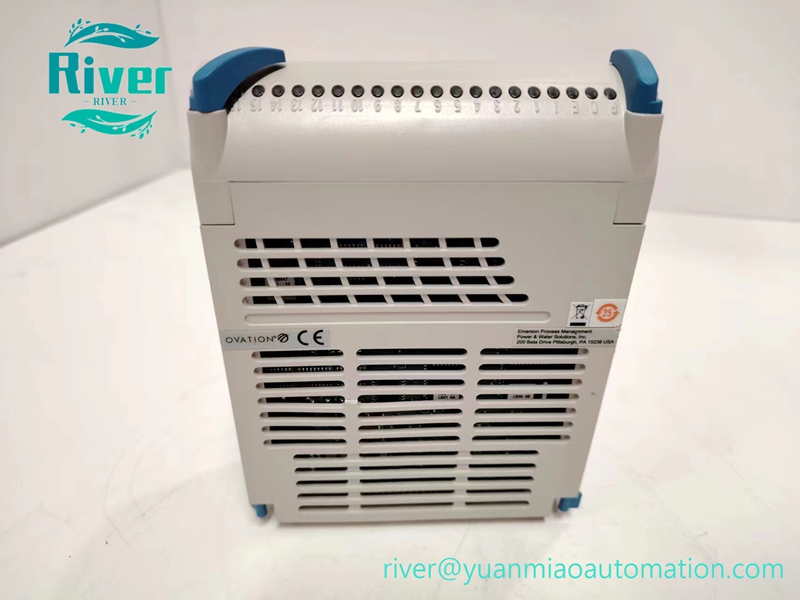

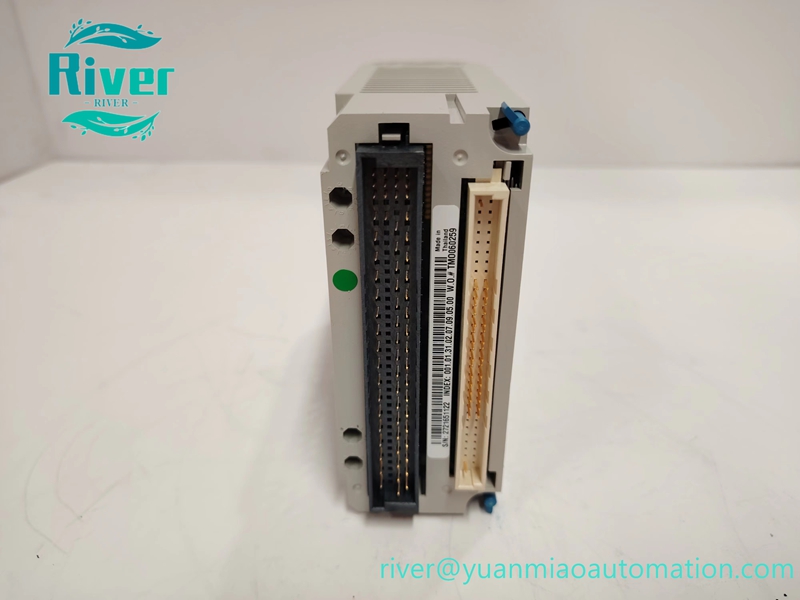

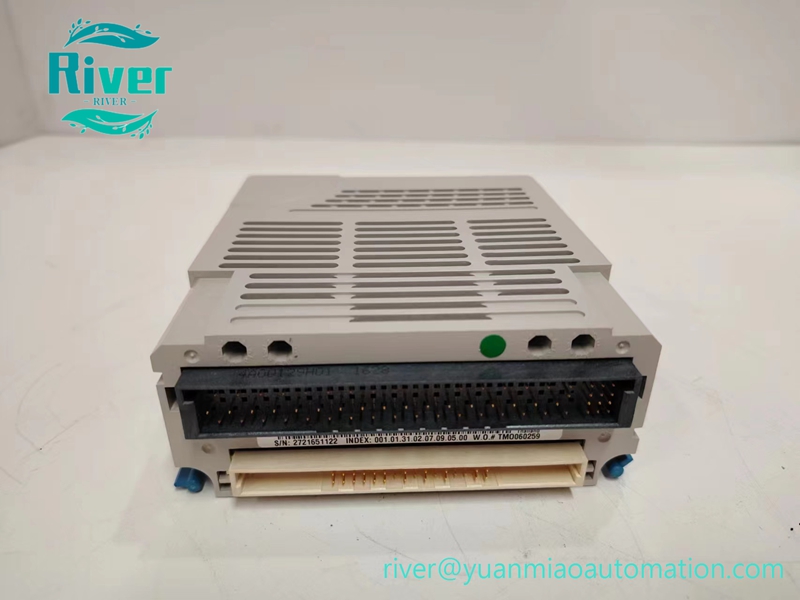

EMERSON 1C31113G01 is an analog input I/O module of Emerson Ovation distributed control system. It features 8 isolated channels for collecting ±20mV low-level millivolt signals from field sensors such as thermocouples and strain gauges. The module adopts high-precision 13-bit ADC conversion, transmits acquired data to Ovation controller via backplane bus. It supports hot swap, convenient for online cabinet maintenance, commonly used in thermal power, petrochemical and other large process control systems.

Key Features

• 8 isolated analog input channels for low-level millivolt signal
• Input range: ±20mV, suitable for thermocouple and strain sensor signals
• 13-bit high resolution ADC for precise signal measurement
• Channel-to-channel isolation to suppress crosstalk interference
• Hot-swappable design, no system shutdown during replacement
• Communicate with Ovation controller through backplane bus
• Built-in self-diagnosis function for channel fault detection
• Compact Ovation standard I/O module form factor

• Rugged design adapted to industrial cabinet environment

•


Technical Specifications

• Model: 1C31113G01
• Brand: Emerson
• Product Type: Low Level Analog Input Module
• System Series: Ovation DCS
• Channels: 8 isolated channels
• Input Signal: ±20mV low level millivolt signal
• ADC Resolution: 13 bit
• Power Supply: +5VDC logic power, +24VDC field power
• Max Power Consumption: ≤8W
• Operating Temperature: -10℃ ~ +60℃
• Storage Temperature: -40℃ ~ +85℃

• Communication: Ovation backplane bus, RS-485

•


Compatibility & Application

Compatible with Emerson Ovation DCS rack, Ovation controller and related I/O modules. Applied in thermal power plant, chemical industry, pulp and paper industry for thermocouple temperature measurement, strain signal collection and process variable monitoring.
