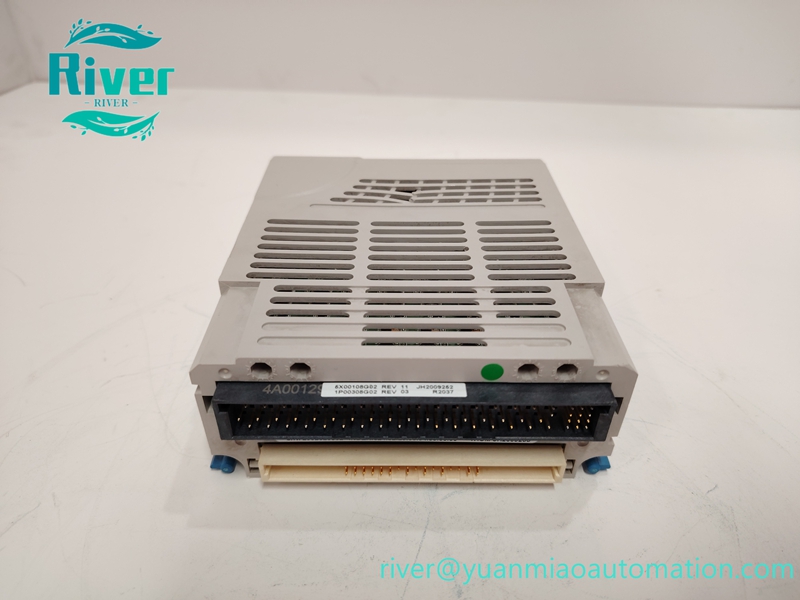

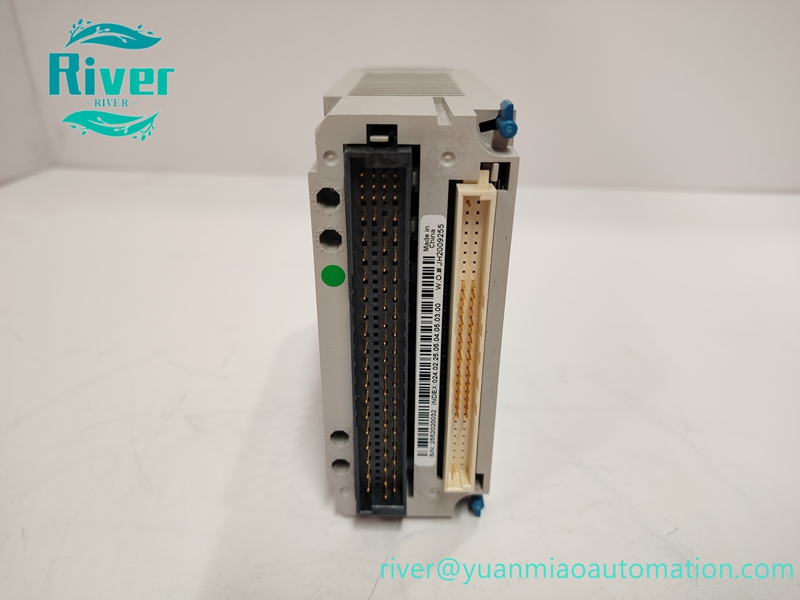

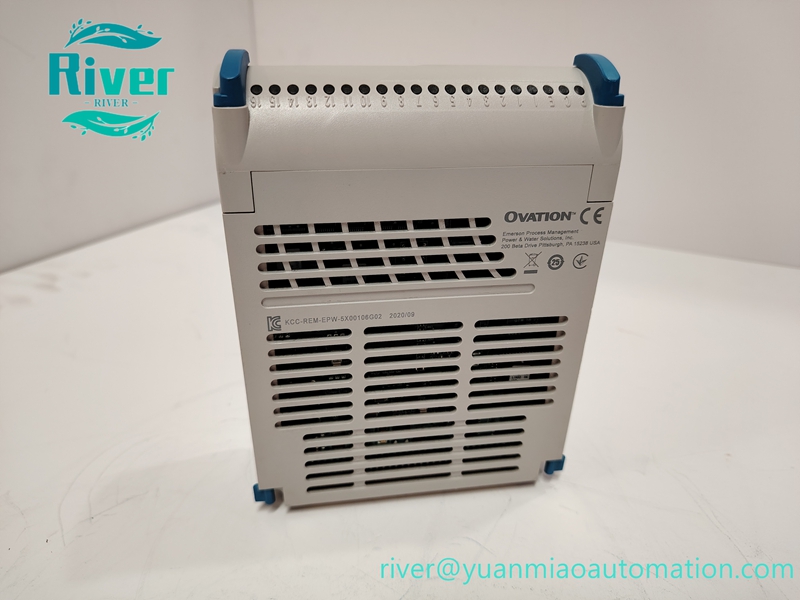

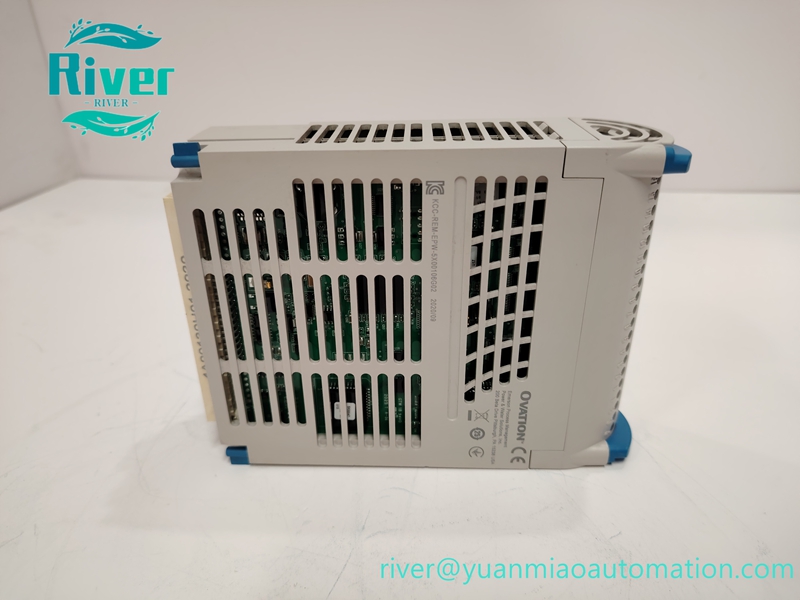

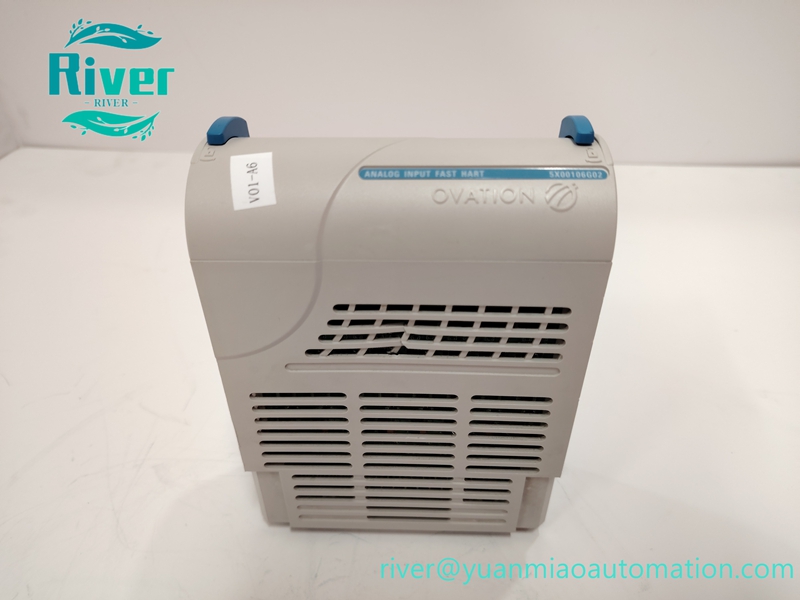

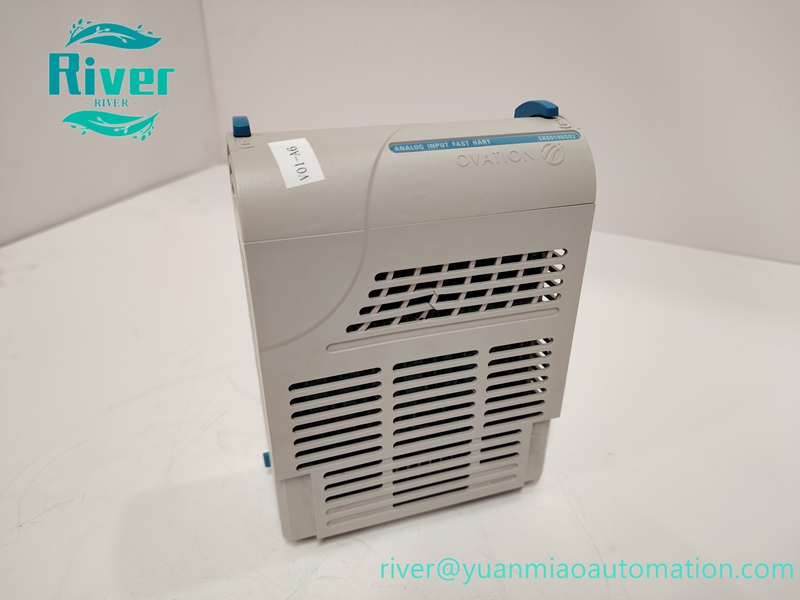

EMERSON 5X00106G02 is an 8-channel HART high-performance analog input module for Emerson Ovation DCS system, supporting 4-20mA signal acquisition with HART communication, galvanic isolation for smart transmitter data reading in power and process industries.

Product Overview

EMERSON 5X00106G02 is a standard I/O module for Emerson Ovation distributed control system. It provides 8 galvanically isolated 4-20mA analog input channels with integrated HART transceivers, capable of collecting analog measurement signals and reading HART diagnostic & parameter data from field smart transmitters. Each channel can be configured for field-powered or locally powered transmitters through onboard jumpers. Data is transmitted to the Ovation controller via the rack backplane bus. It supports hot-swap replacement and built-in channel self-diagnosis, widely deployed in thermal power, chemical and pulp & paper process control systems.

Key Features

• 8 galvanically isolated analog input channels with HART function
• Input range: 4-20mA for standard process transmitters
• Independent HART transceiver on each channel for smart device configuration and diagnostics
• Jumper configurable: field powered or local powered transmitter mode
• Channel-to-channel galvanic isolation, strong anti-interference performance
• Hot-swappable design, online replacement without system shutdown
• Comprehensive self-diagnosis: open circuit, short circuit and fault alarm
• High precision signal sampling for stable process variable measurement

• Designed for standard Ovation I/O rack installation

•


Technical Specifications

• Model: 5X00106G02
• Brand: Emerson
• Product Type: HART Analog Input Module
• System Series: Ovation DCS
• Channel: 8 isolated channels
• Input Signal: 4~20mA
• Communication: HART protocol + Ovation backplane bus
• Isolation: Galvanic isolation per channel
• Power Consumption: Typical 7W
• Operating Temperature: 0℃ ~ +60℃
• Storage Temperature: -40℃ ~ +85℃

• Humidity: 5%~95% non-condensing

•


Compatibility & Application

Compatible with Emerson Ovation DCS rack, Ovation controller and matching terminal boards. Applied in thermal power plant, chemical, pulp and paper industry for pressure, flow, level and temperature smart transmitter signal acquisition, HART device parameter access and process monitoring.
