Bently 3500-93 135785-02C is a system display interface module for Bently Nevada 3500 machinery protection rack, supporting local and remote LCD display, real-time vibration data, alarm and event log viewing, compliant with API 670.

Product Overview:

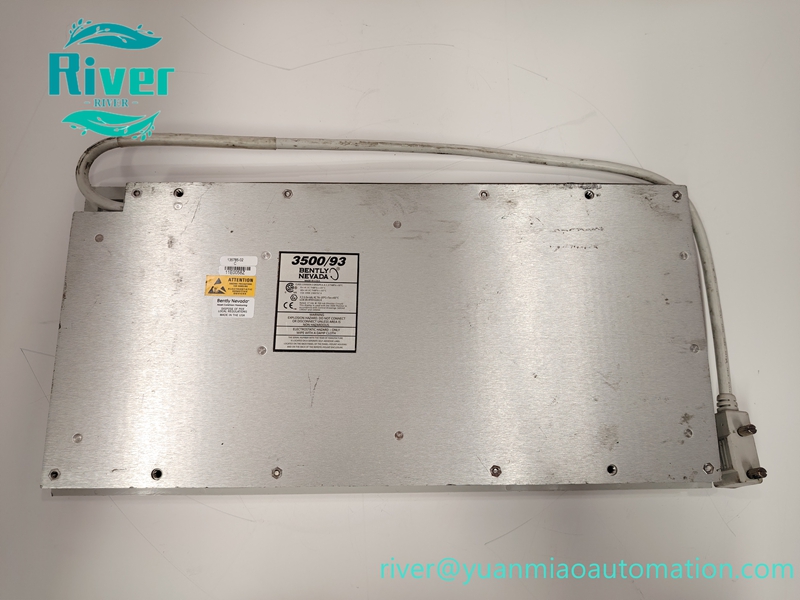

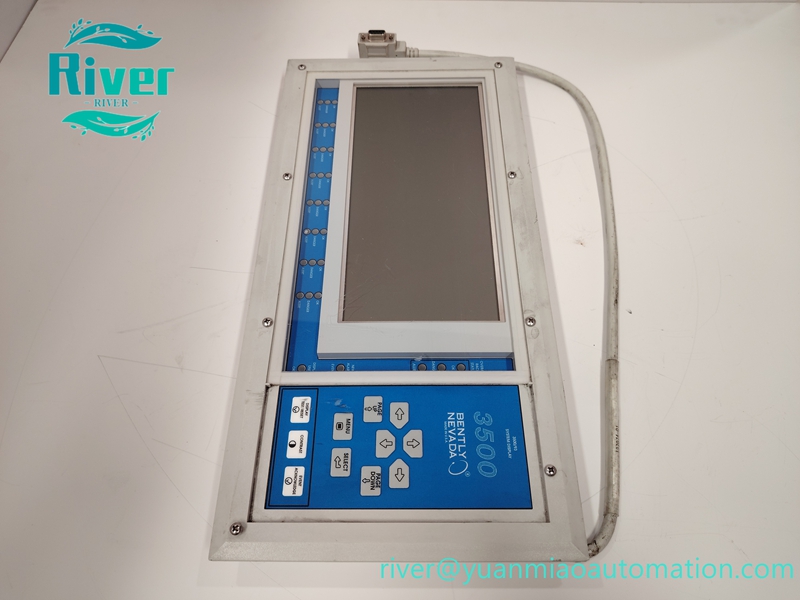

Bently 3500-93 135785-02C is the dedicated display interface module of the Bently Nevada 3500 machinery monitoring and protection system. It collects all channel monitoring data, alarm information and event logs inside the rack, and transmits data to the local or remote display unit via RS422 communication. Operators can view vibration, shaft position, speed and fault status on site without connecting a computer, which facilitates on-site inspection, troubleshooting and maintenance of rotating equipment. One 3500 rack can support up to two 3500/93 display modules.

Key Features:

• System display interface module for 3500 series machinery protection rack
• Real-time display of vibration, gap, speed, alarm and system event records
• RS422 communication between interface module and display unit
• Support rack front mounting or remote cabinet installation
• Compliant with API 670 machinery protection standard
• LED status indicators for operation and fault diagnosis
• Each rack supports maximum 2 sets of display modules

• Easy for on-site maintenance and local machine condition checking

•


Technical Specifications:

• Brand: Bently Nevada
• Model: 3500-93
• Part No: 135785-02C
• Type: System Display Interface Module
• Communication: RS422
• Compatible Rack: Bently 3500 series rack
• Standard: API 670
• Installation: 3500 rack slot mount

• Power Supply: Powered by rack backplane

•


Compatibility & Application:

It is widely used for turbine, compressor, pump and other rotating machinery condition monitoring and protection in power, oil & gas, petrochemical and chemical industries, matched with Bently 3500 series monitoring modules.
