ABB S-093H 3BHB030478R0309

Views :

Update time : 2025-04-27

Scope of Use and Parameter Information of ABB S-093H 3BHB030478R0309

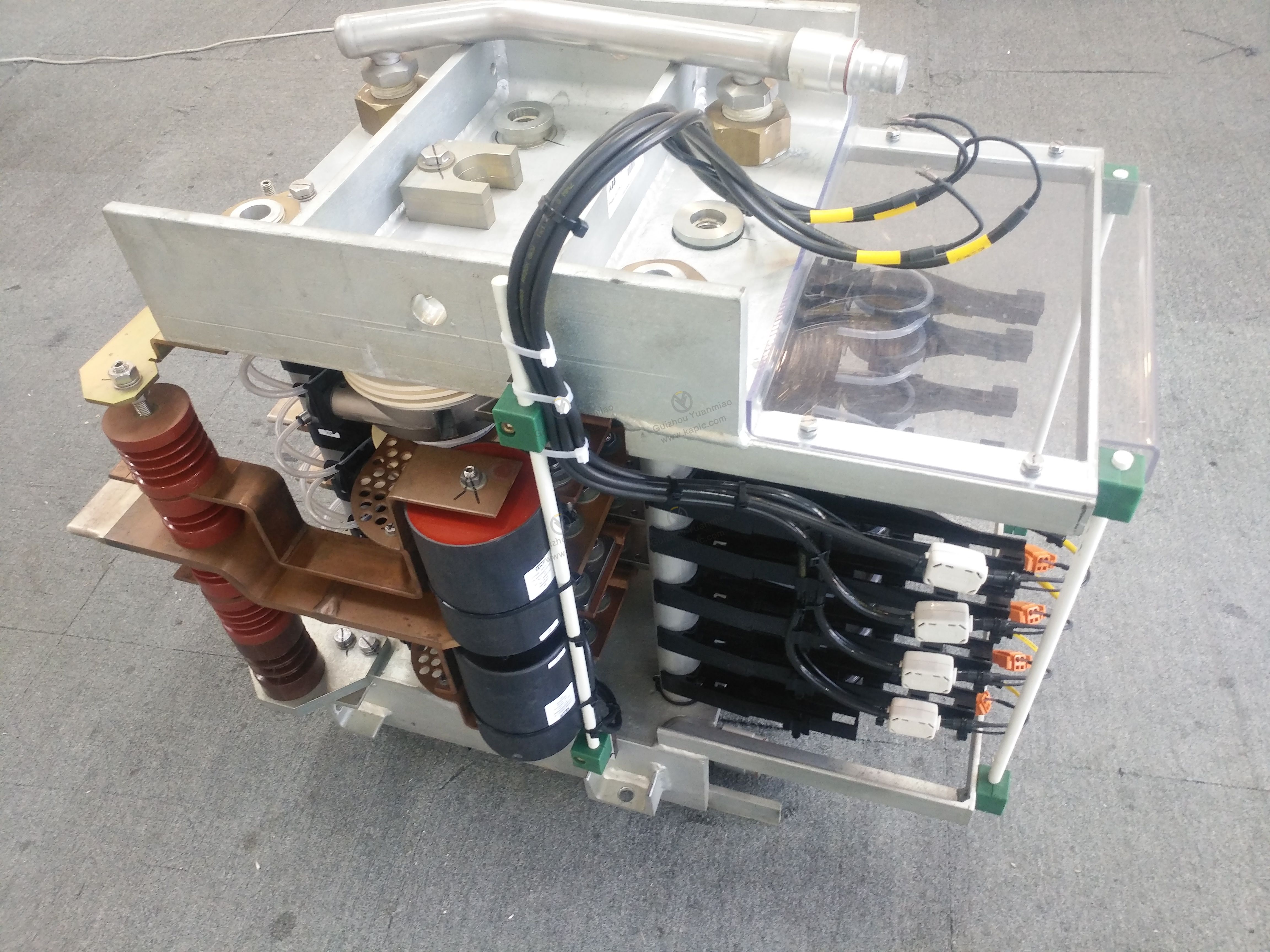

Basic Information: The S-093H 3BHB030478R0309 is a product of ABB, which is a type of phase module and may be used in occasions such as the ACS6000 frequency converter cabinet.
Functional Features:

Redundancy Function: It has power supply and communication redundancy functions, improving the reliability and stability of the system.

Hot Configuration and Hot Swap: It supports hot configuration, allowing configuration during operation. Meanwhile, it has the hot swap function, enabling the replacement of the power supply unit without interrupting the main voltage, which is convenient for maintenance and upgrading.
Diagnostic Function: Excellent configuration and diagnosis can be carried out through FDT/DTM (Field Device Tool/Device Type Manager). It also has an automatic diagnostic function, which can simplify the maintenance work.
Product Parameters:

Weight: Approximately 200kg (Data may vary from different sources).

Communication Standard: It uses the Profibus DP standard to communicate with the control system layer.
Installation Method: It can be directly installed on-site to reduce the wiring cost.
Protection Level: With a G3 coating, all components are protected.
Phase Current Range: Generally, the phase current is required to be greater than or equal to 10A and less than or equal to 63A.
Phase Voltage Range: Usually, the phase voltage is required to be greater than or equal to 380V and less than or equal to 690V.
Phase Resistance Value: Generally, the phase resistance is required to be greater than or equal to 10Ω and less than or equal to 50Ω.
Phase Capacitance Value: Generally, the phase capacitance is required to be greater than or equal to 100nF and less than or equal to 1000nF.
Phase Resistance Temperature Coefficient: Generally, the phase resistance temperature coefficient is required to be greater than or equal to -20%/°C and less than or equal to +10%/°C.
