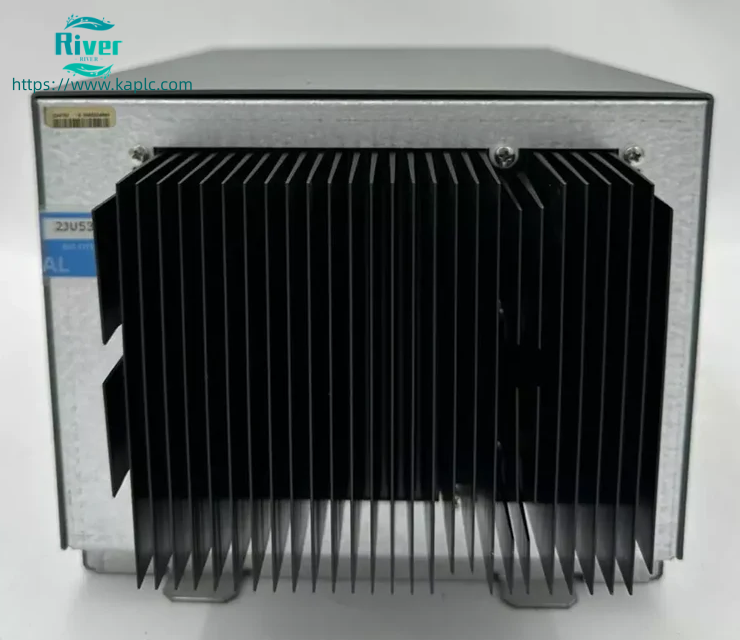

ABB 1TGE120021R0010 is a 16-channel digital input module for AC 800M systems, supporting 24 VDC inputs, 2500 Vrms isolation, hot-swappable, and channel-level diagnostics.

Product Description

ABB 1TGE120021R0010 is a high-reliability 16-channel digital input (DI) module designed for ABB AC 800M controllers, compatible with System 800xA and Symphony Plus platforms. It acquires 24 VDC active or dry contact signals from field devices such as limit switches, pushbuttons, and proximity sensors, ensuring reliable signal transmission in industrial environments.

Key Features

• 16 independent isolated digital input channels

• 24 VDC input range (15–30 VDC for ON, <5 VDC for OFF)

• 2500 Vrms channel-to-backplane isolation for noise immunity

• Response time <1 ms for high-speed signal capture

• Channel-level diagnostics for open/short circuit detection

• Hot-swappable design for non-stop maintenance

• IP20 protection rating for cabinet installation

• Compliant with CE, UL, and IEC 61000-4 standards




Typical Applications

• Power generation (boiler FSSS, turbine control)

• Oil & gas (ESD systems, valve position monitoring)

• Chemical processing (interlock logic, safety systems)

• Water & wastewater (pump control, level monitoring)

• Manufacturing (conveyor systems, machine interlocks)




Supply Information

Condition: New / Original Surplus

Warranty: 12 monthsIn stock for fast global shipping
