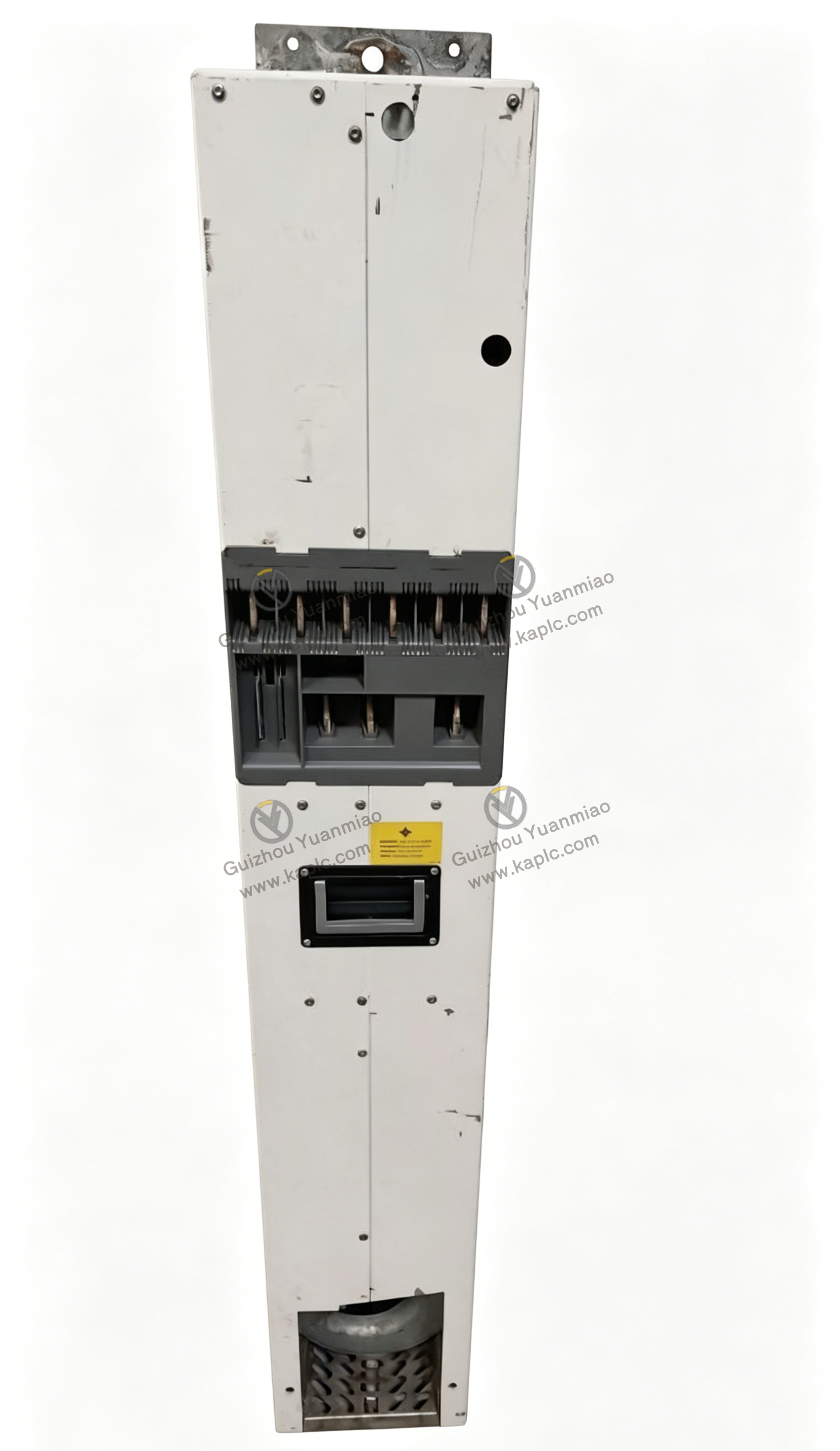

ABB ACS800-704-0910-7+0F253+V992 is a high-power diode supply unit (DSU) for ACS800 drives, rated 910kW, 380–690V AC, with built-in protection and optional features.

Product Description

ABB ACS800-704-0910-7+0F253+V992 is a heavy-duty diode supply unit (DSU) from the ACS800 series, designed to power large industrial motors. It converts three-phase AC input to stable DC power for the inverter modules, forming the front end of a complete variable frequency drive system.This unit is built for continuous operation in harsh industrial environments, offering high efficiency, robust protection, and flexible configuration to meet the demands of high-power applications.

Key Specifications

• Type: Diode Supply Unit (DSU)
• Model: ACS800-704-0910-7
• Rated Power: 910 kW / 910 kVA
• Input Voltage: 3-phase AC 380–690 V, 48–63 Hz
• Rated Input Current: 816 A
• DC Output: 513–932 VDC, 1000 ADC
• Protection Class: IP00 (for cabinet installation)
• Cooling: Forced air
• Ambient Temperature: -15°C to +50°C

• Weight: Approx. 180 kg

•


Option Codes

• +0F253: Standard configuration without external aR-type fast fuses

• +V992: Updated hardware version for units manufactured after June 2010, with upgraded control board and firmware compatibility

•


Core Features

• High-efficiency diode rectification for stable DC bus power

• Built-in overvoltage, overcurrent, short-circuit, and overtemperature protection

• Equipped with DSMB-02C control board for precise monitoring and communication

• Safe Torque Off (STO) function for enhanced safety compliance

• Modular design for easy integration into ACS800 drive systems

• Compatible with a wide range of ACS800 inverter modules for power up to 2800 kW




Typical Applications

• Mining conveyors and crushers

• Metallurgical rolling mills

• Marine and offshore propulsion systems

• Large pumps, fans, and compressors in power plants

• Heavy industrial machinery requiring high-power variable speed control




Supply Information

Condition: New / Original surplus

Warranty: 12 monthsIn stock for fast worldwide shipping
