Product Overview

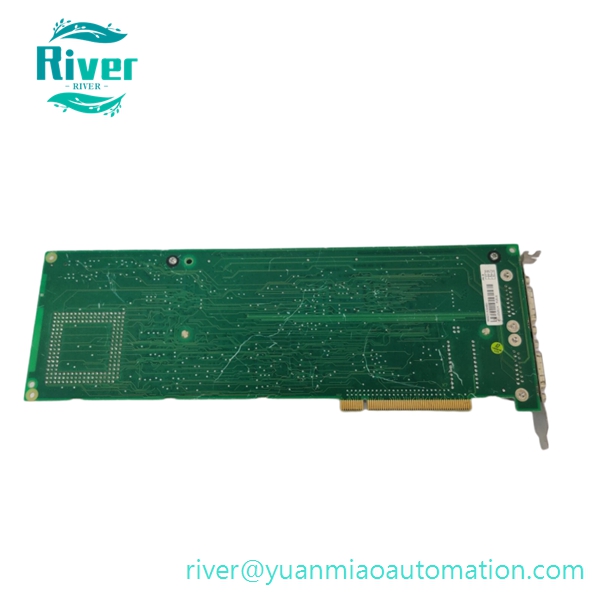

• PN:PU516｜Alternate No:3BSE013064R1｜Brand:ABB｜Series:Advant OCS DCS｜Type:PCI MB300 Engineering Interface Board

• Definition:5V 32-bit PCI bus engineering accelerator card exclusively for ABB classic Advant OCS distributed control system, installed in DCS configuration workstations, connects PC host with Advant controller via proprietary MB300 bus, realizes project programming, parameter download, online monitoring, fault diagnosis and historical data upload, core matching spare for aging DCS engineering workstation overhaul and communication card failure replacement

•


Core Features

• Standard 33MHz 32-bit 5V PCI interface, plug-and-play installation for industrial control PC workstations
• Dual communication ports: dedicated MB300 bus port + RS232 serial port, supports ABB exclusive MB300 protocol and standard serial debugging
• Onboard 16MB independent high-speed memory, stable processing for large-scale DCS project download and real-time data collection without lag
• Built-in signal isolation and surge suppression circuit, anti-interference for power, petrochemical, metallurgy harsh industrial control room environment
• Onboard running and communication status LED indicators for quick onsite link troubleshooting

• Compact half-length PCI card structure, occupies minimal chassis space for multi-card workstation expansion

•


Technical Specs

• Bus standard:32-bit 5V PCI, 33MHz clock frequency
• Communication interface:1×MB300 bus port, 1×RS232 serial port
• Onboard memory:16MB
• Operating temp:0℃~+60℃｜Storage:-40℃~+85℃,RH5%~95% non-condensing
• Net weight:0.38kg｜Dimension:170×105×20mm
• HS Code:85389091

• Certification:CE, UL certified

•


Compatibility

Perfectly matched with ABB Advant OCS / Advant Master DCS system, compatible with DSPC170 CPU, DSBB175 backplane, S400/S600 I/O stations and CI520V1 communication modules; incompatible with S800 I/O, 800xA DCS, AC500 PLC and ACS series inverters

Application

• Spare replacement for Advant DCS configuration workstation communication card damage in thermal power, chemical, papermaking factories

• DCS system project programming, online monitoring and fault diagnosis workstation hardware renovation for continuous process production lines

•


Our Advantage

• Full PCI bus, MB300 communication continuous aging testing before shipment
• 12-month global warranty for all stocked products
• DHL/Fedex worldwide door-to-door delivery
• Free technical support for workstation PCI slot matching, MB300 bus wiring and project download debugging
