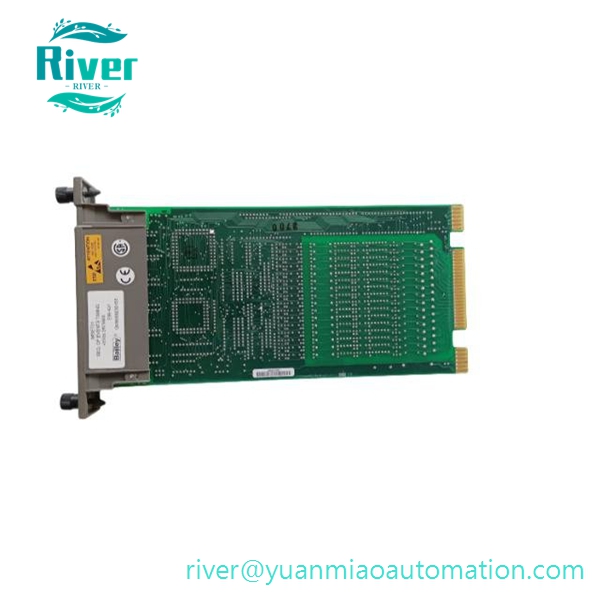

IMSET01 ABB Bailey Symphony INFI90 SOE Time Synchronization Module Original In Stock

Master time keeper card for sequence of event recording, fully tested, 12-month

Send email to us

Product Detail

Master time keeper card for sequence of event recording, fully tested, 12-month global warranty for power plant DCS cabinet spare replacement

PN: IMSET01
Brand: ABB Bailey
Series: Symphony INFI90 Harmony DCS
Type: SOE Time Synchronization Master Module
Used as the system central time reference, receives external GPS or IRIG-B clock signals, distributes unified high-precision time to all SOE slave modules for fault event sequence recording and post-failure analysis

Supports 1ms high-precision hardware timestamping, accurately records the occurrence time of field switch state changes
Equipped with 16-channel digital signal acquisition, works with IMSED01 to collect distributed event signals
Rack hot-swap design, allows online replacement without interrupting system operation
Front panel LED indicators for module running status, time synchronization lock and fault alarm
Built-in hardware clock backup, prevents time deviation during temporary power outage

Matched system: ABB INFI90, Symphony Plus DCS platform
Matching modules: IMSED01, INSOE01, IMMFP series main processor cards
Not compatible with AC800M, Freelance DCS, S800 I/O and third-party PLC backplanes

Fault sequence recording for thermal power plant boiler, turbine and auxiliary equipment
Precise time synchronization for substation, petrochemical and papermaking DCS systems
Accident cause tracing and equipment abnormal event chronological analysis
Spare replacement and system upgrade for aging INFI90 control cabinets

Full time synchronization accuracy test and channel signal aging test before delivery
12-month warranty for new original and refurbished spare parts
Global DHL, Fedex door-to-door delivery, FOB Xiamen available
Free technical support for clock wiring, time parameter configuration and SOE fault troubleshooting
