Product Overview

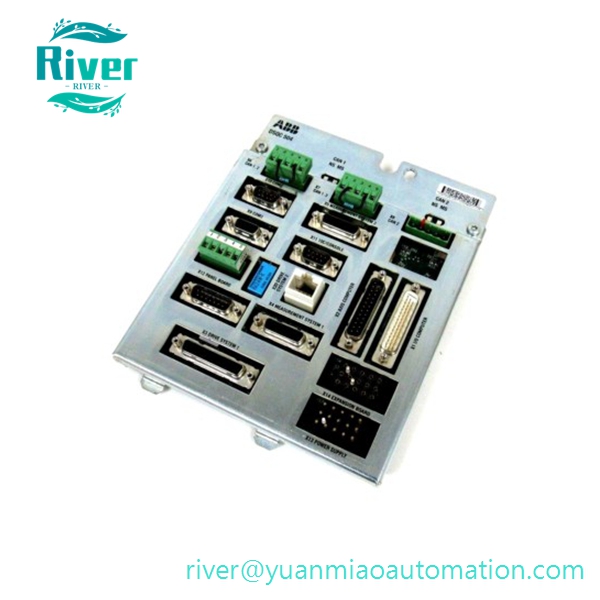

• Part No: DSQC504, full part number 3HAC5689-1
• Brand: ABB Robotics
• Applicable Controller: IRC5 robot control cabinet
• Type: Passive base connection unit, cabinet multi-signal terminal transfer panel

• Function


  Centralize all internal cabinet wiring; integrate DB serial ports, terminal terminals and power interfaces. Realize cross connection among mainboard, drive boards, safety modules, teach pendant and external I/O; organize messy wiring and unify signal routing inside cabinet.

•


Core Features

• Multiple DB9/DB25 serial ports + spring terminal blocks integrated
• Anti-misplug interface design, avoid wrong wiring damage
• Conformal coated PCB, anti-dust, moisture-proof and anti-electromagnetic interference
• Metal housing shock resistance, adapt long-term vibration in workshop
• Clear printed port labels for quick troubleshooting and wiring maintenance
• Passive connection board without operational chips, stable failure rate

Technical Specifications

• Supply Voltage: 24VDC
• Working Temperature: -25℃ ~ 60℃
• Protection Grade: IP20 (cabinet internal installation only)
• HS Code: 85389091

• Supply: New original & fully tested refurbished available

•


Compatibility

• Matches all standard IRC5 controller cabinets
• Fits mainstream IRB series welding, handling, painting robots

• Direct one-to-one replacement for identical part number

•


Application

• IRC5 cabinet wiring aging replacement
• Signal intermittent failure troubleshooting maintenance
• Automobile workshop robot regular overhaul spare part
